Installing an LG Window Air Conditioner Dual Inverter is simpler than you think, even if you’re a beginner. This guide walks you through every step—from choosing the right window to final testing—ensuring a safe, efficient setup that maximizes cooling and energy savings.
Key Takeaways
Choose the right window: Pick a sturdy, properly sized window that supports the unit’s weight and allows for secure mounting.
Measure twice, install once: Accurate measurements prevent gaps and air leaks, improving efficiency and reducing energy bills.
Use the included mounting kit: LG provides brackets and seals—use them to ensure a tight, weatherproof fit.
Prioritize electrical safety: Plug into a dedicated outlet with proper grounding; avoid extension cords.
Test and adjust settings: Run a test cycle and fine-tune temperature and fan speed for optimal comfort.
Maintain regularly: Clean filters monthly and inspect seals annually to keep your Dual Inverter running smoothly.
Leverage smart features: Connect to the LG ThinQ app for remote control, scheduling, and energy monitoring.
Introduction: Why Choose an LG Window Air Conditioner Dual Inverter?
If you’re looking for a quiet, energy-efficient way to cool your home in 2026, the LG Window Air Conditioner Dual Inverter is a top choice. Thanks to its advanced Dual Inverter Compressor technology, this unit uses up to 70% less energy than conventional models while delivering consistent cooling—even on scorching summer days. Plus, it operates at whisper-quiet levels, so you can sleep, work, or relax without annoying hums or rattles.
In this guide, you’ll learn how to install your LG Dual Inverter window AC safely and correctly. Whether you’re replacing an old unit or setting up your first air conditioner, we’ll walk you through every step—from prep work to final testing. By the end, you’ll have a perfectly installed AC that keeps your space cool, saves energy, and lasts for years.
Step 1: Gather Your Tools and Materials
Before you begin, make sure you have everything you need. Most LG Dual Inverter window AC units come with a mounting kit, but you’ll still need a few basic tools.

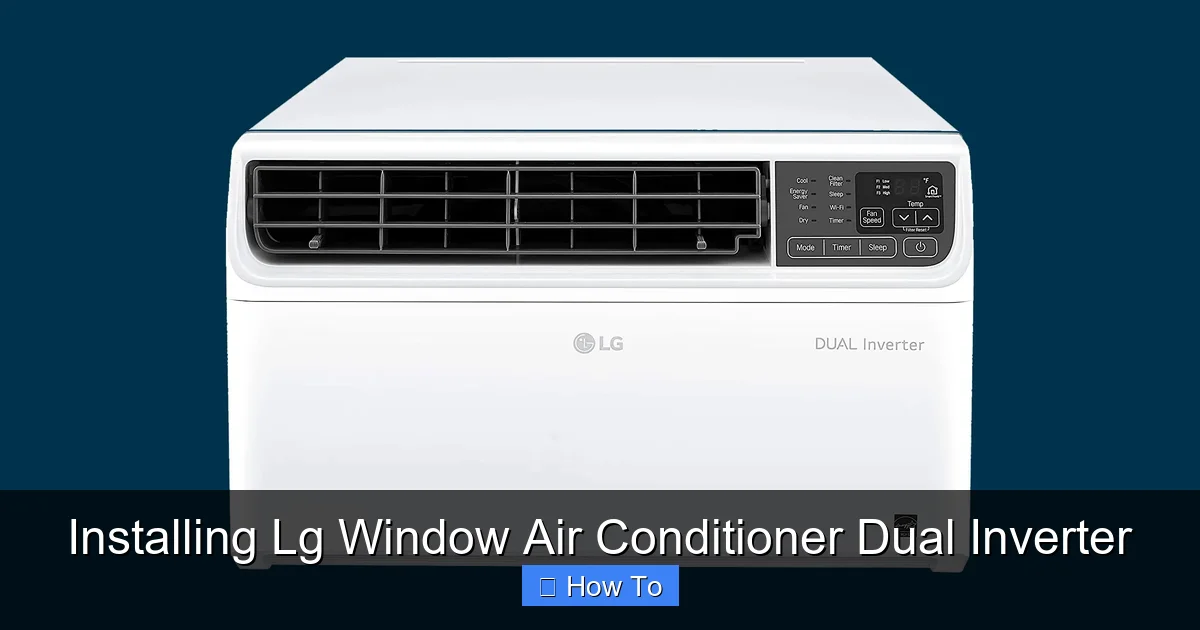

LG Dual Inverter window AC mounted in a double-hung window
Visual guide about Installing Lg Window Air Conditioner Dual Inverter
Image source: media.wired.com
What’s Included in the Box?
LG Window Air Conditioner Dual Inverter unit
Window mounting brackets
Foam insulation panels
Sash locks and support brackets
User manual and warranty card
Remote control with batteries
Tools You’ll Need
Tape measure
Level
Screwdriver (Phillips and flathead)
Drill (optional, for securing brackets)
Pencil or marker
Safety gloves and goggles
Pro Tip: If your window frame is made of wood, you may need wood screws. For vinyl or metal frames, use the provided self-tapping screws. Always check your window type before drilling.
Choosing the right capacity is just as important as gathering tools. If you’re unsure what BTU rating matches your room size, our guide on selecting the proper BTU capacity walks through the calculation step by step.
Step 2: Choose the Right Window and Location
Not all windows are created equal when it comes to AC installation. The ideal window should meet a few key criteria.
Window Requirements
Size: The window opening must be slightly larger than the AC unit’s dimensions (check your model’s specs). Most LG Dual Inverter units fit windows 23–40 inches wide and 14–20 inches high.
Strength: The frame must support the unit’s weight (typically 60–80 lbs). Avoid old, rotting, or weak frames.
Accessibility: Choose a window that’s easy to reach from inside and outside (if possible) for installation and future maintenance.
Electrical Access: Ensure there’s a nearby grounded outlet within 6 feet of the window. Never use extension cords—they can overheat and pose a fire risk.
Example: A double-hung window on the south side of your living room is ideal—it gets afternoon sun (so cooling is needed) and has a solid frame with easy access to an outlet.
Window Type Compatibility Details
Double-hung, single-hung, and sliding windows are the most common styles that accommodate LG’s mounting kit. Casement or awning windows typically require a different bracket set or a through-the-wall installation. If you have a non-standard window, consult the LG installation manual for approved accessories or consider a portable unit instead. In practice, a common mistake is assuming any window will work—always verify the sash depth and track width before purchasing.
Local building codes may dictate bracket specifications, especially in high-rise or coastal areas. For example, New York City has specific requirements for window AC brackets; you can review those local bracket requirements to ensure compliance.
Step 3: Measure and Prepare the Window Opening
Accurate measurements are crucial for a snug, energy-efficient fit. A poorly sealed unit lets cool air escape and hot air sneak in, wasting energy and money.
How to Measure Correctly
Open the window and measure the width from inside edge to inside edge.
Measure the height from the windowsill to the top of the opening.
Compare these to your AC unit’s dimensions (found in the manual or on the LG website).
If the opening is too wide, you’ll use the included foam side panels to fill gaps.
Prepare the Window
Clean the windowsill and frame to remove dirt, dust, or old sealant.
Remove any obstructions like blinds, curtains, or window guards.
Check that the window opens and closes smoothly—you’ll need to lower it onto the AC unit during installation.
Safety Note: Always wear gloves when handling sharp edges or old seals. If your window is high up, consider having a helper or using a step ladder with a stabilizer.
Measuring Tips for Irregular Openings
If your window frame is not perfectly rectangular, take three width measurements (top, middle, bottom) and three height measurements (left, center, right). Use the smallest width and smallest height as your effective opening size. This ensures the side panels and weatherstripping can compensate for any unevenness. A metal tape measure is more reliable than a cloth one for this task.
Step 4: Install the Mounting Brackets
LG’s mounting system is designed for stability and ease. The brackets support the unit’s weight and prevent it from tipping forward.
Attach the Support Brackets
Place the AC unit (still in the box or on a soft surface) in front of the window to visualize placement.
Slide the side brackets into the grooves on the bottom of the unit.
Position the brackets so they extend just beyond the window frame when the AC is installed.
Use a level to ensure the brackets are even—this prevents water from pooling inside.
Secure the brackets to the unit using the provided screws.
Secure to the Windowsill
Lower the window sash slightly to create a gap.
Slide the brackets under the sash and onto the windowsill.
Use screws to attach the brackets to the sill (wood) or frame (vinyl/metal). Drill pilot holes first to avoid cracking.
Double-check that the brackets are level and firmly anchored.
Pro Tip: If your windowsill is sloped, use the adjustable feet on the brackets to level the unit. A level AC drains condensation properly and runs more efficiently.
Bracket Adjustment for Sloped Sills
Many older homes have sills that slope outward for water runoff. LG’s brackets include threaded leveling feet; turn them until the bubble level reads true. If the slope exceeds the feet’s range, shim the bracket with pressure-treated wood strips before securing. This extra step prevents the unit from leaning forward, which can cause drainage issues and compressor strain over time.
Step 5: Install the Air Conditioner Unit
Now it’s time to lift the AC into place. This step requires care—AC units are heavy and awkward to handle.
Lift and Position the Unit
With a helper, lift the AC unit from the sides (never by the front panel or vents).
Carefully slide it into the window opening, resting it on the support brackets.
Lower the window sash until it sits snugly on top of the unit.
Ensure the unit is centered and level.
Secure the Unit
Use the included sash locks to fasten the upper and lower window sashes together. This prevents the window from being opened from the outside.
Attach the foam side panels to fill any gaps between the unit and window frame. Trim them with scissors if needed.
Seal edges with weatherstripping or silicone caulk for extra insulation (optional but recommended).
Safety Reminder: Never install an AC unit alone if it weighs over 50 lbs. Ask a friend or family member to help—your back will thank you!
Lifting Techniques for Heavy Units
For units over 70 lbs, use a sturdy board as a temporary ramp from the sill to the brackets. Slide the unit up the ramp rather than lifting vertically. Keep your knees bent, back straight, and grip the chassis rails—not the louvers. If you’re installing solo, consider a window AC support bracket that transfers weight to the exterior wall, reducing the load on the sill.
Step 6: Connect Power and Test the Unit
With the unit securely in place, it’s time to plug it in and make sure everything works.
Electrical Setup
Plug the AC directly into a dedicated 120V grounded outlet.
Ensure the circuit breaker is rated for the unit’s amperage (usually 15–20 amps).
Do not use power strips or extension cords—they can overheat and cause fires.
First-Time Startup
Turn on the unit using the power button or remote.
Set the mode to “Cool” and adjust the temperature to 72°F (22°C).
Listen for the Dual Inverter Compressor—it should start quietly and ramp up smoothly.
Check that air is blowing from the vents and that the unit isn’t vibrating or making unusual noises.
Pro Tip: Run the unit for 10–15 minutes and feel the air temperature. If it’s not cooling, check the filter (it may be dirty or blocked) or ensure the unit isn’t in “Energy Saver” mode.
Electrical Circuit Verification
Before the first startup, verify the outlet is on a dedicated circuit by turning off the breaker and confirming no other outlets lose power. The U.S. Department of Energy recommends a dedicated 15‑amp circuit for most window units; larger models may need 20 amps. If you’re uncertain, consult a licensed electrician—this is not a step to guess on. For more on diagnosing electrical-related cooling problems, see our article on diagnosing warm air issues.
Step 7: Optimize Settings and Use Smart Features
Your LG Dual Inverter AC comes with advanced features that enhance comfort and efficiency.
Use the Remote and App
Download the LG ThinQ app (available on iOS and Android).
Connect your AC to Wi-Fi using the app’s setup wizard.
Control temperature, fan speed, and schedules from your phone—even when you’re away.
Enable “Smart Diagnosis” to get alerts for maintenance or issues.
Recommended Settings for 2026
Temperature: Set to 74°F (23°C) when home, 78°F (26°C) when away—this balances comfort and energy savings.
Fan Speed: Use “Auto” for quiet, efficient operation.
Mode: “Cool” for standard use, “Dry” for humid days, “Fan Only” for ventilation.
Advanced Smart Features
Beyond basic scheduling, the ThinQ app integrates with Google Assistant and Amazon Alexa for voice control. You can also set geofencing rules so the AC turns on when you’re nearing home. Energy‑monitoring dashboards show daily kWh usage, helping you spot anomalies early. For a deeper dive into optimal temperature strategies, refer to our guide on optimal temperature settings.
Want to compare window units with other cooling options? See our guide on selecting the proper BTU capacity.
Seasonal Removal and Storage
When the cooling season ends, proper removal extends the unit’s lifespan. First, run the unit in “Fan Only” mode for a few hours to dry internal components. Unplug, remove the sash locks, and carefully lift the AC out with a helper. Clean the filter and coils, then store the unit upright in a dry, temperature‑controlled space. Cover it with a breathable fabric cover—not plastic—to prevent moisture buildup. Reinstall the window sash locks and store all brackets and hardware in a labeled bag for next year.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix them.
Unit Won’t Turn On
Check the power cord and outlet. Try plugging in another device.
Ensure the circuit breaker hasn’t tripped.
Verify the remote has working batteries.
Not Cooling Enough
Clean or replace the air filter (dirty filters block airflow).
Make sure vents aren’t blocked by furniture or curtains.
Check for gaps around the unit—seal them with foam or caulk.
Loud or Rattling Noises
Ensure the unit is level and securely mounted.
Tighten any loose screws or brackets.
Remove debris from the fan or vents.
Water Leaking Inside
Check that the unit is tilted slightly backward (about 1/4 inch) for proper drainage.
Ensure the window seal is tight to prevent condensation buildup.
Year‑round upkeep prevents many of these issues. Our year-round upkeep schedule covers coil cleaning, seal inspection, and off‑season storage in detail.
Frequently Asked Questions
How do I know if my window can support the weight of an LG Dual Inverter unit?
Most modern double‑hung windows handle 60–80 lbs if the frame is sound. Inspect for rot, cracks, or loose glazing; reinforce with a support bracket if unsure.
Can I install the LG Dual Inverter in a sliding window?
Yes, but you’ll need the optional sliding‑window installation kit (LG part number varies by model). The standard brackets are designed for vertical sashes.
What size circuit breaker do I need for a 12,000 BTU LG Dual Inverter?
A dedicated 15‑amp, 120V circuit is standard. Larger 18,000+ BTU models may require a 20‑amp circuit—check the nameplate for exact amperage.
How often should I clean the air filter during heavy use?
Monthly cleaning is recommended. In dusty environments or homes with pets, check every two weeks and rinse with mild soap and water.
Does the LG ThinQ app work without Wi‑Fi?
No, the app requires a 2.4 GHz Wi‑Fi connection. The remote control handles basic functions offline.
Why is my unit dripping water inside the room?
The unit must tilt slightly outward (¼ inch) for condensate to drain. Verify the rear drain hole isn’t clogged and that the window seal is tight.
Conclusion: Enjoy Cool, Efficient Comfort
Congratulations! You’ve successfully installed your LG Window Air Conditioner Dual Inverter . With proper setup, this unit will keep your home cool, quiet, and energy-efficient all summer long. Remember to clean the filter monthly, inspect seals annually, and use the LG ThinQ app to maximize performance.
By following this guide, you’ve not only saved on professional installation fees but also gained the confidence to maintain your AC for years to come. Stay cool, save energy, and enjoy the smart, reliable comfort that only LG Dual Inverter technology can deliver in 2026.
Keep your system running efficiently year-round with our year-round upkeep schedule.
