Installation Lg Air Conditioner 12

This guide walks you through the complete installation LG air conditioner 12 process, from pre-installation checks to final testing. Whether you’re a DIY enthusiast or working with a pro, you’ll get clear, up-to-date instructions for a safe and efficient setup.

Key Takeaways

• Choose the right location: Pick a spot with good airflow, structural support, and minimal sun exposure to maximize efficiency.

• Gather the right tools: You’ll need a drill, level, wrench set, vacuum pump, and electrical tester for a smooth installation.

• Follow safety protocols: Always turn off power at the breaker and wear protective gear to avoid electrical or physical injury.

• Seal and insulate properly: Prevent energy loss and moisture buildup by sealing gaps and insulating refrigerant lines.

• Test before finalizing: Run a full system check to ensure cooling, drainage, and remote functionality work correctly.

• Schedule professional help if needed: For complex wiring or gas line work, always consult a licensed technician.

• Register your unit: Complete LG’s 2026 warranty registration online to activate coverage and access support.

Introduction: Why Proper Installation Matters

Installing your LG air conditioner 12 correctly isn’t just about comfort—it’s about performance, energy efficiency, and longevity. In 2026, LG’s latest 12,000 BTU models come with smart features, inverter technology, and eco-friendly refrigerants that demand precise setup. A poorly installed unit can waste up to 30% more energy, leak refrigerant, or even pose safety risks. For more on this, see our guide on air conditioner installation tips.

This guide will walk you through every step of the installation LG air conditioner 12 process, whether you’re mounting a window unit or a split system. We’ll cover tools, safety, placement, wiring, and testing—so you can enjoy cool, quiet air all summer long. While some steps are DIY-friendly, we’ll also highlight when to call a professional.

Measuring Room Size for Proper BTU Match

Before finalizing location, verify that a 12,000 BTU unit matches your space. LG’s 12k models typically cover 450–550 square feet with standard 8-foot ceilings. For rooms with high ceilings, large windows, or heavy sun exposure, you may need the next size up. Use the “square footage × 25” rule as a baseline, then adjust: add 10% for sunny rooms, 10% for kitchens, subtract 10% for shaded spaces. If you’re unsure, our guide on matching capacity to room conditions walks through the calculation with real-world examples. For more on this, see our guide on air conditioner installation understanding pipe costs.

Step 1: Choose the Right Location

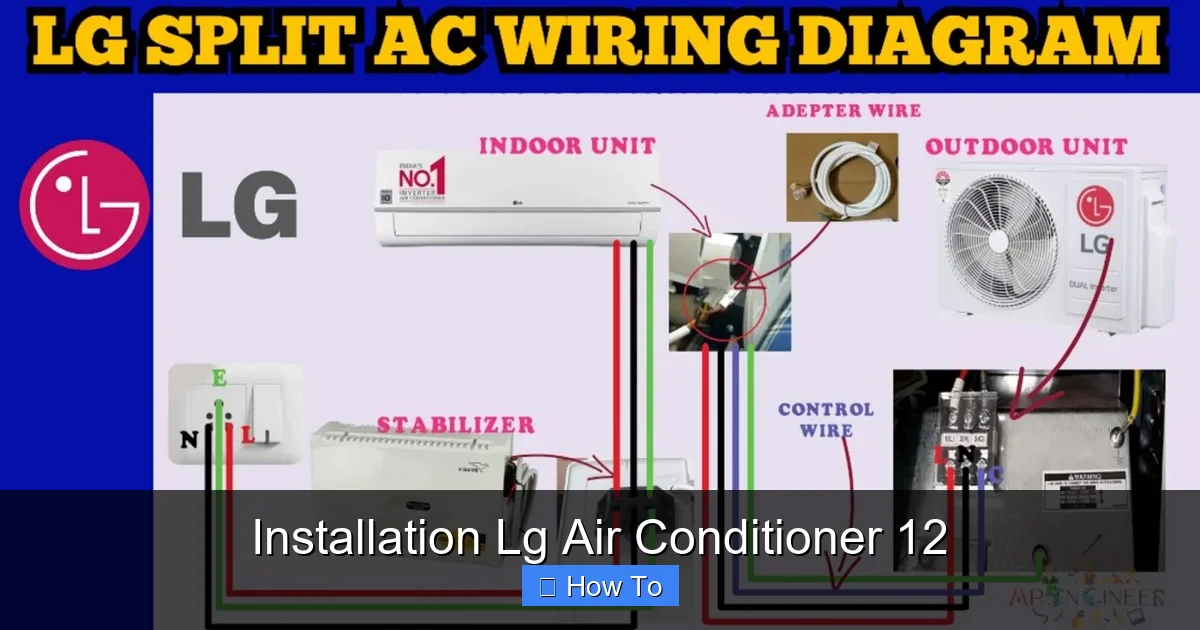

Visual guide about Installation Lg Air Conditioner 12

Image source: i.ytimg.com

Picking the best spot for your LG air conditioner 12 is the foundation of a successful installation.

Indoor Unit Placement (for Split Systems)

For wall-mounted indoor units, choose a location that’s:

• At least 7 feet above the floor

• Free from direct sunlight and heat sources (like lamps or appliances)

• At least 6 inches away from the ceiling

• Centered in the room for even airflow

Avoid placing the unit above beds, desks, or electronics—condensation or vibrations could cause issues.

Outdoor Unit Placement

The outdoor condenser needs space to breathe. Place it:

• On a stable, level surface (concrete pad or wall bracket)

• At least 12 inches away from walls or shrubs

• In a shaded area if possible (to improve efficiency)

• Away from windows or neighbors’ living spaces (to reduce noise)

In 2026, many homeowners use sound-dampening enclosures—check local noise ordinances before installing.

Window Unit Considerations

If using a window model, ensure the window frame is strong enough and can support the unit’s weight. Double-hung or sliding windows work best. Avoid installing near curtains, blinds, or furniture that could block airflow.

Step 2: Gather Tools and Materials

Having the right tools saves time and prevents mistakes. Here’s what you’ll need:

Basic Toolkit

• Power drill and drill bits

• Level (laser levels are great for precision)

• Adjustable wrench and screwdrivers

• Tape measure and pencil

• Safety goggles and gloves

Specialized Equipment

For split systems, you’ll also need:

• Vacuum pump (to remove air and moisture from refrigerant lines)

• Flaring tool (for copper pipe connections)

• Electrical tester (to confirm power is off)

• Insulation tape and foam sleeves

• Mounting brackets and anchors (usually included with the unit)

Optional but Helpful

• Smartphone with LG’s 2026 installation app (for guided setup)

• Helper (for lifting heavy units)

• Extension cord (for testing before permanent wiring)

Understanding LG’s 2026 Refrigerant Types

LG’s current 12,000 BTU lineup uses R-32 refrigerant, which has a lower global warming potential (GWP ~675) than the older R-410A (GWP ~2,088). R-32 operates at slightly higher pressures, so flare connections must be torqued to LG’s updated specs (typically 18–22 N·m for 1/4″ liquid, 42–50 N·m for 1/2″ suction). Using a torque wrench—not just “feel”—prevents leaks. If you’re retrofitting an older line set, flush it thoroughly; residual POE oil from R-410A systems can contaminate R-32 circuits. The U.S. EPA’s SNAP program lists approved refrigerants and transition timelines for reference. For more on this, see our guide on are air conditioner brackets required in nyc.

Step 3: Prepare the Installation Site

Before mounting anything, prep the area to ensure a clean, safe setup.

Turn Off Power

Safety first! Go to your electrical panel and turn off the breaker that supplies power to the AC circuit. Use an electrical tester to confirm no current is flowing.

Mark and Drill Mounting Holes

Hold the mounting plate against the wall (for split systems) or window frame (for window units). Use a level to ensure it’s straight, then mark drill points with a pencil. Drill pilot holes and secure the plate with appropriate anchors—concrete walls may need masonry bits and anchors.

Create the Wall Opening (Split Systems Only)

Use a hole saw to cut a 3-inch diameter hole through the wall for refrigerant lines, drain hose, and wiring. Angle the hole slightly downward (about 1/4 inch per foot) toward the outside to prevent water from seeping in.

Permit Requirements and Local Codes

Most municipalities require a mechanical permit for split-system installations involving new refrigerant lines or a dedicated 220 V circuit. Fees typically range $50–$200. Some jurisdictions also mandate a licensed HVAC contractor pull the permit—even if you do the physical work. Check your city’s building department website before cutting the wall opening; an inspector may want to see the rough-in before you close the chase. In condos or HOAs, review CC&Rs for restrictions on condenser placement, noise limits, and bracket types. A quick call to the management office can avoid a costly redo.

Step 4: Install the Indoor Unit

Now it’s time to mount the indoor unit.

Attach the Mounting Plate

Secure the plate to the wall using the provided screws and anchors. Double-check it’s level—this ensures proper drainage and prevents vibration.

Connect Refrigerant Lines and Drain Hose

Carefully bend the copper lines to avoid kinks. Connect them to the indoor unit’s ports using a flaring tool. Attach the drain hose and route it downward to a suitable drain or outside. Use insulation sleeves to cover all lines—this prevents condensation and energy loss.

Wire the Indoor Unit

Run the electrical cable from the indoor unit through the wall hole to the outdoor unit. Match wire colors (usually red to red, blue to blue) and secure with wire nuts. Never splice wires—use a junction box if extending is necessary.

Step 5: Install the Outdoor Unit

The outdoor unit handles heat exchange and needs a stable, ventilated setup.

Mount the Condenser

Place the unit on a concrete pad or wall bracket. Use rubber pads under the feet to reduce vibration and noise. Ensure it’s level and securely fastened.

Connect Refrigerant Lines and Wiring

Attach the copper lines to the outdoor unit’s service valves. Tighten with a wrench—don’t over-tighten. Connect the wiring following the same color codes as the indoor unit. Seal all connections with leak-detection paste (included in some LG kits).

Evacuate the Refrigerant Lines

This step is critical. Connect a vacuum pump to the service port and run it for at least 30 minutes to remove air and moisture. Close the valves and disconnect the pump. A proper vacuum ensures efficient cooling and prevents compressor damage.

Sound Dampening and Vibration Control

Beyond rubber feet, consider a 2-inch thick anti-vibration mat under a pad-mounted condenser—it reduces structure-borne noise by 3–5 dB. For wall brackets, use spring isolators rated for the unit’s weight (LG 12k outdoor units weigh ~75–85 lb). Run refrigerant lines through foam grommets where they penetrate the wall sleeve to stop vibration transfer. In practice, a common mistake is rigidly strapping lines to floor joists; leave a 6-inch slack loop near the condenser so compressor vibration doesn’t fatigue the copper.

Step 6: Finalize Electrical Connections

Only proceed if you’re confident in your electrical skills—otherwise, hire a licensed electrician.

Connect to Power Supply

Run a dedicated 220V circuit from your breaker panel to the outdoor unit. Use appropriately sized wire (usually 10 or 12 gauge) and a disconnect switch within sight of the unit. Follow local electrical codes—many areas require permits for AC installations.

Test the Circuit

Turn the breaker back on and use a multimeter to verify voltage at the unit. Check that the disconnect switch works properly.

Step 7: Test the System

Before celebrating, run a full system check.

Power On and Check Operation

Turn on the unit using the remote. Set it to cool mode and feel for cold air within 5–10 minutes. Listen for unusual noises—clicking, grinding, or hissing could indicate issues.

Verify Drainage

Pour a cup of water into the drain pan to test the hose. Water should flow freely outside. If it backs up, check for clogs or improper slope.

Check Remote and Smart Features

In 2026, LG’s 12,000 BTU models often include Wi-Fi and app control. Download the LG ThinQ app, connect your unit, and test scheduling, temperature control, and voice commands (with Alexa or Google Assistant).

Smart Home Integration Deep Dive

LG ThinQ now supports Matter 1.3, so the 12k unit can join Apple Home, Google Home, or Samsung SmartThings without a brand-specific hub. During first pairing, keep the phone within 10 ft of the indoor unit—Bluetooth LE handles the initial handshake before switching to Wi-Fi. If pairing fails, power-cycle the unit (breaker off 30 seconds) and ensure your router’s 2.4 GHz band is enabled (Matter doesn’t use 5 GHz). Once onboard, create automations like “set to 75 °F when geofence detects arrival” or “boost fan for 30 min when indoor humidity > 60 %.” For advanced energy tracking, link the ThinQ account to your utility’s demand-response program—many offer $20–$50 annual bill credits for allowing brief compressor cycling during peak events.

Troubleshooting Common Issues

Even with careful installation, problems can arise.

Unit Won’t Turn On

Check the breaker, disconnect switch, and remote batteries. Ensure the unit is properly wired and the circuit isn’t overloaded.

Weak Cooling

This could mean low refrigerant, dirty filters, or blocked airflow. Check filters first—clean or replace if needed. If the issue persists, call a technician to check for leaks.

Water Leaking Indoors

Usually caused by a clogged drain or improper slope. Clear the hose with a wet/dry vacuum or pipe cleaner.

Strange Noises

Rattling? Check for loose mounting screws. Hissing? Could be a refrigerant leak—turn off the unit and call a pro immediately.

Window vs. Split LG 12k BTU: Quick Comparison

In practice, the split’s higher SEER2 pays back the price difference in 3–5 years if you cool 80+ days/year at $0.15/kWh.

Post-Installation Maintenance Schedule

A 12k LG unit runs reliably for 12–15 years if maintained. Mark these intervals:

• Monthly (cooling season): Remove and rinse the indoor mesh filter; vacuum the outdoor coil fins if accessible.
• Quarterly: Flush the drain line with 1 cup vinegar + 1 cup water to prevent biofilm clogs.
• Annually (pre-season): Check torque on flare nuts, verify vacuum-level micron reading (≤ 500 µm), inspect insulation for UV degradation, and confirm remote firmware is current via ThinQ.
• Every 3–5 years: Have a pro recover refrigerant, pressure-test with nitrogen, and recharge to nameplate weight—R-32 systems are critical-charge; ±5 % affects capacity noticeably.

Our seasonal maintenance checklist expands each task with photos and tool links.

Conclusion: Enjoy Your Cool, Efficient LG AC

You’ve successfully completed the installation LG air conditioner 12 ! By following these steps, you’ve ensured your unit runs efficiently, lasts longer, and keeps your home comfortable. Remember to clean filters monthly, inspect outdoor units seasonally, and register your product on LG’s 2026 support portal for warranty coverage.

If at any point you felt unsure—especially with electrical or refrigerant work—don’t hesitate to hire a certified technician. A small investment now can prevent big problems later. Stay cool and energy-smart all year!

Next step: Set a calendar reminder for the 30-day filter check and register your warranty at LG’s site today—coverage starts at install date, not purchase date.

Frequently Asked Questions

What size room does an LG 12,000 BTU air conditioner cool?

An LG 12k BTU unit effectively cools 450–550 sq ft with standard ceilings. Add 10% capacity for sunny rooms or kitchens; subtract 10% for heavily shaded spaces.

Can I install an LG split system myself without an HVAC license?

You can mount units and run lines, but EPA Section 608 certification is legally required to handle refrigerant. Most jurisdictions also require a licensed electrician for the 220 V circuit.

Does the 2026 LG 12k model work with Matter / Apple HomeKit?

Yes. Current LG 12,000 BTU split and window models support Matter 1.3 over Wi-Fi, enabling native control in Apple Home, Google Home, and SmartThings without a separate hub.

How long should I vacuum the lines before releasing refrigerant?

Run the vacuum pump until the micron gauge holds ≤ 500 µm for at least 10 minutes after valve isolation—typically 30–45 minutes total. Shorter pulls risk moisture freezing in the TXV.

What’s the difference between R-32 and R-410A in LG’s 2026 lineup?

R-32 has ~68% lower GWP and ~5% higher efficiency. It operates at slightly higher pressure, so flare torque specs differ—always use a torque wrench set to LG’s current values.

How often should I clean the filters on my LG 12k unit?

Rinse the indoor mesh filter monthly during cooling season. The outdoor coil benefits from a gentle fin-comb and low-pressure rinse once per year before summer.
