Installing an LG 5000 BTU air conditioner is a manageable DIY project with the right tools and instructions. This guide walks you through every step—from choosing the right window to final testing—so you can enjoy cool, comfortable air in no time.
Key Takeaways
- Choose the right window: Ensure your window is double-hung or sliding, structurally sound, and large enough to support the unit.
- Gather essential tools: You’ll need a tape measure, screwdriver, drill, level, and weatherstripping for a secure installation.
- Follow safety first: Always unplug the unit before handling, wear gloves and safety glasses, and never install on unstable surfaces.
- Seal gaps properly: Use foam panels and weatherstripping to prevent air leaks and improve energy efficiency.
- Test before use: Plug in and run the AC briefly to confirm it’s working and not vibrating or leaking.
- Maintain regularly: Clean filters monthly and inspect seals seasonally to keep your AC running efficiently.
- Know when to call a pro: If you’re unsure about electrical connections or structural support, consult a professional.
How to Install LG 5000 BTU Air Conditioner
If you’re tired of sweltering summer days and want a cool, comfortable home without breaking the bank, installing an LG 5000 BTU air conditioner is a smart move. These compact, energy-efficient units are perfect for small to medium-sized rooms—typically up to 150 square feet—and are designed for easy DIY installation. Whether you’re cooling a bedroom, home office, or studio apartment, this guide will walk you through the entire process, from preparation to final testing.
In this comprehensive how-to guide, you’ll learn exactly how to install an LG 5000 BTU air conditioner safely and correctly. We’ll cover everything: selecting the right window, gathering tools, securing the unit, sealing gaps, and troubleshooting common issues. No prior HVAC experience? No problem. With clear instructions, practical tips, and safety reminders, you’ll have your new air conditioner up and running in under an hour.
Let’s get started!
Why Choose an LG 5000 BTU Air Conditioner?

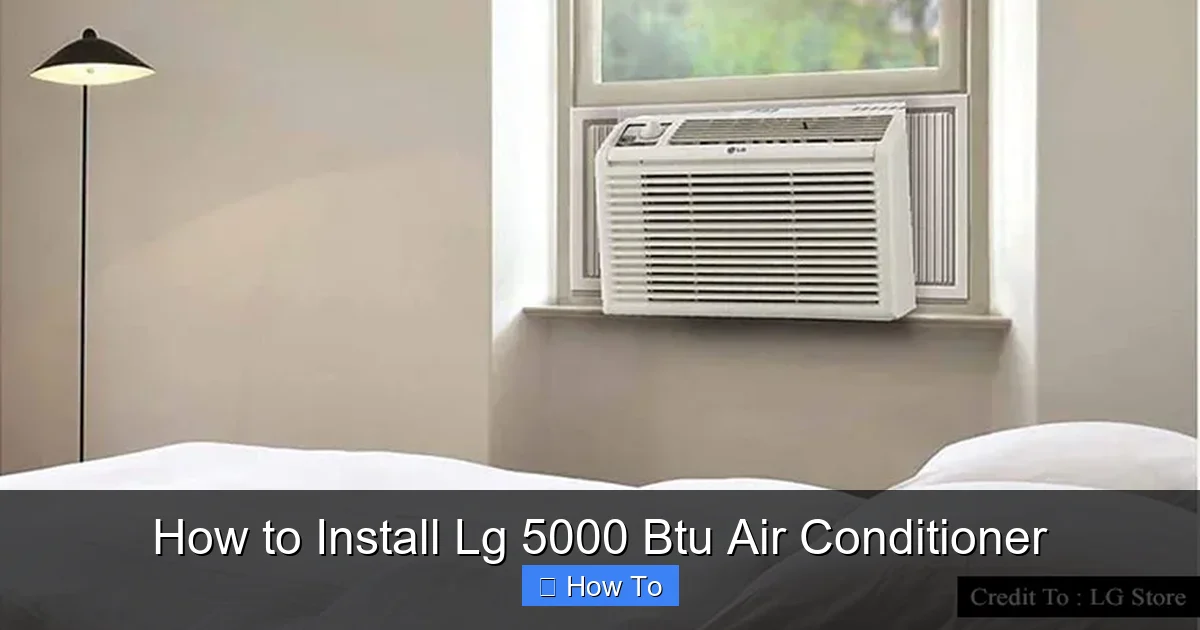

Visual guide about How to Install Lg 5000 Btu Air Conditioner
Image source: bigelectronicstore.com
Before diving into installation, it’s helpful to understand why the LG 5000 BTU model is a popular choice. These units strike a great balance between cooling power and energy efficiency. They’re ideal for rooms like bedrooms, small living rooms, or offices where full central air isn’t necessary or available.
LG is known for reliable, quiet, and user-friendly appliances, and their window air conditioners are no exception. The 5000 BTU models often come with features like:
– Energy-saving modes
– Remote control
– Digital thermostat
– Washable filters
– Easy-to-clean design
Plus, they’re relatively lightweight (usually under 60 pounds), making them easier to handle during installation compared to larger units.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-installation.
Essential Tools
- Tape measure
- Phillips and flathead screwdrivers
- Power drill (with drill bits)
- Level
- Pencil or marker
- Utility knife
- Safety gloves and glasses
Included with Your LG 5000 BTU AC Unit
Most LG window air conditioners come with an installation kit that includes:
- Window mounting brackets
- Foam insulation panels
- Screws and anchors
- Side accordion panels (extendable)
- Instruction manual
Additional Materials (May Need to Purchase)
- Weatherstripping or foam tape (for sealing gaps)
- Support bracket (optional, but recommended for added stability)
- Silicone caulk (for waterproofing)
- Extension cord (only if outlet is not nearby—use a heavy-duty, grounded cord)
Step 1: Choose the Right Window
Not every window is suitable for a window air conditioner. Choosing the right one is crucial for safety, efficiency, and performance.
Window Type
Your window should be either:
- A double-hung window (opens up and down)
- A sliding window (opens left or right)
Casement windows (that open outward with a crank) are generally not recommended unless you have a specialized mounting kit.
Window Size
Check your LG unit’s specifications for minimum and maximum window opening dimensions. For most 5000 BTU models, you’ll need:
- Minimum height: 13–14 inches
- Minimum width: 22–24 inches
Measure your window opening carefully. If it’s too small, you may need to modify the frame or choose a different location.
Structural Integrity
The window frame and sill must be strong enough to support the weight of the AC unit (typically 50–60 pounds). Avoid installing on rotting wood, loose frames, or weak sills.
Sun and Shade Considerations
For best efficiency, install the unit on a north- or east-facing wall to minimize direct sunlight. South- and west-facing windows can cause the AC to work harder, increasing energy use.
Step 2: Prepare the Window and Area
Once you’ve selected the right window, it’s time to prepare the area for installation.
Clear the Space
Remove any curtains, blinds, or obstacles from the window. Clear the interior and exterior areas so you have room to work.
Clean the Window Frame
Wipe down the window sill and frame with a damp cloth to remove dust and debris. This ensures a clean surface for sealing.
Check for Obstructions Outside
Look outside to make sure there are no overhanging branches, gutters, or walls that could block airflow or make installation difficult.
Locate the Nearest Electrical Outlet
Ensure there’s a grounded electrical outlet within reach of the AC unit’s power cord. Never use an extension cord as a permanent solution—only use one temporarily if absolutely necessary, and make sure it’s rated for air conditioners (14-gauge or heavier).
Step 3: Install the Window Mounting Brackets
Most LG 5000 BTU units come with mounting brackets that attach to the window sill. These help support the weight of the unit and prevent it from falling.
Position the Brackets
1. Open the window and place the AC unit (still in its box or carefully held) into the opening to check fit.
2. Slide the bottom of the unit into the window opening so it rests on the sill.
3. Close the window sash down onto the top of the unit to hold it in place temporarily.
Mark the Bracket Locations
1. With the unit in place, use a pencil to mark where the mounting brackets will go on the window sill.
2. Remove the unit and set it aside safely.
Drill Pilot Holes
1. Use a drill to create pilot holes at the marked spots. This prevents the wood from splitting.
2. Make sure the holes are slightly smaller than the screws provided.
Attach the Brackets
1. Align the brackets with the pilot holes.
2. Secure them using the screws included in the kit.
3. Use a level to ensure the brackets are even.
Step 4: Install the Side Panels
The accordion-style side panels fill the gaps on either side of the unit, preventing air leaks and improving efficiency.
Attach the Panels to the AC Unit
1. Locate the side panels in the installation kit.
2. Slide them into the grooves on the sides of the air conditioner.
3. Extend them outward so they reach the window frame.
Secure the Panels
1. Once extended, use the provided screws to attach the panels to the window frame.
2. Make sure they’re snug but not over-tightened, which could warp the panel.
Adjust for a Tight Fit
If the window is wider than the unit plus panels, you may need to add extra weatherstripping or foam tape to fill the gap.
Step 5: Install the Air Conditioner
Now it’s time to place the unit into the window and secure it.
Lift the Unit Safely
Window AC units can be heavy. Use proper lifting techniques:
- Bend your knees, not your back.
- Keep the unit close to your body.
- Ask for help if needed—two people are better than one.
Position the Unit
1. Carefully lift the AC unit and place it into the window opening.
2. Slide it down so the bottom rests securely on the mounting brackets.
3. Make sure the unit is centered and level.
Lower the Window Sash
1. Gently lower the top window sash until it rests on the top of the AC unit.
2. The sash should hold the unit in place temporarily.
Secure the Unit
1. Use the provided screws to attach the top of the AC unit to the window sash.
2. Drill pilot holes first to avoid cracking the wood.
3. Tighten the screws just enough to hold the unit securely—don’t over-tighten.
Step 6: Seal Gaps and Insulate
Even small gaps around the unit can let hot air in and cool air out, reducing efficiency. Proper sealing is essential.
Install Foam Insulation Panels
1. Cut the foam panels (included) to fit any remaining gaps between the side panels and the window frame.
2. Insert them into place and secure with tape or small screws if needed.
Apply Weatherstripping
1. Use self-adhesive foam weatherstripping along the top, bottom, and sides where the unit meets the window.
2. Press firmly to ensure a tight seal.
Seal Exterior Gaps with Caulk
1. On the outside, apply a thin bead of silicone caulk around the edges where the unit meets the wall.
2. This prevents water from seeping in and improves insulation.
Step 7: Connect the Power
Safety is critical when dealing with electricity.
Check the Power Cord
1. Make sure the power cord is undamaged and free of cuts or frays.
2. Plug it directly into a grounded (three-prong) outlet.
Avoid Extension Cords
If the outlet is too far, consider relocating the outlet or using a heavy-duty, grounded extension cord rated for at least 15 amps. Never use multiple extension cords or power strips.
Turn On the Circuit Breaker
If the outlet is on a switched circuit, make sure the breaker is on before plugging in the unit.
Step 8: Test the Air Conditioner
Before declaring victory, test the unit to ensure everything is working properly.
Power On
1. Plug in the unit and turn it on using the remote or control panel.
2. Set the temperature a few degrees below room temperature.
Check for Cool Air
Within a few minutes, you should feel cool air blowing from the vents. If not, check the settings and ensure the unit is in “Cool” mode.
Listen for Unusual Noises
A slight hum is normal, but loud rattling, grinding, or buzzing could indicate a problem. Turn off the unit and check for loose parts.
Check for Leaks or Vibration
Look for water dripping inside or outside. Also, ensure the unit isn’t vibrating excessively, which could mean it’s not level or secure.
Troubleshooting Common Installation Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Unit Won’t Turn On
- Check the power cord and outlet.
- Make sure the circuit breaker hasn’t tripped.
- Verify the remote has batteries and is working.
Not Cooling Enough
- Ensure the filter is clean.
- Check that vents aren’t blocked.
- Verify the room isn’t too large for a 5000 BTU unit.
Water Leaking Inside
- This could mean the unit isn’t level. Adjust the mounting brackets.
- Check that the drain hole (on the back) isn’t clogged.
Excessive Noise or Vibration
- Tighten all screws and brackets.
- Ensure the unit is level and not touching the window frame.
Air Leaking Around the Unit
- Reapply weatherstripping or foam tape.
- Check that side panels are fully extended and sealed.
Maintenance Tips for Long-Term Performance
Once installed, regular maintenance keeps your LG 5000 BTU air conditioner running efficiently.
Clean the Filter Monthly
1. Turn off and unplug the unit.
2. Remove the front panel and take out the filter.
3. Wash it with warm, soapy water, let it dry, and reinstall.
Inspect Seals Seasonally
Check weatherstripping and foam panels for wear. Replace if cracked or compressed.
Clean the Exterior Coils (Annually)
Use a soft brush or vacuum to remove dust from the outdoor side of the unit.
Check for Obstructions
Make sure nothing is blocking airflow inside or outside the unit.
When to Call a Professional
While most people can install a window AC unit themselves, there are times when it’s best to call in an expert.
- You’re unsure about electrical connections.
- The window frame is damaged or weak.
- You need to modify the window or wall.
- The unit is too heavy for you to lift safely.
- You experience persistent leaks, noise, or cooling issues.
A licensed HVAC technician can ensure safe, code-compliant installation and help avoid costly mistakes.
Conclusion
Installing an LG 5000 BTU air conditioner is a practical and rewarding DIY project that can significantly improve your home’s comfort during hot weather. By following this step-by-step guide, you’ve learned how to choose the right window, gather tools, secure the unit, seal gaps, and test for performance. With proper installation and regular maintenance, your air conditioner will provide reliable cooling for years to come.
Remember: safety comes first. Always unplug the unit before handling, wear protective gear, and don’t hesitate to ask for help when lifting or securing the AC. And if you ever feel unsure, consulting a professional is always a smart choice.
Now that your LG 5000 BTU air conditioner is installed, sit back, relax, and enjoy the cool, refreshing air. Stay cool and comfortable all summer long!
