Installing an LG 8,000 BTU air conditioner doesn’t have to be overwhelming. This guide walks you through every step—from choosing the right location to testing your unit—so you can stay cool and comfortable with confidence.
Key Takeaways
- Choose the right location: Pick a window or wall that supports the unit’s weight and allows proper airflow and drainage.
- Gather the right tools: You’ll need a drill, level, screwdriver, measuring tape, and safety gear before starting.
- Follow the manual: Always refer to your specific LG model’s installation guide for model-specific instructions.
- Seal gaps properly: Use foam weatherstripping or sealant to prevent air leaks and improve efficiency.
- Test before finalizing: Run the AC for 15–20 minutes to check for leaks, noise, or cooling issues.
- Safety first: Turn off power, wear gloves and goggles, and never lift the unit alone.
- Consider professional help: If unsure about electrical or structural work, hire a licensed technician.
How to Install LG 8,000 BTU Air Conditioner
Summer heat can be brutal, but an LG 8,000 BTU air conditioner can turn your stuffy room into a cool oasis. These compact, energy-efficient units are perfect for bedrooms, home offices, or small living spaces. The good news? Installing one is easier than you might think—especially if you follow a clear, step-by-step process.
In this guide, we’ll walk you through how to install an LG 8,000 BTU air conditioner safely and correctly. Whether you’re mounting it in a window or through a wall, we’ll cover everything from planning and prep to final testing. No prior HVAC experience? No problem. We keep things simple, practical, and jargon-free. By the end, you’ll have a fully functioning AC unit that keeps you comfortable all season long.
Why Choose an LG 8,000 BTU Air Conditioner?
LG is a trusted name in home appliances, and their 8,000 BTU air conditioners are no exception. These units are designed for rooms up to 350 square feet, making them ideal for most standard bedrooms or small apartments. They’re energy-efficient, quiet, and packed with smart features like remote control, sleep mode, and auto-restart after power outages.

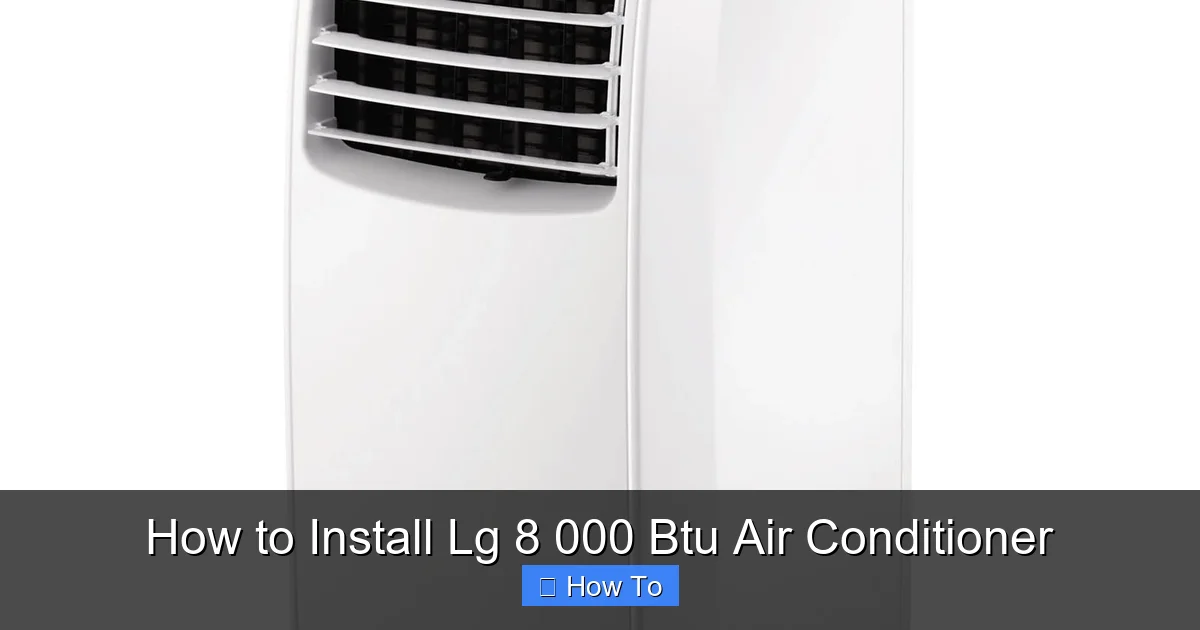

Visual guide about How to Install Lg 8 000 Btu Air Conditioner
Image source: c.shld.net
Plus, LG models often include built-in filters that improve indoor air quality by trapping dust, pollen, and allergens. Many also support Wi-Fi connectivity, allowing you to control the temperature from your smartphone. With sleek designs and reliable performance, it’s no wonder so many homeowners choose LG for their cooling needs.
What You’ll Need Before You Start
Before you unbox your new LG 8,000 BTU air conditioner, make sure you have the right tools and materials on hand. Rushing out to buy supplies mid-installation can be frustrating and time-consuming. Here’s a checklist to get you prepared:
- Measuring tape
- Drill and drill bits
- Screwdriver (Phillips and flathead)
- Level
- Adjustable wrench
- Pencil or marker
- Safety gloves and goggles
- Foam weatherstripping or window seal kit
- Support brackets (if required)
- Silicone caulk or sealant
- Extension cord (only if absolutely necessary and rated for AC use)
Most LG 8,000 BTU units come with an installation kit that includes brackets, screws, and side panels. Always check the box contents against the manual to ensure nothing is missing. If anything is damaged or absent, contact LG customer support before proceeding.
Step 1: Choose the Right Location
The success of your installation starts with picking the perfect spot. A poorly chosen location can lead to inefficient cooling, water leaks, or even safety hazards. Here’s what to look for:
Window Installation
If you’re installing in a window, choose a double-hung or sliding window that opens vertically. The window should be sturdy enough to support the unit’s weight—typically around 60–70 pounds for an 8,000 BTU model. Avoid windows near trees or shrubs that could block airflow.
Also, make sure the window is close to an electrical outlet. Never use an extension cord unless it’s a heavy-duty, outdoor-rated one specifically designed for air conditioners. Standard extension cords can overheat and pose a fire risk.
Through-the-Wall Installation
For through-the-wall setups, you’ll need to cut an opening in an exterior wall. This is more complex and may require professional help, especially if you’re dealing with concrete or brick. The opening should match the dimensions specified in your LG manual—usually around 14–16 inches high and 23–26 inches wide.
Choose a wall that’s free of electrical wiring, plumbing, or structural supports. Use a stud finder to check for obstructions before drilling. If you’re unsure, consult a contractor.
Other Considerations
- Sun exposure: South- or west-facing windows get more sun, so your AC will work harder. Consider using curtains or blinds to reduce heat gain.
- Drainage: The unit should tilt slightly backward (about 1/4 inch) to allow condensation to drain properly.
- Clearance: Leave at least 12–18 inches of space around the unit for airflow. Don’t install it behind furniture or curtains.
Step 2: Prepare the Window or Wall Opening
Once you’ve chosen your location, it’s time to prep the area. This step ensures a secure, leak-free installation.
For Window Installations
Start by cleaning the window frame and sill. Remove any dirt, paint, or old sealant that could prevent a tight fit. Then, measure the width of the window opening to determine how much space you’ll need for the side panels.
Most LG window units come with accordion-style side panels that expand to fill the gap between the AC and the window frame. Lay the unit on its side and attach the side panels using the provided screws. Make sure they’re secure but not over-tightened, as this can warp the plastic.
For Through-the-Wall Installations
Mark the dimensions of the opening on the wall using a pencil and level. Double-check your measurements—once you cut, there’s no going back. Use a reciprocating saw or hole saw to cut through drywall, wood, or siding. For brick or concrete, you’ll need a masonry drill and possibly a jackhammer.
After cutting, install a metal or plastic sleeve (often included with the unit) into the opening. This protects the edges and provides a clean finish. Secure it with screws and seal around the edges with silicone caulk to prevent water intrusion.
Step 3: Install Support Brackets (If Needed)
An 8,000 BTU air conditioner is heavy, and relying solely on the window frame for support can be risky—especially in older homes. That’s where support brackets come in.
Window Support Brackets
Many LG models include L-shaped support brackets that attach to the window sill and support the bottom of the unit. To install:
- Position the bracket under the window sill, aligning it with the center of the AC.
- Drill pilot holes into the sill or exterior wall.
- Secure the bracket with long screws (usually provided).
- Adjust the bracket so it firmly supports the unit without bending.
Some brackets have adjustable arms or straps for extra stability. Follow the instructions carefully to avoid over-tightening, which can crack the window frame.
Wall-Mounted Brackets
For through-the-wall installations, you may need a wall-mounted support frame. These are typically bolted into the wall studs and designed to hold the full weight of the unit. If your model doesn’t include one, you can purchase a universal AC support bracket from a hardware store.
Always use a level to ensure the bracket is perfectly horizontal. A tilted bracket can cause the unit to lean, leading to poor drainage and potential water damage.
Step 4: Position and Secure the Air Conditioner
Now it’s time to lift the unit into place. This is the most physically demanding part of the installation, so take your time and use proper lifting techniques.
Lifting the Unit
Never lift the air conditioner by the front grille or control panel. Instead, grip it firmly from the sides or bottom. If possible, have a friend help you—this isn’t a one-person job.
Wear gloves to protect your hands and avoid dropping the unit. If it falls, even from a short height, internal components can be damaged.
Sliding into Place
For window installations, carefully slide the unit into the window opening. The bottom should rest on the sill or support bracket, and the top should be flush with the window frame. Make sure the side panels fit snugly against the window frame.
For through-the-wall units, gently push the AC into the sleeve until it’s fully seated. The front should be flush with the interior wall.
Securing the Unit
Once in place, secure the air conditioner to prevent it from shifting or falling. Use the provided screws to attach the top of the unit to the window frame or wall sleeve. Don’t overtighten—this can crack plastic parts.
If your model includes locking brackets or safety cables, install them now. These add an extra layer of security, especially in high-wind areas or upper-floor apartments.
Step 5: Seal Gaps and Prevent Air Leaks
Even small gaps around your air conditioner can let hot air in and cool air out, reducing efficiency and increasing your energy bill. Sealing these gaps is a critical step.
Using Weatherstripping
Apply foam weatherstripping to the gaps between the side panels and the window frame. Cut the strips to size and press them firmly into place. For larger gaps, use expandable foam sealant, but be careful not to overfill—it can expand and warp the frame.
Sealing the Top and Sides
Use silicone caulk to seal any cracks around the top and sides of the unit, especially in through-the-wall installations. This prevents water, insects, and drafts from entering your home.
Checking for Drafts
After sealing, run your hand around the edges of the unit on a windy day. If you feel air moving, add more sealant or weatherstripping. A well-sealed AC unit can improve efficiency by up to 20%.
Step 6: Connect to Power and Test the Unit
With the unit securely installed and sealed, it’s time to plug it in and test it out.
Electrical Safety
Always plug the air conditioner directly into a dedicated outlet. Avoid using power strips or multi-plug adapters, as they can overheat. The outlet should be on a circuit rated for at least 15 amps—check your breaker panel to confirm.
If you’re installing in an older home with outdated wiring, consider having an electrician inspect the circuit. Overloaded circuits can trip breakers or cause fires.
First Run
Turn on the unit and set it to cool mode. Listen for unusual noises like grinding, rattling, or buzzing. These could indicate loose parts or improper installation.
Check for leaks around the unit. Condensation is normal, but water dripping inside your home is not. If you see water, turn off the unit and check the tilt and drainage.
Feel the air coming from the vents. It should be noticeably cooler within a few minutes. If not, check the filter—it may be dirty or installed backward.
Troubleshooting Common Installation Issues
Even with careful installation, problems can arise. Here’s how to fix the most common issues:
Unit Won’t Turn On
Check the power cord and outlet. Use a lamp or phone charger to test the outlet. If it works, the issue may be with the unit’s internal fuse or thermostat. Contact LG support if the problem persists.
Water Leaking Inside
This usually means the unit isn’t tilted correctly or the drain is clogged. Adjust the tilt so the back is slightly lower than the front. Clean the drain hole with a pipe cleaner or compressed air.
Poor Cooling
Ensure the filter is clean and the vents aren’t blocked. Also, check that the temperature setting is low enough. If the room is very hot, it may take 30–60 minutes to cool down.
Loud Noises
Rattling often means loose screws or panels. Tighten all visible screws. Grinding or squealing could indicate a motor issue—turn off the unit and call a technician.
Air Leaks
If you feel warm air coming in around the unit, reapply weatherstripping or sealant. Even small gaps can reduce efficiency.
Maintenance Tips for Long-Term Performance
Once your LG 8,000 BTU air conditioner is up and running, regular maintenance will keep it working efficiently for years.
- Clean the filter monthly: Remove the front panel and wash the filter with mild soap and water. Let it dry completely before reinstalling.
- Check the coils: Dust and debris can build up on the evaporator and condenser coils. Use a soft brush or vacuum to clean them gently.
- Inspect the drain: Make sure the drain hole isn’t clogged with dirt or mold.
- Clear the area: Keep the space around the unit free of furniture, curtains, or plants.
- Schedule professional service: Have a technician inspect the unit every 2–3 years, especially if you notice reduced performance.
When to Call a Professional
While many homeowners can install an LG 8,000 BTU air conditioner on their own, some situations call for expert help. Consider hiring a licensed HVAC technician if:
- You’re installing through a concrete or brick wall.
- You’re unsure about electrical wiring or circuit capacity.
- The unit is heavy and you don’t have help lifting it.
- You encounter structural issues, like weak window frames.
- You’re not comfortable using power tools or drilling into walls.
Professional installation ensures safety, compliance with local codes, and often comes with a warranty. It’s a worthwhile investment if you’re unsure about any part of the process.
Conclusion
Installing an LG 8,000 BTU air conditioner is a manageable DIY project that can save you money and keep your home cool all summer. By choosing the right location, using the proper tools, and following each step carefully, you’ll enjoy efficient, reliable cooling in no time.
Remember to prioritize safety, seal all gaps, and test the unit thoroughly before calling the job done. And don’t forget regular maintenance—it’s the key to long-term performance. Whether you’re a first-time installer or a seasoned DIYer, this guide gives you everything you need to succeed. Stay cool, stay comfortable, and enjoy the relief your new LG air conditioner brings.
