This guide walks you through how to install LG split air conditioner units with clear, easy-to-follow steps. From planning and mounting to wiring and testing, you’ll gain the confidence to complete the installation safely and efficiently.
Key Takeaways
- Plan your installation carefully: Choose the right location for both indoor and outdoor units to ensure optimal airflow, accessibility, and minimal noise.
- Gather the right tools and materials: You’ll need a drill, level, wrench set, vacuum pump, refrigerant lines, and electrical supplies to complete the job.
- Follow safety protocols: Always turn off power at the main breaker and wear protective gear like gloves and safety glasses during installation.
- Properly mount the indoor unit: Use a sturdy wall bracket and ensure it’s level and securely anchored to support the unit’s weight.
- Connect refrigerant lines correctly: Flare the copper tubing, insulate it properly, and avoid kinks to maintain system efficiency.
- Test the system thoroughly: After installation, run a full cycle and check for leaks, unusual noises, or performance issues.
- Consider professional help if unsure: If you’re not confident with electrical or refrigerant work, hire a certified technician to avoid damage or injury.
How to Install LG Split Air Conditioner: A Complete Step-by-Step Guide
Installing an LG split air conditioner might seem like a daunting task, but with the right tools, preparation, and guidance, it’s a project many homeowners can tackle themselves. Whether you’re upgrading your cooling system or installing a new unit, this comprehensive guide will walk you through every step—from planning and preparation to final testing and troubleshooting.
In this guide, you’ll learn how to install LG split air conditioner units safely and efficiently. We’ll cover everything you need to know, including choosing the right location, mounting the indoor and outdoor units, connecting refrigerant lines, wiring the system, and performing a final check. By the end, you’ll have a fully functional, energy-efficient air conditioning system that keeps your home cool and comfortable.
Before you begin, it’s important to note that while DIY installation is possible, some steps—especially those involving electrical connections and refrigerant handling—require technical knowledge. If you’re not confident in your abilities, it’s always best to consult or hire a licensed HVAC technician. However, if you’re ready to take on the challenge, let’s get started.
Step 1: Gather Tools and Materials

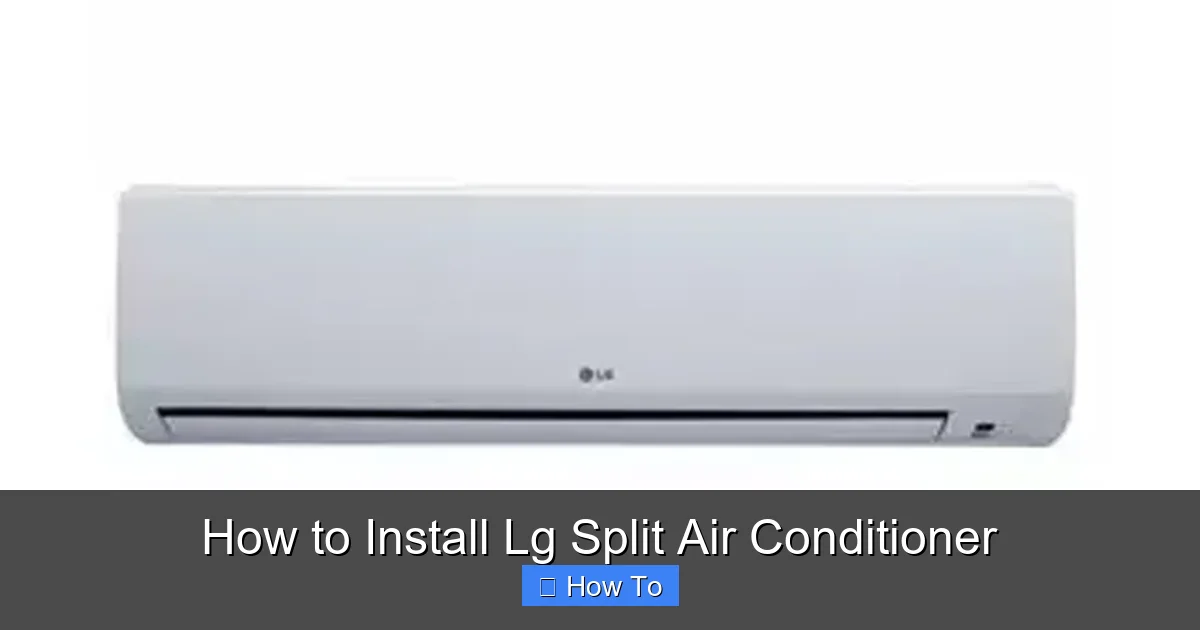

Visual guide about How to Install Lg Split Air Conditioner
Image source: yasirelectronics.com
Before you begin the installation, make sure you have all the necessary tools and materials on hand. Having everything ready will save time and prevent frustrating delays.
Essential Tools
- Power drill with drill bits (for masonry and wood)
- Level (preferably a 24-inch spirit level)
- Adjustable wrench set
- Pipe cutter or hacksaw
- Flaring tool (for copper tubing)
- Vacuum pump (for removing air and moisture from refrigerant lines)
- Manifold gauge set (to check pressure)
- Insulation tape and foam tubing
- Screwdrivers (Phillips and flathead)
- Measuring tape
- Safety gear (gloves, safety glasses, and closed-toe shoes)
Materials Needed
- LG split air conditioner unit (indoor and outdoor components)
- Mounting bracket for indoor unit
- Wall sleeve or conduit for refrigerant lines and wiring
- Copper refrigerant tubing (typically 1/4″ and 3/8″ for most LG models)
- Electrical wiring (check local codes for gauge requirements)
- Drain hose (for condensate removal)
- Sealant or silicone caulk (to seal wall penetrations)
- Anchor bolts or expansion anchors (for outdoor unit mounting)
- Insulation for refrigerant lines
Safety First
Always prioritize safety. Turn off the main power supply at the circuit breaker before starting any electrical work. Wear protective gloves and safety glasses, especially when drilling or handling sharp copper tubing. If you’re working at height, use a stable ladder and have someone assist you.
Step 2: Choose the Right Location
The success of your LG split air conditioner installation depends heavily on where you place the indoor and outdoor units. A poor location can lead to reduced efficiency, increased noise, and even system failure.
Indoor Unit Placement
The indoor unit should be installed on an interior wall, ideally in the center of the room for even cooling. Avoid placing it:
- Near heat sources like ovens, heaters, or direct sunlight
- Above electrical outlets or switches
- In areas with poor airflow, such as behind curtains or furniture
- Where it might collect dust or moisture
The ideal height for mounting the indoor unit is between 7 to 8 feet from the floor. This allows for optimal air distribution and makes maintenance easier.
Outdoor Unit Placement
The outdoor unit (condenser) should be placed on a flat, stable surface, such as a concrete slab or wall-mounted bracket. Choose a location that:
- Is well-ventilated and not obstructed by walls, fences, or plants
- Is at least 12 inches away from walls or obstacles for airflow
- Is protected from direct rain, snow, and extreme weather when possible
- Is accessible for future maintenance
- Is away from bedrooms or quiet areas to minimize noise
Avoid placing the outdoor unit in enclosed spaces or areas with poor drainage. Also, ensure it’s not near windows or doors where noise could be disruptive.
Step 3: Install the Indoor Unit Mounting Bracket
The mounting bracket is the foundation of your indoor unit installation. If it’s not secure, the unit could fall, causing damage or injury.
Mark the Bracket Position
Use the template provided in your LG installation kit to mark the screw holes on the wall. Hold the template against the wall at the desired height and use a level to ensure it’s straight. Mark the drill points with a pencil.
Drill Holes and Secure the Bracket
Using a power drill and appropriate bit, drill holes into the wall at the marked points. Insert wall anchors if you’re drilling into drywall or masonry. Then, align the bracket with the holes and secure it using the provided screws. Double-check that the bracket is level and tightly fastened.
Prepare the Wall for Penetration
Once the bracket is in place, determine where the refrigerant lines, drain hose, and electrical wiring will pass through the wall. Use a hole saw or drill to create a 2.5 to 3-inch diameter hole at a slight downward angle (about 5 degrees) toward the outside. This slope helps condensate drain properly.
Insert a wall sleeve or conduit into the hole to protect the lines and prevent pests from entering.
Step 4: Connect the Refrigerant Lines
The refrigerant lines are critical to the performance of your LG split air conditioner. Improper connections can lead to leaks, reduced cooling, or system damage.
Cut and Flare the Copper Tubing
Measure the distance between the indoor and outdoor units and cut the copper tubing to the required length. Use a pipe cutter for a clean, straight cut. Deburr the edges to remove any sharp fragments.
Next, use a flaring tool to create a flared end on each piece of tubing. This ensures a tight, leak-free connection to the unit’s service valves. Be careful not to over-flare or crack the copper.
Connect the Lines to the Indoor Unit
Attach the flared ends of the copper tubing to the indoor unit’s service valves. Use a wrench to tighten the flare nuts securely, but avoid over-tightening, which can damage the threads.
Run the Lines Through the Wall
Feed the refrigerant lines, drain hose, and electrical wiring through the wall sleeve from the indoor side to the outdoor side. Leave enough slack on both ends for connections.
Insulate the Refrigerant Lines
Wrap the refrigerant lines with foam insulation tubing to prevent condensation and energy loss. Secure the insulation with electrical tape or zip ties. Make sure there are no gaps or exposed sections.
Step 5: Install the Outdoor Unit
The outdoor unit must be securely mounted to prevent vibration, noise, and movement during operation.
Prepare the Mounting Surface
If using a concrete pad, ensure it’s level and extends at least 6 inches beyond the unit on all sides. For wall mounting, use a sturdy bracket rated for the unit’s weight.
Mount the Outdoor Unit
Carefully lift the outdoor unit and place it on the pad or bracket. Use anchor bolts or expansion anchors to secure it to the surface. Check that the unit is level and stable.
Connect the Refrigerant Lines
Attach the copper tubing to the outdoor unit’s service valves. Again, use a wrench to tighten the flare nuts. Ensure the connections are snug but not over-tightened.
Connect the Drain Hose
Attach the drain hose to the outdoor unit’s drain port. Route the hose downward to a suitable drainage point, such as a floor drain or outside area. Avoid sharp bends or kinks that could block water flow.
Step 6: Electrical Wiring
Electrical connections must be made correctly to ensure safe and reliable operation. If you’re not experienced with electrical work, consult a licensed electrician.
Turn Off Power
Before making any connections, turn off the power at the main circuit breaker. Use a voltage tester to confirm that the power is off.
Connect the Wiring
Run the electrical cable from the indoor unit through the wall sleeve to the outdoor unit. Follow the wiring diagram in your LG installation manual. Typically, you’ll connect:
- L (Live) wire
- N (Neutral) wire
- Ground wire
Use wire nuts or terminal blocks to secure the connections. Make sure all wires are properly insulated and protected.
Install a Disconnect Switch
Mount a disconnect switch near the outdoor unit for safety and maintenance. This allows you to quickly cut power to the unit without accessing the main panel.
Step 7: Evacuate the Refrigerant Lines
Before charging the system with refrigerant, you must remove air and moisture from the lines using a vacuum pump.
Connect the Manifold Gauge
Attach the manifold gauge set to the service ports on the outdoor unit. Connect the yellow hose to the vacuum pump.
Run the Vacuum Pump
Turn on the vacuum pump and open the valves on the manifold gauge. Let the pump run for at least 15–30 minutes to achieve a vacuum of 500 microns or lower. This ensures all air and moisture are removed.
Close Valves and Disconnect
Once the vacuum is achieved, close the valves and turn off the pump. Wait a few minutes to ensure the pressure doesn’t rise, indicating no leaks. Disconnect the hoses.
Step 8: Test the System
Now it’s time to power up your LG split air conditioner and test its performance.
Turn On Power
Restore power at the main breaker. Turn on the disconnect switch near the outdoor unit.
Set the Thermostat
Use the remote control to set the air conditioner to cooling mode. Set the temperature a few degrees below room temperature.
Check for Proper Operation
Listen for the indoor and outdoor fans to start. Feel for cool air coming from the indoor unit. Check that the drain hose is expelling condensate.
Inspect for Leaks
Use a leak detector or soapy water to check all refrigerant connections for bubbles, which indicate leaks. Tighten any loose fittings if necessary.
Monitor Performance
Let the system run for at least 30 minutes. Check that it cools the room effectively and that there are no unusual noises or vibrations.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here are some common issues and how to fix them:
Unit Not Cooling
- Check if the air filter is dirty and clean or replace it.
- Ensure the thermostat is set correctly.
- Verify that the refrigerant lines are properly connected and not kinked.
- Check for refrigerant leaks or low charge.
Water Leaking Indoors
- Inspect the drain hose for clogs or improper slope.
- Make sure the indoor unit is level.
- Check if the condensate pump (if used) is working.
Unusual Noises
- Rattling may indicate loose mounting brackets or panels.
- Hissing could signal a refrigerant leak.
- Banging or clicking might be due to loose components or electrical issues.
Unit Not Turning On
- Verify that power is connected and the breaker is on.
- Check the remote control batteries.
- Inspect wiring connections for loose or damaged wires.
If you’re unable to resolve an issue, contact LG customer support or a certified technician.
Maintenance Tips for Long-Term Performance
To keep your LG split air conditioner running efficiently, follow these maintenance tips:
- Clean or replace the air filter every 1–2 months.
- Inspect and clean the outdoor unit coils annually.
- Check refrigerant lines and insulation for damage.
- Ensure the drain hose is clear and flowing properly.
- Schedule professional servicing every 1–2 years.
Regular maintenance extends the life of your unit and improves energy efficiency.
Conclusion
Installing an LG split air conditioner is a rewarding project that can save you money and give you greater control over your home’s cooling system. By following this step-by-step guide on how to install LG split air conditioner, you’ve learned how to choose the right location, mount the units securely, connect refrigerant lines, wire the system, and test for proper operation.
Remember, safety is paramount. Always turn off power before working on electrical components, and don’t hesitate to seek professional help if you’re unsure about any step. With proper installation and regular maintenance, your LG split air conditioner will provide reliable, energy-efficient cooling for years to come.
Whether you’re a DIY enthusiast or just looking to understand the process, this guide equips you with the knowledge and confidence to tackle the installation with success.
