Installing an LG 14000 BTU air conditioner doesn’t have to be overwhelming. This guide walks you through every step—from choosing the right location to testing your unit—so you can enjoy cool, comfortable air with confidence.
Key Takeaways
- Choose the right window or wall location: Ensure it’s structurally sound, near an electrical outlet, and allows proper airflow.
- Use the correct tools and safety gear: A drill, level, screwdriver, gloves, and safety glasses are essential for a safe install.
- Follow the manufacturer’s manual closely: LG provides model-specific instructions—don’t skip this step.
- Seal gaps to prevent energy loss: Use foam weatherstripping or sealant to block air leaks around the unit.
- Test the unit before finalizing installation: Run a quick cooling cycle to check for leaks, noise, or errors.
- Consider professional help if unsure: Complex wall installations or electrical work may require a certified technician.
- Maintain your unit regularly: Clean filters monthly and inspect seals annually for peak performance.
Introduction: Why Install an LG 14000 BTU Air Conditioner?
If you’re looking to cool a medium to large room—think 500 to 700 square feet—an LG 14000 BTU air conditioner is a powerful, energy-efficient choice. Known for quiet operation, smart features, and reliable performance, LG’s 2026 models come with improved inverter technology and Wi-Fi connectivity. Whether you’re upgrading from an older unit or installing your first AC, this guide will walk you through the entire process safely and efficiently.
By the end of this guide, you’ll know exactly how to install your LG 14000 BTU air conditioner, avoid common mistakes, and ensure it runs smoothly for years. We’ll cover window and through-the-wall installations, essential tools, safety tips, and troubleshooting. Let’s get started!
What You’ll Need Before Starting

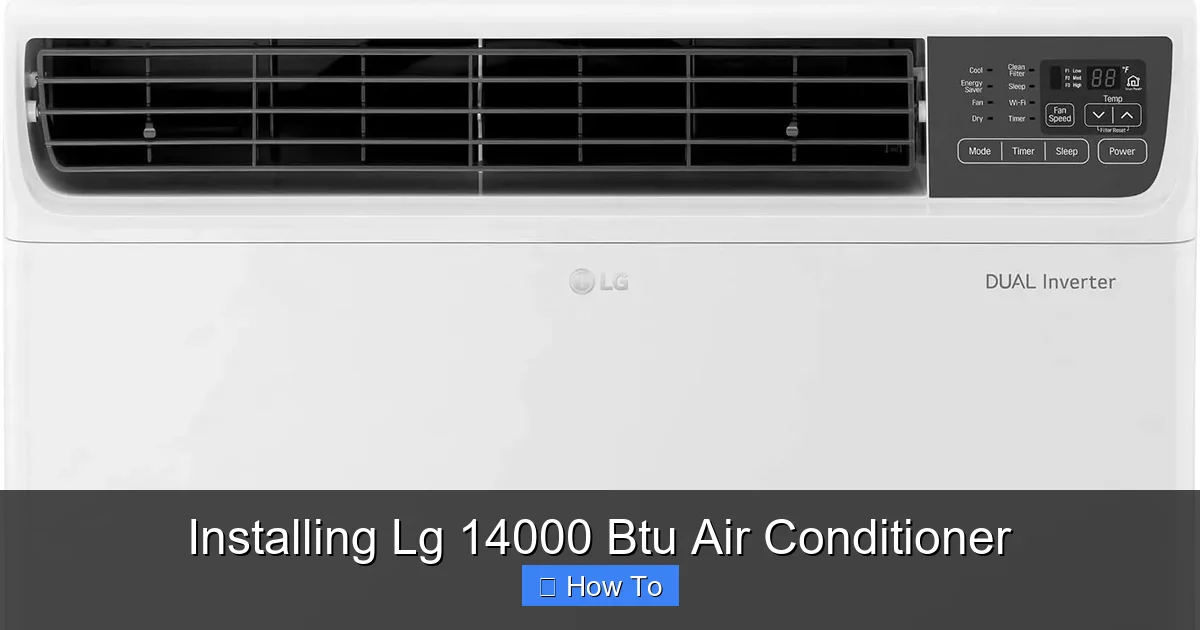

Visual guide about Installing Lg 14000 Btu Air Conditioner
Image source: hvacsolvers.com
Before you unbox your LG 14000 BTU air conditioner, gather these tools and materials. Having everything ready saves time and reduces frustration.
Tools and Equipment
- Power drill with drill bits
- Level (a 2-foot level works best)
- Measuring tape
- Screwdriver set (Phillips and flathead)
- Adjustable wrench
- Utility knife
- Pencil or marker
Safety Gear
- Safety glasses
- Work gloves
- Sturdy ladder (if installing above ground level)
Installation Materials
- Mounting brackets (included with most LG models)
- Screws and wall anchors (check your model’s kit)
- Foam weatherstripping or sealant
- Support bracket or shelf (for window units)
- Extension cord (only if absolutely necessary and rated for AC use)
Optional but Helpful
- Second person to help lift the unit
- Vacuum with hose attachment (for cleaning the area)
- Smartphone to scan QR codes in the manual
Step 1: Choose the Right Location
Picking the perfect spot is crucial for performance and safety. Here’s what to consider:
Window Installation
For window units, choose a window that:
- Faces north or east (to avoid direct afternoon sun)
- Is structurally strong and can support the unit’s weight (LG 14000 BTU units typically weigh 70–85 lbs)
- Has easy access to a grounded electrical outlet (within 6 feet)
- Allows the window to close securely around the unit
Avoid windows near heat sources like grills or exhaust vents.
Through-the-Wall Installation
If you’re installing through a wall:
- Choose an exterior wall with minimal obstructions
- Ensure the wall is at least 6 inches thick (standard for most homes)
- Check for electrical wiring, plumbing, or studs behind the wall using a stud finder
- Plan for proper drainage—slope the unit slightly outward (about 1/4 inch per foot)
Pro Tip: Use the LG mobile app (available in 2026) to scan your room and get installation recommendations based on room size and layout.
Step 2: Prepare the Installation Site
A clean, level surface ensures a secure fit.
For Window Units
- Open the window and remove the screen.
- Clean the window frame and sill thoroughly.
- Measure the window opening to confirm it matches the unit’s dimensions (check your manual).
- If needed, trim the window’s side panels using a utility knife.
For Wall Units
- Mark the cutout area using the template provided in the LG manual.
- Drill pilot holes in each corner, then use a reciprocating saw to cut through the wall.
- Remove debris and vacuum the area.
- Install a metal sleeve or frame if required by your model.
Safety Note: Always turn off power at the circuit breaker before working near electrical outlets or wiring.
Step 3: Install the Mounting Hardware
This step ensures your AC stays firmly in place.
Window Unit Brackets
- Attach the side brackets to the window frame using the provided screws.
- Use a level to ensure they’re even.
- Secure the support bracket underneath the window sill if included.
Wall Unit Frame
- Insert the metal sleeve into the wall opening.
- Secure it with screws driven into the wall studs.
- Apply exterior-grade sealant around the edges to prevent water intrusion.
Pro Tip: If your wall is made of brick or concrete, use masonry anchors and a hammer drill for secure mounting.
Step 4: Position and Secure the Air Conditioner
Now it’s time to lift and place the unit.
Lifting Safely
- Always lift with your legs, not your back.
- Have a helper on the other side—this isn’t a one-person job.
- Use the carrying handles on the unit (if available).
Placing the Unit
- Carefully slide the AC into the window or wall opening.
- Ensure the front of the unit is level and the back slopes slightly outward (for drainage).
- Close the window sash onto the unit’s top seal.
- Extend the side panels to fill the gaps.
Securing the Unit
- Use the provided screws to attach the unit to the window frame or wall sleeve.
- Do not overtighten—this can crack plastic parts.
- Double-check that the unit doesn’t wobble.
Step 5: Seal Gaps and Prevent Air Leaks
Even small gaps can reduce efficiency by up to 20%.
Window Sealing
- Apply foam weatherstripping along the top and sides where the unit meets the window.
- Use silicone caulk on the exterior to seal any cracks.
- Install an interior window seal kit (available at hardware stores) for extra insulation.
Wall Sealing
- Fill gaps around the sleeve with expanding foam sealant.
- Cover with interior trim and paint to match your wall.
- Check for drafts using a lit candle or incense stick—if the flame flickers, there’s a leak.
Step 6: Connect Power and Test the Unit
Safety first—electrical work must be done correctly.
Power Connection
- Plug the unit directly into a dedicated 20-amp outlet.
- Do not use extension cords unless absolutely necessary—and only use heavy-duty, outdoor-rated ones.
- If hardwiring (for wall units), hire a licensed electrician to connect to a dedicated circuit.
Initial Test Run
- Turn on the unit using the remote or control panel.
- Set the temperature 5–10 degrees below room temperature.
- Listen for unusual noises (grinding, rattling) or vibrations.
- Check for cool air output within 5–10 minutes.
- Inspect for water leaks inside or outside.
If everything works, you’re all set! If not, move to the troubleshooting section.
Troubleshooting Common Issues
Even with careful installation, problems can occur.
Unit Won’t Turn On
- Check the circuit breaker—reset if tripped.
- Ensure the outlet has power (test with another device).
- Verify the remote has batteries and is paired.
Not Cooling Enough
- Clean or replace the air filter (dirty filters block airflow).
- Check for blocked vents or obstructions.
- Ensure the unit is the right size for the room.
Water Leaking Inside
- Make sure the unit is sloped outward.
- Clear the drain hole if clogged.
- Check for ice buildup—this may indicate low refrigerant (call a technician).
Excessive Noise
- Tighten loose screws or panels.
- Ensure the unit is level and not vibrating against the frame.
- Place rubber pads under the unit to reduce vibration.
Conclusion: Enjoy Your Cool, Comfortable Space
Installing an LG 14000 BTU air conditioner in 2026 is a manageable DIY project when you follow the right steps. From choosing the best location to sealing gaps and testing performance, each phase ensures your unit runs efficiently and safely. With LG’s advanced features like smart controls and energy-saving modes, you’ll enjoy reliable cooling all season long.
Remember, if you’re ever unsure—especially with electrical or structural work—don’t hesitate to call a professional. A proper installation not only keeps you cool but also extends the life of your AC and lowers your energy bills.
Now that your LG 14000 BTU air conditioner is up and running, sit back, relax, and enjoy the refreshing breeze!
