This guide walks you through the process of how to take off the frame of an LG air conditioner safely and efficiently. Whether you’re cleaning, repairing, or replacing parts, we’ll show you the right tools, steps, and safety tips to get the job done without damage.
Key Takeaways
- Safety first: Always unplug the unit and wear protective gear before starting any disassembly.
- Use the right tools: A Phillips screwdriver, flathead screwdriver, and needle-nose pliers are essential for most LG AC models.
- Follow model-specific instructions: Frame removal varies slightly between window, split, and portable LG units—check your user manual.
- Label screws and parts: Keep track of hardware and components to avoid confusion during reassembly.
- Work in a clean, well-lit space: This reduces the risk of losing small parts and helps you see connectors clearly.
- Take photos during disassembly: Visual references make reassembly much easier and faster.
- Don’t force components: If something won’t budge, recheck for hidden screws or clips before applying pressure.
How to Take Off Frame of LG Air Conditioner: A Complete 2026 Guide
If you’re looking to clean your LG air conditioner, replace a filter, fix a noisy fan, or access internal components, you’ll likely need to remove the outer frame. While it might seem intimidating at first, taking off the frame of an LG air conditioner is a manageable task—especially with the right guidance.
In this comprehensive 2026 guide, we’ll walk you through the entire process of safely removing the frame from various LG air conditioner models, including window units, split systems, and portable ACs. You’ll learn which tools to use, how to avoid common mistakes, and how to reassemble everything without a hitch. Whether you’re a DIY enthusiast or a first-time fixer, this step-by-step tutorial will give you the confidence to tackle the job like a pro.
We’ll also cover essential safety tips, troubleshooting advice, and answers to frequently asked questions so you can complete the task efficiently and without damaging your unit. By the end, you’ll not only know how to take off the frame of your LG air conditioner—you’ll understand why each step matters.
Why Remove the Frame of Your LG Air Conditioner?

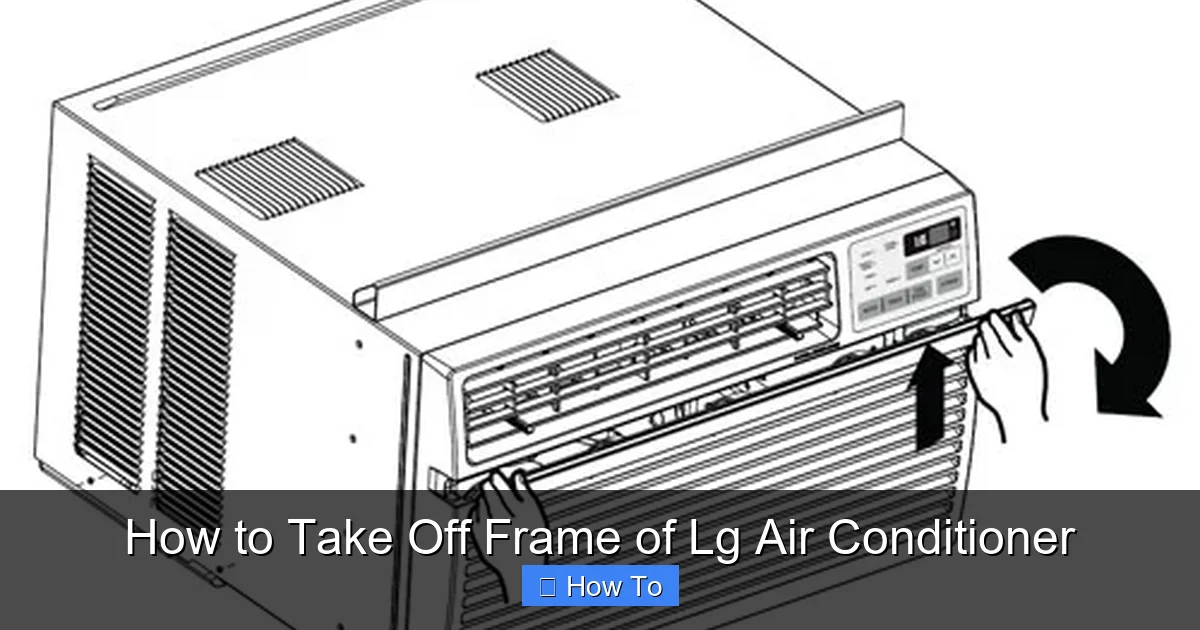

Visual guide about How to Take Off Frame of Lg Air Conditioner
Image source: gscs.lge.com
Before diving into the removal process, it’s helpful to understand why you might need to take off the frame in the first place. The outer frame, also known as the front panel or casing, protects the internal components of your air conditioner. While it’s designed to stay in place during normal operation, there are several valid reasons to remove it:
- Deep cleaning: Over time, dust, dirt, and debris accumulate behind the front panel, reducing airflow and efficiency. Removing the frame allows you to clean the evaporator coils, fan blades, and filters thoroughly.
- Filter replacement: While some filters are accessible without removing the frame, others—especially in older or compact models—require panel removal for full access.
- Repairing internal components: If your AC is making strange noises, not cooling properly, or leaking water, you may need to inspect the fan motor, compressor, or drainage system—all of which are behind the frame.
- Upgrading parts: Some users upgrade their LG AC units with smart sensors, improved filters, or noise-reduction kits, which often require frame removal.
- Seasonal maintenance: If you store your window or portable AC during off-seasons, removing the frame lets you inspect and clean internal parts before reinstallation.
Understanding your goal will help you prepare the right tools and approach the task with confidence.
Safety Precautions Before Starting
Safety should always be your top priority when working with electrical appliances. Air conditioners contain live components, refrigerants, and sharp edges, so taking precautions is essential. Here’s what you need to do before removing the frame:
1. Turn Off and Unplug the Unit
Never attempt to disassemble your LG air conditioner while it’s plugged in. Even if the unit is turned off via the remote or control panel, there may still be residual power in the capacitors.
– Locate the power cord and unplug it from the wall outlet.
– For window or split units hardwired into your home’s electrical system, turn off the circuit breaker that supplies power to the AC. Use a voltage tester to confirm the power is off.
2. Wear Protective Gear
Protect yourself from dust, sharp edges, and potential electrical hazards:
– Wear safety goggles to shield your eyes from debris.
– Use work gloves (preferably cut-resistant) to protect your hands.
– Consider a dust mask, especially if you’re cleaning mold or heavy buildup.
3. Work in a Clean, Well-Lit Area
Choose a spacious, dry location with good lighting. Natural light or a bright work lamp helps you see small screws and connectors clearly. Avoid working on carpet, where tiny parts can easily get lost.
4. Gather Your Tools
Having the right tools on hand saves time and frustration. Here’s a basic toolkit for frame removal:
- Phillips-head screwdriver (size #2 is most common)
- Flathead screwdriver (for prying clips or stubborn parts)
- Needle-nose pliers (for gripping small screws or wires)
- Magnetic tray or small container (to hold screws)
- Flashlight or headlamp (for better visibility)
- Camera or smartphone (to take reference photos)
5. Check Your Model Number
LG air conditioners come in many models, and frame removal steps can vary. Locate your model number—usually found on a sticker inside the front panel, on the side of the unit, or in the user manual. Knowing your exact model helps you find specific instructions and avoid mistakes.
Step-by-Step Guide: How to Remove the Frame
Now that you’re prepared, let’s walk through the process of removing the frame from your LG air conditioner. While steps may vary slightly depending on your model, the general procedure is consistent across most units.
Step 1: Remove the Front Grille or Filter Cover
Most LG air conditioners have a removable front grille or filter cover that must be taken off before accessing the frame screws.
– Look for a latch or tab at the top or bottom of the grille.
– Gently press or lift the latch while pulling the grille away from the unit.
– Some models have a filter behind the grille—remove it and set it aside for cleaning or replacement.
Tip: If the grille feels stuck, don’t force it. Check for hidden screws or clips along the edges.
Step 2: Locate and Remove the Frame Screws
With the grille off, you’ll see the main frame holding the front panel in place. Screws are typically located:
– Along the top edge of the frame
– On the sides, near the corners
– At the bottom, sometimes hidden under rubber feet or caps
Use your Phillips screwdriver to carefully remove all visible screws. Place them in your magnetic tray to avoid losing them.
Note: Some LG models use plastic clips in addition to screws. These may require gentle prying with a flathead screwdriver.
Step 3: Disconnect Any Attached Wires or Cables
Before fully removing the frame, check for wires connected to the front panel. These may include:
– Control panel wires (for buttons or displays)
– LED indicator lights
– Temperature sensors
Carefully disconnect these connectors by pressing the release tab and pulling them apart. Do not yank the wires—this can damage the connectors.
Tip: Take a photo of the wiring layout before disconnecting anything. This will help during reassembly.
Step 4: Gently Remove the Frame
Once all screws are removed and wires are disconnected, the frame should lift away from the unit.
– Hold the frame firmly with both hands.
– Tilt it slightly outward and lift it up and away from the AC body.
– Be mindful of any remaining clips or tabs that may still be engaged.
Warning: Do not pull too hard. If the frame resists, double-check for missed screws or clips.
Step 5: Set the Frame Aside Safely
Place the removed frame on a soft surface, such as a towel or cardboard, to prevent scratches. Keep it away from dust and moisture.
Now you have full access to the internal components of your LG air conditioner. You can clean, inspect, or repair as needed.
Model-Specific Instructions
While the general steps apply to most LG air conditioners, certain models have unique features. Here’s how to handle different types:
LG Window Air Conditioners (e.g., LW8016ER, LW1216ER)
– These units typically have a front panel secured by 4–6 screws.
– The control panel is often attached with a ribbon cable—disconnect it carefully.
– Some models have a bottom hinge that allows the frame to swing open like a door.
LG Split Air Conditioners (e.g., LS120HSV5, LS180HHV5)
– The indoor unit’s front panel is usually held by clips and a few screws.
– You may need to remove the air deflector (louver) first.
– Be extra cautious with the display panel—it’s often fragile.
LG Portable Air Conditioners (e.g., LP1419IVSM, LP0821WSR)
– The front grille is often snap-on and requires no tools.
– The main frame may be integrated with the top cover—remove both together.
– Check for exhaust hose connections that may interfere with removal.
Always refer to your user manual or LG’s official support site for model-specific diagrams.
Cleaning and Maintenance Tips
Now that the frame is off, take the opportunity to give your AC a thorough cleaning:
Clean the Evaporator Coils
Use a soft brush or coil cleaner spray to remove dust and grime. Dirty coils reduce efficiency and can cause freezing.
Wipe Down the Fan Blades
Dust buildup on the fan can cause imbalance and noise. Use a damp cloth or compressed air to clean the blades.
Check the Drainage System
Ensure the drain pan and hose are clear of clogs. Standing water can lead to mold and leaks.
Inspect Electrical Connections
Look for loose wires, corrosion, or burnt spots. If you notice damage, consult a professional.
Troubleshooting Common Issues
Even with careful disassembly, you might run into problems. Here’s how to handle them:
Problem: Frame Won’t Come Off
– Recheck for hidden screws under labels, rubber feet, or decorative covers.
– Look for plastic clips that may require gentle prying.
– Consult your manual or LG’s online support for your specific model.
Problem: Wires Won’t Disconnect
– Ensure you’re pressing the release tab correctly.
– Wiggle the connector gently while pulling—don’t twist.
– If a wire is damaged, contact LG support or a technician.
Problem: Screws Are Stripped or Missing
– Use a rubber band between the screwdriver and screw head for better grip.
– Replace missing screws with identical ones from a hardware store.
– Avoid over-tightening during reassembly.
Problem: Frame Doesn’t Fit Back Properly
– Double-check that all internal components are seated correctly.
– Ensure wires are not pinched or obstructed.
– Reattach clips and screws in the correct order.
Reassembling the Frame
Once your maintenance or repair is complete, it’s time to put everything back together:
1. Reconnect all wires and cables, referring to your photos if needed.
2. Align the frame with the unit and press it into place.
3. Secure it with screws, starting from the top and working downward.
4. Reattach the front grille or filter cover.
5. Plug in the unit and test it to ensure it’s working properly.
Tip: Run the AC for 10–15 minutes to check for unusual noises or airflow issues.
When to Call a Professional
While removing the frame is a DIY-friendly task, some situations require expert help:
– If you suspect refrigerant leaks (hissing sounds, oily residue).
– If electrical components appear damaged or burnt.
– If the unit still doesn’t work after reassembly.
– If you’re uncomfortable handling wires or internal parts.
LG offers certified technicians and extended warranty support—don’t hesitate to reach out if needed.
Conclusion
Knowing how to take off the frame of your LG air conditioner empowers you to maintain, clean, and repair your unit with confidence. By following this 2026 guide, you’ve learned the essential steps, safety tips, and troubleshooting strategies to get the job done right.
Remember: always prioritize safety, use the correct tools, and take your time. With a little patience and attention to detail, you can extend the life of your air conditioner and keep it running efficiently for years to come.
Whether you’re tackling seasonal cleaning or fixing a minor issue, this skill is a valuable addition to your home maintenance toolkit. Now go ahead—take control of your comfort and enjoy cooler, cleaner air all year long.
