This guide walks you through how to install LG 8000 BTU air conditioner like a pro. From choosing the right spot to testing your unit, we cover everything you need for a safe and effective setup.
Key Takeaways
- Choose the right location: Pick a shaded, sturdy wall with proper clearance and access to power.
- Gather essential tools: You’ll need a drill, level, screwdriver, tape measure, and safety gear.
- Follow the manual: Always refer to your LG 8000 BTU AC manual for model-specific instructions.
- Seal gaps properly: Use foam weatherstripping or sealant to prevent air leaks and improve efficiency.
- Test before finishing: Run the unit and check for leaks, noise, or poor cooling before finalizing the install.
- Prioritize safety: Turn off power, wear gloves and goggles, and never work alone on heavy lifting.
- Consider professional help: If unsure about electrical or structural work, hire a licensed technician.
How to Install LG 8000 BTU Air Conditioner
Installing an LG 8000 BTU air conditioner might seem intimidating at first, but with the right tools, preparation, and step-by-step guidance, it’s a manageable DIY project for most homeowners. Whether you’re replacing an old unit or setting up cooling in a new space, this comprehensive guide will walk you through the entire process—from planning and preparation to testing and troubleshooting.
In this guide, you’ll learn how to install LG 8000 BTU air conditioner safely and efficiently. We’ll cover everything from choosing the best location and gathering tools to mounting the unit, connecting power, and sealing gaps. By the end, you’ll have a cool, quiet, and energy-efficient air conditioner up and running.
Let’s get started!
Why Choose an LG 8000 BTU Air Conditioner?

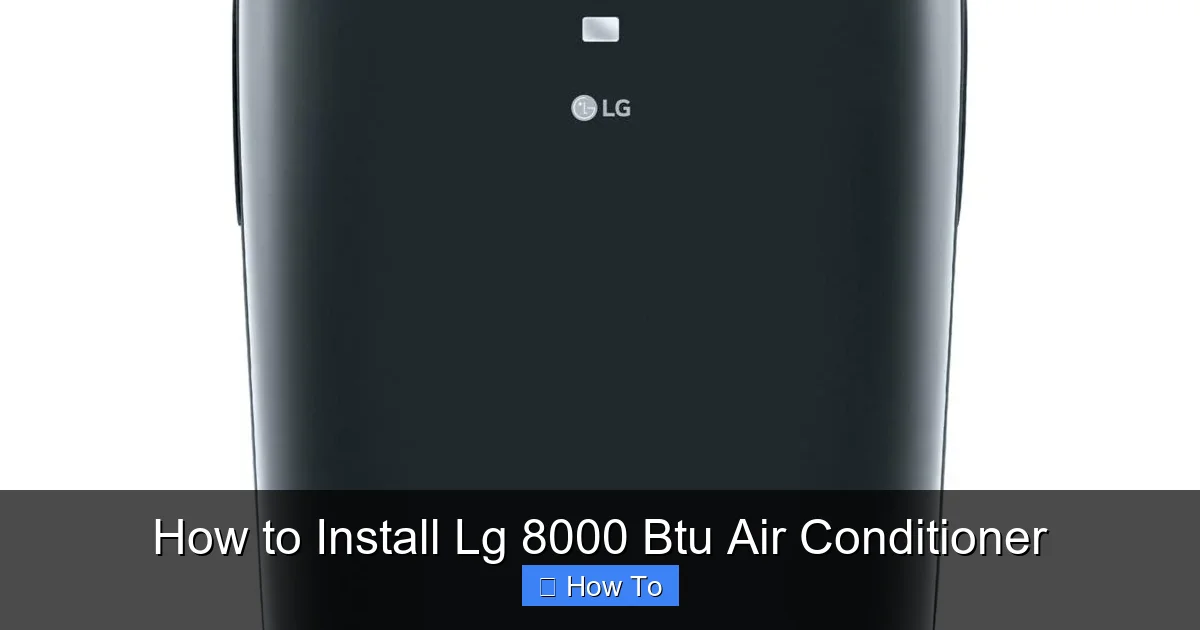

Visual guide about How to Install Lg 8000 Btu Air Conditioner
Image source: i03.hsncdn.com
Before diving into the installation, it’s helpful to understand why the LG 8000 BTU model is a popular choice. This capacity is ideal for rooms between 300 and 350 square feet—think bedrooms, home offices, or small living areas. LG’s 8000 BTU units are known for their energy efficiency, quiet operation, and smart features like Wi-Fi connectivity and compatibility with voice assistants.
These window or through-the-wall units are designed for easy installation and come with detailed manuals and mounting hardware. Plus, LG offers reliable customer support and warranties, giving you peace of mind.
Tools and Materials You’ll Need
Having the right tools on hand will make the installation smoother and safer. Here’s a checklist of what you’ll need:
- Power drill with drill bits
- Phillips and flathead screwdrivers
- Tape measure
- Level (a 2-foot level works best)
- Adjustable wrench
- Pencil or marker
- Safety gloves and goggles
- Ladder (if installing above ground level)
- Foam weatherstripping or silicone sealant
- Mounting brackets (usually included with the unit)
- Screws and wall anchors (check your manual for specs)
- Electrical tape and wire nuts (if hardwiring)
- Vacuum cleaner or brush (for cleaning the area)
Pro Tip: If your model includes a remote control or smart features, make sure the batteries are installed and the remote is synced before finalizing the install.
Step 1: Choose the Right Location
The success of your installation starts with picking the perfect spot. A poorly chosen location can lead to inefficiency, noise, or even damage to the unit.
Consider Window or Wall Placement
Most LG 8000 BTU models are designed for window installation, but some can be installed through the wall. Check your model number to confirm which type you have.
For window units:
- Choose a window that faces north or east to minimize direct sunlight.
- Ensure the window opens and closes smoothly.
- Make sure there’s at least 6–8 inches of clearance on both sides of the unit.
For through-the-wall installations:
- Select an exterior wall that’s structurally sound and not near plumbing or electrical lines.
- Avoid areas with heavy rain exposure or strong winds.
Check for Obstructions
Look for anything that might block airflow, such as:
- Trees or shrubs
- Curtains or blinds
- Furniture placed too close to the window
Also, ensure the area outside has space for the unit’s exhaust. You don’t want hot air blowing back into the room.
Verify Electrical Access
Your LG 8000 BTU air conditioner requires a dedicated 115-volt circuit. Check that there’s an outlet within reach—preferably one that’s not shared with other high-power appliances like microwaves or space heaters.
Safety Note: Never plug the AC into an extension cord. Use a heavy-duty power cord if needed, but direct outlet connection is best.
Step 2: Prepare the Installation Area
Before lifting the unit, prepare the space to ensure a smooth installation.
Clean the Window or Wall Opening
Remove dirt, dust, and debris from the window frame or wall opening. Use a vacuum or damp cloth to clean the area thoroughly. This helps create a tight seal and prevents moisture buildup.
Measure the Opening
Use your tape measure to confirm the window or wall opening matches the dimensions specified in your LG manual. Most 8000 BTU units require a window width of 23–36 inches and a height of at least 14–16 inches.
If the opening is too wide, you’ll need side panels (usually included) to fill the gaps. If it’s too narrow, you may need to adjust the window or consider a different model.
Install the Window Mounting Bracket (If Applicable)
Some LG models come with a mounting bracket that attaches to the windowsill. Follow these steps:
- Place the bracket on the sill and mark screw holes with a pencil.
- Drill pilot holes to prevent wood splitting.
- Secure the bracket with screws provided in the kit.
- Use a level to ensure it’s perfectly horizontal.
Step 3: Install the Air Conditioner Unit
Now it’s time to lift and secure the AC. This is the most physically demanding part, so take your time and ask for help if needed.
Lift the Unit Safely
The LG 8000 BTU unit typically weighs between 50 and 70 pounds. Lifting it alone can cause injury. If possible, have a friend assist you.
- Wear gloves to improve grip.
- Bend your knees, not your back.
- Keep the unit level to avoid spilling refrigerant (though most units are sealed).
Position the Unit in the Window
Carefully slide the unit into the window opening. The front of the AC should face into the room, and the back should extend outside.
- Lower the window sash onto the top of the unit (if it’s a window unit).
- Make sure the unit sits flat on the sill or bracket.
- Check that the front panel is level and aligned with the window frame.
Secure the Unit
Once in place, secure the AC to prevent it from falling.
- Use the included L-brackets or support brackets to anchor the unit to the window frame.
- Drill pilot holes and screw the brackets into place.
- For added stability, you can attach support legs from the bottom of the unit to the windowsill.
Pro Tip: Don’t overtighten screws—this can crack the plastic housing or damage the window frame.
Step 4: Seal Gaps and Prevent Air Leaks
A poorly sealed unit wastes energy and reduces cooling efficiency. Sealing gaps is a critical step.
Install Side Panels
Most LG 8000 BTU units come with adjustable side panels. Slide them into the side channels of the AC and extend them to fill the gap between the unit and the window frame.
- Secure the panels with screws or clips.
- Ensure they’re snug but not forced.
Apply Weatherstripping
Use foam weatherstripping or silicone sealant to seal any remaining gaps.
- Cut the foam to size and press it into place along the top, sides, and bottom of the unit.
- For exterior gaps, use exterior-grade silicone caulk to prevent water intrusion.
Check the Bottom Seal
Some models have a bottom seal or drip pan. Make sure it’s properly aligned and not obstructed. This helps channel condensation outside.
Step 5: Connect Power and Test the Unit
With the unit securely in place and sealed, it’s time to power it up.
Plug In the Unit
Plug the AC into a dedicated outlet. Make sure the cord isn’t pinched or stretched.
Safety Reminder: If your model requires hardwiring, turn off the power at the breaker and consult a licensed electrician. Never attempt electrical work unless you’re qualified.
Turn On the Air Conditioner
Press the power button and set the thermostat to a cool temperature. Listen for the compressor to start and feel for cool air coming from the vents.
Check for Proper Operation
Run the unit for 10–15 minutes and observe:
- Is cool air blowing steadily?
- Are there any unusual noises (grinding, rattling, buzzing)?
- Is water dripping inside the room? (It should drain outside.)
- Is the remote control working (if applicable)?
If everything looks good, you’re almost done!
Step 6: Final Adjustments and Maintenance Tips
Now that your LG 8000 BTU air conditioner is running, take a few final steps to ensure long-term performance.
Adjust the Louvers
Use the manual or remote to adjust the airflow direction. Point the louvers upward to circulate cool air evenly throughout the room.
Set a Schedule (If Smart-Enabled)
If your model has Wi-Fi or a timer, use the LG ThinQ app or control panel to set a cooling schedule. This saves energy and keeps your room comfortable.
Clean the Filter Monthly
A dirty filter reduces airflow and efficiency. Remove the front panel, take out the filter, and rinse it with water. Let it dry completely before reinserting.
Inspect the Unit Seasonally
Before each cooling season, check for:
- Cracks or damage to the housing
- Loose screws or brackets
- Blocked drainage holes
- Pest infestations (especially in wall units)
Troubleshooting Common Installation Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Unit Won’t Turn On
- Check the power outlet with another device.
- Ensure the circuit breaker hasn’t tripped.
- Verify the remote batteries are fresh.
Not Cooling Enough
- Clean or replace the air filter.
- Check for blocked vents or closed windows/doors.
- Ensure the thermostat is set low enough.
Water Leaking Inside
- Make sure the unit is level—tilt it slightly backward so water drains outside.
- Clear clogged drainage holes with a pipe cleaner.
- Check that the bottom seal is intact.
Loud or Unusual Noises
- Tighten loose screws or brackets.
- Ensure the unit isn’t vibrating against the window frame.
- Contact LG support if the compressor is making grinding sounds.
Remote Control Not Working
- Replace the batteries.
- Make sure there’s no obstruction between the remote and the unit.
- Reset the remote by removing batteries for 1 minute.
When to Call a Professional
While many homeowners can install an LG 8000 BTU air conditioner themselves, some situations call for expert help.
- You’re unsure about electrical wiring or circuit requirements.
- The wall or window structure seems weak or damaged.
- You need to cut a new hole in an exterior wall.
- The unit is too heavy for you to lift safely.
- You encounter refrigerant leaks or compressor issues.
Licensed HVAC technicians have the tools and training to handle complex installations safely and efficiently.
Conclusion
Installing an LG 8000 BTU air conditioner doesn’t have to be a daunting task. With careful planning, the right tools, and attention to detail, you can enjoy cool, comfortable air in just a few hours.
Remember to choose the right location, follow the manual, seal all gaps, and test the unit thoroughly. Regular maintenance will keep your AC running smoothly for years to come.
By following this guide on how to install LG 8000 BTU air conditioner, you’ve taken a big step toward energy-efficient home cooling. Stay cool, stay safe, and enjoy your new LG air conditioner!
