Carrier Air Conditioner Drain Pan

The carrier air conditioner drain pan is a critical component that collects condensation from your AC unit, preventing water damage and mold growth in your home or business. Without a properly functioning drain pan, you risk serious issues like leaks, electrical hazards, and system inefficiency. Understanding how this small but vital part works ensures better performance and longer lifespan for your Carrier HVAC system.

If you own a Carrier air conditioning system, chances are you’ve heard the term “drain pan” thrown around during maintenance calls or product manuals. But what exactly is a Carrier air conditioner drain pan, and why should you care? Simply put, it’s one of those unsung heroes of your HVAC system—small, often hidden behind walls or in attics, yet absolutely essential. This article dives deep into everything you need to know about the Carrier air conditioner drain pan: its function, types, signs of wear, and how to keep it working like new.

Think of the drain pan as your AC’s safety net. When your air conditioner cools indoor air, moisture condenses on the evaporator coils. That water needs somewhere to go—and that’s where the drain pan comes in. Without it, that excess humidity would drip straight onto your floor, ceiling, or worse, back into your ductwork, creating a breeding ground for mold and mildew. In short, the drain pan keeps your home dry, clean, and healthy while supporting your system’s overall performance.

But there’s more to this humble component than meets the eye. From material choices to installation quirks, every detail matters when it comes to ensuring reliable operation. Whether you’re troubleshooting a leaky unit or planning a seasonal tune-up, understanding your Carrier air conditioner drain pan will save you time, money, and headaches down the road.

Key Takeaways

• Understanding carrier air conditioner drain pan: Provides essential knowledge

Quick Answers to Common Questions

What happens if my Carrier drain pan cracks?

Water will leak directly onto your floor or ceiling, potentially damaging insulation, drywall, and flooring. It may also trigger safety shutoffs or promote mold growth. Immediate replacement is recommended.

Can I use any drain pan with my Carrier unit?

No. Carrier units are designed for specific pan sizes and mounting points. Using incompatible pans can cause misalignment, poor drainage, or void your warranty. Always use OEM or verified aftermarket parts.

How often should I clean the drain pan?

Twice per year—once before summer and once before winter. More frequently if you live in a dusty or humid environment. Annual HVAC maintenance includes this step.

Is a clogged drain line dangerous?

Yes. A blocked line causes water to back up into the pan, possibly overflowing and shutting down your system. It can also create stagnant water, fostering harmful bacteria and odors.

Do all Carrier AC units have built-in pumps?

No. Most residential units rely on gravity drainage. Only certain models (especially those installed above living areas) include internal condensate pumps to lift water upward.

What Is a Carrier Air Conditioner Drain Pan?

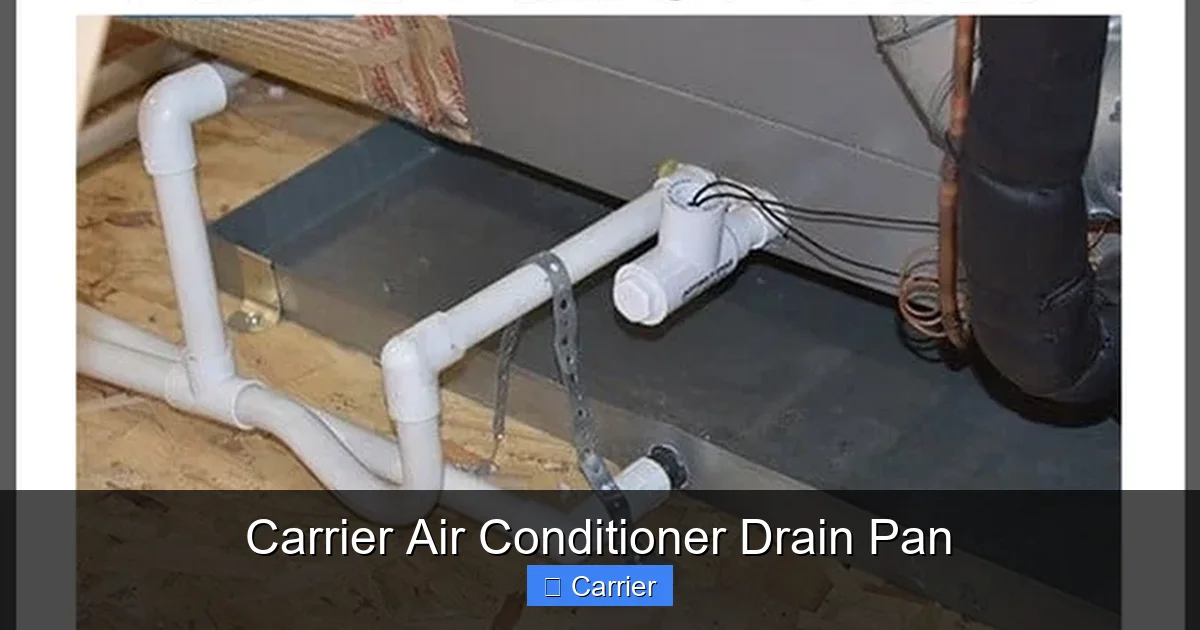

At its core, the Carrier air conditioner drain pan is a shallow container installed beneath the evaporator coil in your HVAC system. Its primary job is to collect condensed water produced during the cooling process and channel it through a drain line to the outside of your home. Most modern Carrier units come with a built-in drain pan, though aftermarket replacements may vary depending on model and age.

This pan sits directly under the indoor coil, which gets cold as refrigerant passes through it. As warm indoor air blows over these cold coils, moisture condenses and drips into the pan. From there, gravity pulls the water down a PVC pipe connected to the pan’s outlet—usually located near the outdoor unit or exterior wall. Some systems also include an internal float switch or pump to prevent overflow if the main drain becomes blocked.

While not the flashiest part of your AC, the drain pan plays a crucial role in system reliability. It protects your home from water intrusion, supports proper airflow by keeping coils clear, and prevents microbial growth that could spread allergens indoors. For Carrier owners, using a genuine or OEM-compatible drain pan ensures alignment with their brand’s engineering standards—critical for warranty compliance and peak performance.

Types of Carrier Air Conditioner Drain Pans

Not all drain pans are created equal. Depending on your Carrier model, age, and environmental conditions, you might encounter several types:

1. Standard Plastic Drain Pans

Most residential Carrier units use lightweight plastic drain pans, typically made from polypropylene or ABS plastic. These are affordable, easy to install, and resistant to corrosion. They’re ideal for typical home environments where humidity levels aren’t extreme. However, prolonged sun exposure or high temperatures can cause plastic pans to warp or degrade over time, leading to leaks.

2. Galvanized Steel or Aluminum Pans

Found in older or commercial-grade Carrier systems, metal drain pans offer superior durability and heat resistance. They’re less prone to cracking and can handle higher temperatures without deforming. On the downside, they’re heavier and more expensive than plastic alternatives. Rust can still be an issue if the coating wears off, especially in humid climates.

3. Coated or Powder-Coated Pans

To combat corrosion, some Carrier models feature drain pans treated with protective coatings. These add a layer of defense against moisture and UV rays, extending lifespan significantly. Coated pans are common in coastal areas or regions with high salinity in the air. While slightly pricier upfront, they reduce long-term replacement costs.

4. Secondary or Overflow Pans

In rare cases, particularly in commercial setups or retrofitted homes, you might find a secondary drain pan placed *above* the primary one. This acts as a backup in case the first pan fails or overflows. These are usually connected to an alarm or high-water sensor to notify technicians immediately.

Choosing the right type depends on your location, system age, and local climate. Always consult your Carrier manual or contact a certified technician before replacing or modifying your drain pan setup.

Why Your Carrier Drain Pan Matters

You might wonder: “Can’t my AC just work without worrying about the drain pan?” The answer is no—and here’s why.

First, consider the source of the water. Every time your Carrier unit runs, it removes humidity from the air. A 5-ton central AC can produce over 50 pints of water per day during heavy use! If that water has nowhere to go, it pools around your unit, drips through drywall, or worse, backs up into the ductwork. Over time, this leads to wood rot, insulation damage, and structural weakening.

Second, a compromised drain pan disrupts system operation. Many Carrier units have safety switches that shut down the compressor if the drain pan fills too much. This isn’t just inconvenient—it means your home stays uncomfortable until service arrives, potentially costing hundreds in lost comfort and emergency repair fees.

Third, neglected drain pans become microbial hotspots. Stagnant water attracts bacteria, fungi, and even insects. When airflow resumes, these contaminants get blown into your living space, causing respiratory irritation or allergic reactions. That musty smell you notice after turning on the AC? Often traced back to biofilm buildup in a dirty drain pan or clogged line.

Finally, ignoring minor leaks today can lead to major expenses tomorrow. A single drop may seem harmless, but sustained dripping accelerates material decay and voids manufacturer warranties if damage is deemed preventable. Proactive care of your Carrier air conditioner drain pan pays dividends in peace of mind and reduced utility bills.

Common Signs Your Carrier Drain Pan Needs Attention

Spotting problems early saves you from bigger messes. Watch for these red flags:

– **Water stains on ceilings or walls** near the AC unit
– **Musty or earthy odors** when the system kicks on
– **Frequent cycling**—your Carrier turns on/off more often than usual
– **Visible rust or warping** around the pan area
– **Drain line gurgling sounds**, suggesting partial blockage
– **Pump running constantly**, indicating the main drain is plugged

If you notice any of these, don’t wait. Schedule a professional inspection. DIY fixes can backfire—especially if you accidentally disconnect float switches or misalign drainage slopes.

How to Maintain Your Carrier Air Conditioner Drain Pan

Maintenance is simple but effective. Follow these steps twice a year (spring and fall):

Step 1: Turn Off Power

Safety first! Switch off your Carrier unit at the breaker before inspecting or cleaning the drain pan.

Step 2: Locate the Pan and Access Panel

Open the access panel near your indoor unit (usually in the attic or utility closet). You’ll see the pan beneath the evaporator coil.

Step 3: Inspect for Cracks or Corrosion

Check the pan surface for cracks, holes, or flaking paint. Even tiny gaps let water seep through. Replace if damaged.

Step 4: Clean the Pan and Drain Line

Use a mixture of vinegar and water (1:1 ratio) to flush the pan and pour it down the drain line. Avoid harsh chemicals—they kill beneficial microbes and leave residues.

Step 5: Test the Drain Flow

Pour a cup of water slowly into the drain opening. It should flow smoothly outward. If it pools, the line is clogged. Use a wet/dry vacuum to suction debris.

Step 6: Check the Overflow Switch

Ensure the float switch moves freely and triggers when water reaches the alert level. Clean mineral deposits gently with a soft brush.

Regular maintenance takes under 15 minutes and prevents 90% of common drainage issues. Pair this with annual HVAC servicing for maximum efficiency.

DIY vs. Professional Repair: When to Call a Technician

While basic cleaning is safe for homeowners, complex issues require expertise. Consider calling a Carrier-certified technician if you see:

– Structural damage to the pan requiring welding or full replacement
– Persistent leaks despite cleaning
– Electrical components near the pan showing burn marks
– Unusual noises coming from the drain line

Technicians also verify proper slope alignment—a common oversight. The drain line must slope downward at least ¼ inch per foot toward the exit point. Incorrect angles cause backups even with a clean pan.

Remember: attempting internal wiring or refrigerant handling without training risks voiding your warranty or causing injury. When in doubt, play it safe.

Upgrading Your Carrier Drain Pan System

Older homes sometimes need drain pan upgrades. Common scenarios include:

– Replacing corroded metal pans with modern plastic ones
– Adding secondary pans in basements or crawl spaces
– Installing antimicrobial-treated pans in allergy-prone households

When upgrading, always match specifications from your Carrier model number. Third-party pans may fit physically but lack safety certifications or proper drainage geometry. Genuine Carrier parts guarantee compatibility and support.

For commercial applications, consult an engineer. High-capacity systems demand reinforced pans, redundant drains, and monitoring sensors.

Frequently Asked Questions

Can I replace my Carrier drain pan myself?

Yes, if you’re comfortable accessing the indoor unit and handling basic tools. Ensure power is off, match the new pan to your model number, and test drainage afterward. Complex installations may require professional help.

Why does my Carrier AC smell bad?

A musty odor often stems from biofilm or mold in the drain pan or clogged drain line. Clean the pan with vinegar solution and flush the line. Replace filters regularly to reduce contamination.

How do I unclog a blocked Carrier drain line?

Use a wet/dry vacuum to suck out debris from the drain outlet. Pour a cup of distilled white vinegar mixed with warm water down the line to dissolve organic buildup. Repeat monthly for prevention.

What size drain pan does my Carrier unit need?

Check your model number (found on the data plate) and refer to the Carrier specification sheet. Pans are measured by length x width x depth—typically 18×24 inches for standard residential units.

Does a faulty drain pan affect my energy bill?

Indirectly, yes. If the pan causes the system to shut off frequently due to safety switches, it reduces runtime efficiency. Also, microbial growth on coils increases resistance, forcing the compressor to work harder.

Should I install a secondary drain pan?

Only if your unit is located in a place where leaks could cause significant damage—like a finished basement or office space. Consult an HVAC pro to determine if an overflow pan and alarm are necessary for your setup.
