LG air conditioner error code CH 34 indicates a communication issue between indoor and outdoor units. This guide walks you through diagnosing and fixing the problem safely and effectively, helping you restore your AC’s performance without costly service calls.
Key Takeaways
- CH 34 means a communication failure: The indoor and outdoor units can’t exchange signals, often due to wiring or power issues.
- Check power supply first: Ensure both units are receiving stable voltage and the circuit breaker hasn’t tripped.
- Inspect wiring connections: Loose, damaged, or corroded wires between units are a common cause of CH 34.
- Reset the system safely: Power cycling both units can resolve temporary glitches causing the error.
- Test the control board: A faulty PCB in either unit may require professional diagnosis or replacement.
- Call a technician if unsure: Electrical components can be dangerous—always prioritize safety.
- Prevent future errors: Schedule regular maintenance and protect outdoor units from weather damage.
Understanding LG Air Conditioner Error Code CH 34
If your LG air conditioner suddenly stops cooling and displays the error code CH 34, don’t panic—this is a common issue that many homeowners face. The CH 34 error specifically indicates a communication failure between the indoor and outdoor units of your split-system air conditioner. In simpler terms, the two main parts of your AC can’t “talk” to each other, which prevents the system from operating correctly.
This error doesn’t necessarily mean your AC is broken beyond repair. In fact, in many cases, it’s caused by something as simple as a loose wire or a temporary power glitch. However, because it involves electrical components and system communication, it’s important to approach troubleshooting carefully and methodically.
In this comprehensive guide, you’ll learn exactly what CH 34 means, why it happens, and—most importantly—how to fix it step by step. Whether you’re a DIY enthusiast or just want to understand what’s going on before calling a technician, this guide will empower you to diagnose and resolve the issue safely and efficiently.
We’ll cover everything from basic power checks to inspecting wiring and control boards, all while emphasizing safety and practical solutions. By the end, you’ll know when you can fix the problem yourself and when it’s time to bring in a professional.
What Causes Error Code CH 34?

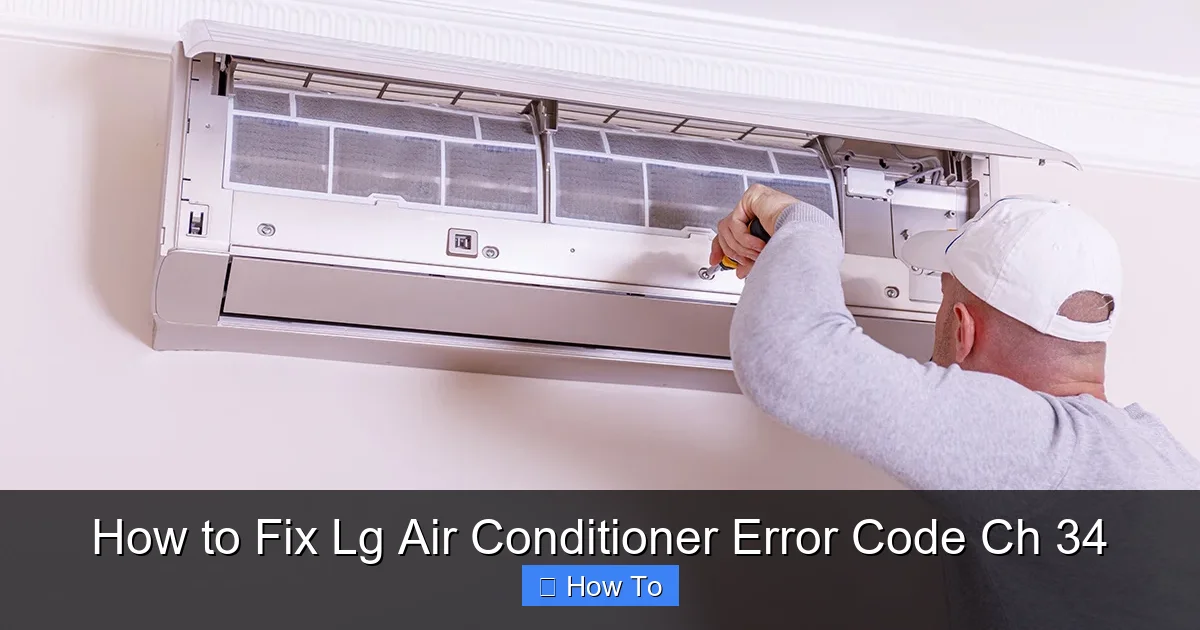

Visual guide about How to Fix Lg Air Conditioner Error Code Ch 34
Image source: storables.com
Before diving into fixes, it’s helpful to understand what might be triggering the CH 34 error. Knowing the root cause can save you time and help you avoid repeating the same mistake.
The primary reason for CH 34 is a breakdown in communication between the indoor and outdoor units. These units rely on a continuous exchange of electrical signals to coordinate functions like cooling, fan speed, and temperature control. When that communication is interrupted, the system halts operation and displays the error code.
Here are the most common causes:
- Power supply issues: If either unit isn’t receiving consistent power—due to a tripped breaker, faulty outlet, or voltage fluctuation—communication can fail.
- Loose or damaged wiring: The communication cable (often a 4- or 5-wire bundle) connecting the indoor and outdoor units may be loose, frayed, or disconnected.
- Corrosion or moisture: Outdoor units are exposed to weather. Over time, moisture can corrode wire terminals or connectors, disrupting signal flow.
- Faulty control board (PCB): The printed circuit board in either unit manages communication. If it’s damaged or malfunctioning, it can’t send or receive signals properly.
- Incorrect wiring during installation: If the AC was recently installed or serviced, wires may have been connected incorrectly or not secured tightly.
- Electrical interference: Nearby high-voltage equipment or faulty grounding can interfere with low-voltage communication signals.
Understanding these causes helps you target your troubleshooting efforts. For example, if you’ve recently had a storm or power outage, a simple reset might do the trick. But if the error persists, you’ll need to dig deeper.
Safety First: Precautions Before You Begin
Working with air conditioning systems involves electricity, so safety must be your top priority. Never attempt repairs if you’re unsure or uncomfortable with electrical work. When in doubt, call a licensed HVAC technician.
Here are essential safety steps to follow:
Turn Off the Power
Before touching any part of your AC system, shut off the power at the main circuit breaker. This ensures that both the indoor and outdoor units are completely de-energized. Simply turning off the thermostat isn’t enough—power may still flow to the outdoor unit.
Use Proper Tools and Gear
Wear insulated gloves and safety glasses when handling wires or circuit boards. Use a non-contact voltage tester to confirm that power is off before touching any components.
Work in Dry Conditions
Never work on your AC during rain or when the unit is wet. Moisture increases the risk of electric shock.
Avoid DIY on High-Voltage Components
While checking wires and connections is generally safe, avoid opening sealed components like capacitors or compressor housings unless you’re trained. These parts can store dangerous levels of electricity even when powered off.
Keep Children and Pets Away
Ensure the work area is clear of distractions and hazards. Keep tools organized and out of reach of children.
By following these precautions, you reduce the risk of injury and protect your equipment from accidental damage.
Step-by-Step Guide to Fixing Error Code CH 34
Now that you understand the causes and safety measures, let’s walk through the actual troubleshooting process. Follow these steps in order—many CH 34 errors are resolved with the first few checks.
Step 1: Power Cycle the System
Sometimes, the CH 34 error is just a temporary glitch. A full power reset can clear the communication error and restore normal operation.
Here’s how to do it:
- Turn off the air conditioner using the remote or thermostat.
- Go to your home’s main electrical panel and locate the breaker that controls the AC unit. It’s usually labeled “AC,” “Air Conditioner,” or something similar.
- Flip the breaker to the OFF position. Wait at least 5 minutes. This allows any residual electricity in the system to dissipate.
- After 5 minutes, flip the breaker back to ON.
- Wait another 2–3 minutes, then turn the AC back on using the remote.
- Check if the CH 34 error is gone and if the unit starts cooling.
If the error clears and your AC runs normally, great! The issue was likely a temporary communication hiccup. However, if the error returns after a short time, move on to the next step.
Step 2: Check the Power Supply
A weak or unstable power supply can prevent proper communication between units. Here’s how to verify that both units are getting adequate power.
Inspect the Circuit Breaker
Go back to your electrical panel and check if the AC breaker is fully in the ON position. Sometimes, a breaker appears on but has partially tripped due to a surge. Flip it fully OFF and then back ON to ensure a solid connection.
Test the Voltage
Use a multimeter to check the voltage at the outdoor unit’s disconnect box (a small metal box near the outdoor unit with a lever or plug). Set your multimeter to AC voltage (usually marked V~) and test between the live and neutral terminals.
– For a 220V system, you should read between 210V and 240V.
– If the reading is significantly lower (e.g., below 190V), there may be a wiring issue in your home’s electrical system or a problem with the utility supply.
If voltage is low, contact an electrician. Don’t attempt to fix household wiring unless you’re qualified.
Check the Disconnect Switch
The outdoor unit has a disconnect switch (often a pull-out fuse or lever) that can accidentally get turned off. Make sure it’s in the ON position. If it’s a fuse type, check that the fuse isn’t blown.
Step 3: Inspect the Communication Wiring
This is one of the most common fixes for CH 34. The communication wires run from the indoor unit through the wall to the outdoor unit. Over time, these wires can become loose, damaged, or corroded.
Locate the Wiring Connections
– For the indoor unit: Remove the front panel or access cover. Look for a bundle of 4 or 5 colored wires (often red, blue, yellow, black, and green) connected to a terminal block labeled “L,” “N,” “S,” etc.
– For the outdoor unit: Remove the service panel on the side or top. Find the corresponding terminal block where the same wires connect.
Check for Loose Connections
Gently tug on each wire to see if it’s secure. If any wire feels loose, turn off the power (again!), then tighten the terminal screws using a screwdriver. Make sure each wire is firmly clamped and not touching any other terminal.
Look for Damage or Corrosion
Inspect the wires for:
– Fraying or cuts in the insulation
– Burn marks or melted spots
– Green or white corrosion on the metal terminals
If you see corrosion, clean it gently with a wire brush or electrical contact cleaner. Avoid using water. If wires are damaged, they may need to be spliced or replaced—this is best done by a professional.
Verify Wire Continuity (Optional)
If you have a multimeter, you can test for continuity in the communication wires. Set the meter to the continuity or ohms setting. Disconnect the wires at both ends and test each wire individually. A good wire will show near-zero resistance. An open circuit (infinite resistance) means the wire is broken.
Step 4: Examine the Control Boards
If wiring looks good but the error persists, the issue may lie in the control boards (PCBs) of either unit. These boards manage communication and can fail due to power surges, age, or manufacturing defects.
Visual Inspection
With power off, carefully examine the PCB in both units. Look for:
– Burnt or discolored components
– Bulging or leaking capacitors
– Cracked solder joints
– Signs of overheating (dark spots, melted plastic)
If you see any of these, the board may need replacement. Note the model number of your AC (found on the unit’s label) so you can order the correct part.
Reset the PCB (If Possible)
Some LG models have a reset button on the indoor unit’s PCB. If yours does, press it gently with a small tool (like a paperclip) while the power is on. This can clear temporary faults.
Test with a Multimeter (Advanced)
If you’re experienced with electronics, you can test voltage outputs on the PCB. However, this requires technical knowledge and should only be done if you understand AC circuitry. Incorrect testing can damage the board further.
Step 5: Check for Environmental Factors
Sometimes, external conditions can interfere with communication.
Clear Debris Around the Outdoor Unit
Ensure the outdoor unit isn’t blocked by leaves, dirt, or snow. Restricted airflow can cause overheating, which may affect the control board and communication.
Protect from Moisture
Check that the wiring conduit between units is sealed and not allowing water to enter. Use waterproof tape or conduit seals if needed.
Avoid Electrical Interference
Keep communication wires away from high-voltage lines, motors, or transformers. If possible, reroute wires to minimize interference.
When to Call a Professional
While many CH 34 errors can be fixed with basic troubleshooting, some situations require expert help.
Call a licensed HVAC technician if:
– You’re uncomfortable working with electricity
– The error persists after all DIY steps
– You suspect a faulty control board or compressor
– The wiring is severely damaged or inaccessible
– Your AC is under warranty (DIY repairs may void it)
A professional can perform advanced diagnostics, such as checking refrigerant levels, testing capacitors, or using specialized tools to analyze signal integrity.
Preventing Future CH 34 Errors
Once your AC is working again, take steps to avoid a repeat:
- Schedule annual maintenance: A technician can clean coils, check wiring, and test system performance.
- Install a surge protector: Protects your AC from power spikes that can damage electronics.
- Keep the outdoor unit clean: Clear debris monthly and trim nearby plants.
- Inspect wiring annually: Especially after storms or extreme weather.
- Avoid DIY installations: Improper wiring is a leading cause of communication errors.
Conclusion
Fixing LG air conditioner error code CH 34 doesn’t have to be intimidating. In most cases, it’s caused by a simple issue like a loose wire or a temporary power glitch. By following this step-by-step guide—starting with a power reset, checking connections, and inspecting components—you can often resolve the problem without calling a technician.
Remember to always prioritize safety, work methodically, and don’t hesitate to seek professional help when needed. With the right approach, you’ll have your AC cooling efficiently again in no time.
Regular maintenance and awareness of your system’s condition can prevent future errors and extend the life of your air conditioner. Stay cool and confident—you’ve got this!
