Attaching a new plugin to your LG portable air conditioner is a simple process that ensures safe and efficient operation. This guide walks you through every step, from identifying the right plug type to testing the connection, so you can enjoy cool, reliable airflow without hassle.
Key Takeaways
- Safety First: Always unplug the unit and turn off the power before attempting any electrical work to prevent shocks or damage.
- Match the Plug Type: Ensure the new plugin matches your LG portable AC’s voltage, amperage, and plug configuration (e.g., 115V or 230V).
- Use Proper Tools: A screwdriver, wire strippers, and electrical tape are essential for a secure and clean installation.
- Follow Wiring Colors: Standard color codes (black = hot, white = neutral, green/bare = ground) must be followed precisely.
- Test Before Use: After installation, plug in the unit and run a test cycle to confirm everything works correctly.
- When to Call a Pro: If you’re unsure about wiring or local electrical codes, consult a licensed electrician.
- Check Warranty Terms: Modifying the power cord may void your warranty—review LG’s policy before proceeding.
How to Attach New Plugin to LG Portable Air Conditioner
If you’ve recently moved, upgraded your outlet setup, or your LG portable air conditioner’s original power cord has worn out, you might need to attach a new plugin. While it sounds technical, replacing or attaching a new plug to your LG portable AC is a manageable DIY task—if done safely and correctly.
This comprehensive guide will walk you through the entire process, from understanding your unit’s power requirements to testing the final connection. Whether you’re dealing with a frayed cord, an incompatible outlet, or simply want a longer reach, we’ve got you covered. By the end of this guide, you’ll know exactly how to attach a new plugin to your LG portable air conditioner with confidence and safety.
We’ll cover everything: the tools you need, step-by-step instructions, wiring basics, troubleshooting tips, and when it’s best to call in a professional. Let’s get started!
Why You Might Need to Attach a New Plugin

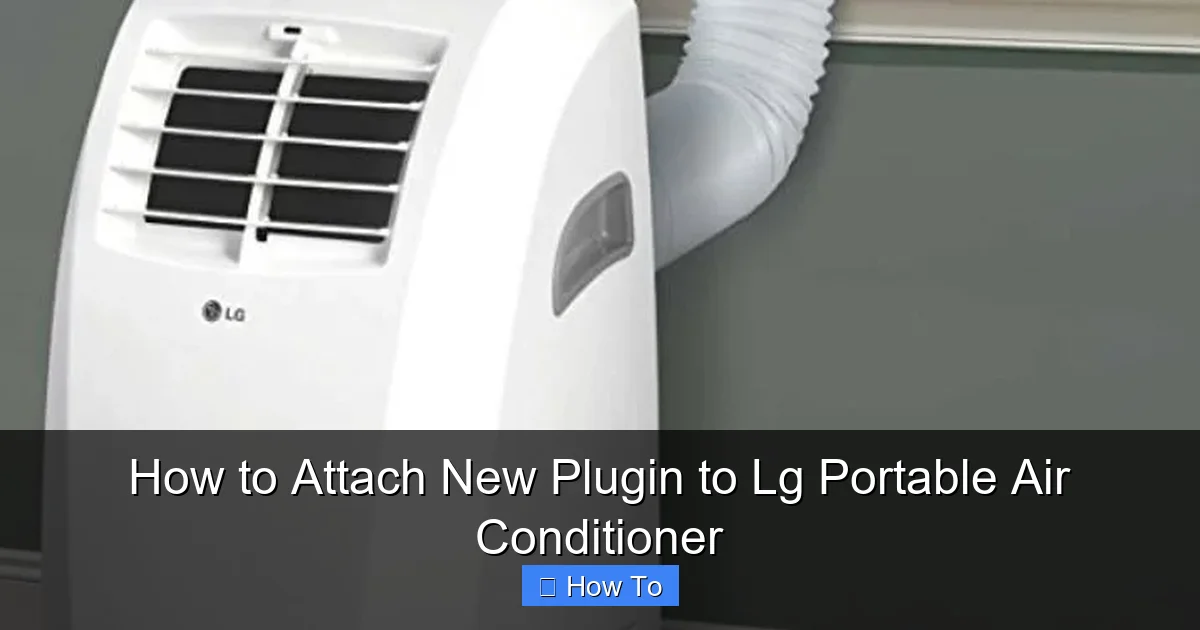

Visual guide about How to Attach New Plugin to Lg Portable Air Conditioner
Image source: i.pinimg.com
There are several common reasons why you might need to replace or attach a new plugin to your LG portable air conditioner:
- Damaged Cord: Over time, the power cord can become frayed, cracked, or chewed by pets. A damaged cord is a serious safety hazard and should be replaced immediately.
- Incompatible Outlet: Older homes may have outdated outlets that don’t match the plug on your LG unit. For example, your AC might have a grounded (three-prong) plug, but your wall outlet only has two slots.
- Relocation: Moving your portable AC to a different room or home might require a different plug type or length.
- Extension Needs: Sometimes, the original cord isn’t long enough. While extension cords are an option, attaching a longer cord with a compatible plug can be a cleaner, safer solution.
- Upgraded Outlets: If you’ve installed new outlets (like GFCI or 20-amp outlets), your existing plug might not fit properly.
Whatever your reason, replacing the plugin is often faster and cheaper than buying a whole new unit. But it’s crucial to do it right—electrical work, even simple plug replacement, can be dangerous if mishandled.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.
Essential Tools
- Screwdriver (Phillips and flathead): For opening the plug housing and securing wires.
- Wire strippers: To remove insulation from the wire ends without damaging the copper.
- Electrical tape: For insulating connections and preventing shorts.
- Voltage tester (optional but recommended): To confirm the power is off before you start.
- Needle-nose pliers: Helpful for bending and securing small wire ends.
Materials
- Replacement plug: Must match your LG portable AC’s voltage and amperage. Most LG portable units use 115V, 15-amp plugs, but check your model’s label to be sure.
- Electrical wire (if extending the cord): Use 14-gauge or 12-gauge indoor-rated extension cord wire, depending on the amp draw.
- Wire nuts (if splicing): Only if you’re joining wires together.
- Cable clamp (if modifying the unit): To secure the cord inside the AC housing and prevent pulling.
Safety Gear
- Rubber-soled shoes: Reduce the risk of electric shock.
- Safety glasses: Protect your eyes from debris or accidental sparks.
- Work gloves: Optional, but helpful for handling sharp edges.
Always purchase a replacement plug from a reputable hardware store or online retailer. Look for UL-listed (Underwriters Laboratories) plugs, which meet safety standards.
Step 1: Confirm Power Requirements and Plug Type
Before touching any wires, you must verify your LG portable air conditioner’s electrical specifications. Using the wrong plug can damage the unit or create a fire hazard.
Check the Unit’s Label
Locate the manufacturer’s label on your LG portable AC. It’s usually on the back or side of the unit. Look for the following information:
- Voltage (V): Most portable ACs in the U.S. run on 115V or 120V.
- Amperage (A): Typically 12–15 amps for portable units.
- Wattage (W): Helps confirm power draw.
- Plug configuration: Note whether it’s a two-prong or three-prong plug, and the shape (e.g., NEMA 5-15P for standard grounded outlets).
For example, a common label might read: “115V ~ 60Hz, 12.5A, 1437W.” This tells you the unit needs a 15-amp, 125-volt grounded plug.
Match the Replacement Plug
Your new plugin must match these specs. Here’s a quick guide:
- 115V / 15A units: Use a NEMA 5-15P plug (standard three-prong household plug).
- 20A units (rare for portables): Use a NEMA 5-20P plug (one vertical slot is T-shaped).
- 230V units (for larger models or international use): Require a different plug type—check your model number and consult LG’s documentation.
Never use a plug rated for lower amperage than your unit requires. For example, don’t use a 10-amp plug on a 15-amp AC—it can overheat.
Verify Local Electrical Codes
Some areas have specific rules about modifying appliance cords. In most cases, replacing a plug on a portable appliance is allowed, but if you’re splicing or extending the cord significantly, you may need to follow local codes. When in doubt, consult an electrician.
Step 2: Turn Off Power and Prepare the Work Area
Safety is the most important part of this process. Electricity can be deadly, so take every precaution.
Unplug the Air Conditioner
First, unplug the unit from the wall outlet. Don’t just turn it off with the remote—physically disconnect it.
Turn Off the Circuit Breaker (Optional but Recommended)
For extra safety, locate the circuit breaker that powers the outlet you’re working near and turn it off. Use a voltage tester to confirm no power is flowing to the outlet.
Choose a Safe Work Area
Work on a dry, flat surface with good lighting. Avoid carpets or areas where water might be present. Keep children and pets away.
Inspect the Cord
Before attaching a new plug, examine the power cord for damage. Look for:
- Cracks or splits in the insulation
- Exposed copper wires
- Bent or broken prongs
- Burn marks or melting near the plug
If the cord itself is damaged beyond the plug, you may need to replace the entire cord or consult a professional. Never wrap damaged wires with tape and continue using the unit.
Step 3: Remove the Old Plug
Now it’s time to remove the old plugin. Most replacement plugs are “screw-on” or “inline” types that attach directly to the cord.
Cut the Cord (If Necessary)
If the old plug is damaged or you’re replacing it entirely, use wire cutters to remove it. Cut about 1–2 inches from the end of the cord to ensure clean, undamaged wire.
Strip the Wire Ends
Use wire strippers to remove about 3/4 inch of insulation from each wire. Most cords have three wires:
- Black (Hot): Carries the current to the unit.
- White (Neutral): Returns the current.
- Green or Bare (Ground): Safety wire that prevents shocks.
Be careful not to nick or cut the copper strands inside. Damaged wires can cause poor connections or overheating.
Open the New Plug Housing
Most replacement plugs have a hinged or screw-on cover. Open it to access the terminal screws inside. You’ll see three terminals labeled:
- L or Hot: For the black wire
- N or Neutral: For the white wire
- Ground (⏚ or GND): For the green or bare wire
Some plugs may use color-coded screws: brass (hot), silver (neutral), green (ground).
Step 4: Attach the Wires to the New Plug
This is the core of the process. Proper wiring ensures safe and reliable operation.
Connect the Ground Wire
Start with the ground wire (green or bare). Loosen the green screw on the plug, wrap the stripped end of the wire clockwise around the screw, and tighten securely. The wire should be snug with no loose strands.
Connect the Neutral Wire
Next, attach the white (neutral) wire to the silver or “N” terminal. Again, wrap it clockwise and tighten the screw. Ensure the connection is tight—loose wires can arc and cause fires.
Connect the Hot Wire
Finally, connect the black (hot) wire to the brass or “L” terminal. Follow the same clockwise wrapping and tightening procedure.
Secure the Cord
Most plugs have a built-in cord clamp or strain relief. Slide the cord into the clamp and tighten the screws to hold it firmly. This prevents the wires from being pulled out of the terminals if someone tugs on the cord.
Close the Plug Housing
Once all wires are connected and the cord is secured, close the plug cover. Make sure no wires are pinched or exposed. Tighten any screws to hold the housing together.
Step 5: Test the Connection
Before plugging in your LG portable air conditioner, it’s essential to test the new plugin.
Visual Inspection
Double-check that:
- All wires are securely connected
- No bare copper is exposed
- The cord clamp is tight
- The plug housing is fully closed
Use a Plug Tester (Optional)
You can buy an inexpensive plug tester at any hardware store. Plug it into the outlet, then plug your AC into the tester. It will light up to show if the wiring is correct (hot, neutral, ground).
Plug In and Test the AC
Now, plug your LG portable air conditioner into a working outlet. Turn it on using the control panel or remote. Listen for normal operation—no buzzing, sparking, or unusual smells.
Run the unit for 5–10 minutes. Check that:
- The compressor starts
- Cold air comes out
- The plug and cord remain cool to the touch
If the plug feels warm or hot, unplug immediately. This could indicate a loose connection or incorrect wiring.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common issues.
The AC Won’t Turn On
- Check the outlet: Plug in another device to confirm the outlet is working.
- Test the circuit breaker: It may have tripped.
- Inspect the plug: Ensure all wires are tight and correctly connected.
- Try a different outlet: Rule out outlet-specific issues.
The Plug Gets Hot
This is a serious warning sign. Possible causes:
- Loose connections: Turn off power and re-tighten all terminals.
- Wrong plug type: Ensure the plug matches the unit’s amperage.
- Damaged cord: Replace the entire cord if insulation is compromised.
Buzzing or Sparking
- Unplug immediately.
- Check for loose wires or exposed copper.
- Ensure the plug is fully seated in the outlet.
- If the problem persists, stop using the unit and consult an electrician.
Tripped Circuit Breaker
- Your AC may be drawing too much power.
- Ensure no other high-wattage devices are on the same circuit.
- Consider using a dedicated outlet.
Safety Tips and Best Practices
To keep yourself and your home safe, follow these guidelines:
- Never work on a plugged-in device. Always unplug and turn off power.
- Use only UL-listed parts. Cheap, uncertified plugs can fail dangerously.
- Don’t overload circuits. Portable ACs draw significant power—avoid daisy-chaining extension cords.
- Keep cords away from water. Never use your AC in damp areas unless it’s rated for it.
- Replace, don’t repair. If the cord is damaged, replace the plug or cord—don’t tape it.
- Label modified cords. If you’ve changed the plug, consider labeling it for future reference.
When to Call a Professional
While attaching a new plugin is a common DIY task, there are times when you should call a licensed electrician:
- You’re unsure about wiring colors or connections.
- The cord is damaged beyond the plug.
- Your home has outdated wiring (e.g., no ground wire).
- You’re modifying the internal wiring of the AC unit.
- Local codes require professional installation.
- You feel uncomfortable or unsafe working with electricity.
It’s always better to be safe than sorry. A professional can ensure the job is done correctly and up to code.
Conclusion
Attaching a new plugin to your LG portable air conditioner is a practical skill that can save you money and extend the life of your unit. By following this guide, you’ve learned how to safely remove the old plug, connect the wires correctly, and test the new setup.
Remember: safety comes first. Always unplug the unit, use the right tools, and double-check your work. If something doesn’t feel right, don’t hesitate to seek help.
With your new plugin securely in place, your LG portable AC should run efficiently and safely, keeping you cool all season long. Whether you’re fixing a damaged cord or adapting to a new outlet, you now have the knowledge to do it right.
Stay cool, stay safe, and enjoy the comfort of your portable air conditioner!
