Mixing Box HVAC: Revolutionizing Air Conditioning Systems
A mixing box in HVAC systems combines air to supply ventilation. It blends air for energy conservation and quality.
As buildings become more energy-efficient, HVAC systems play a crucial role in maintaining indoor air quality and ensuring optimal comfort levels. One component of HVAC systems that significantly impacts efficiency is the mixing box. A mixing box is a vital part of the air handling unit (AHU) that mixes return air with fresh air from outside before circulating it back into the room.
This process helps regulate temperature, humidity, and air quality while reducing energy consumption. Understanding the functions and benefits of a mixing box in HVAC systems is essential for designing and maintaining efficient building ventilation systems.
Diagram illustrating how return air and outdoor air combine inside a mixing box before distribution.
Functionality
Mixing Box HVAC systems provide an integral function in regulating airflow and maintaining optimal indoor air quality.

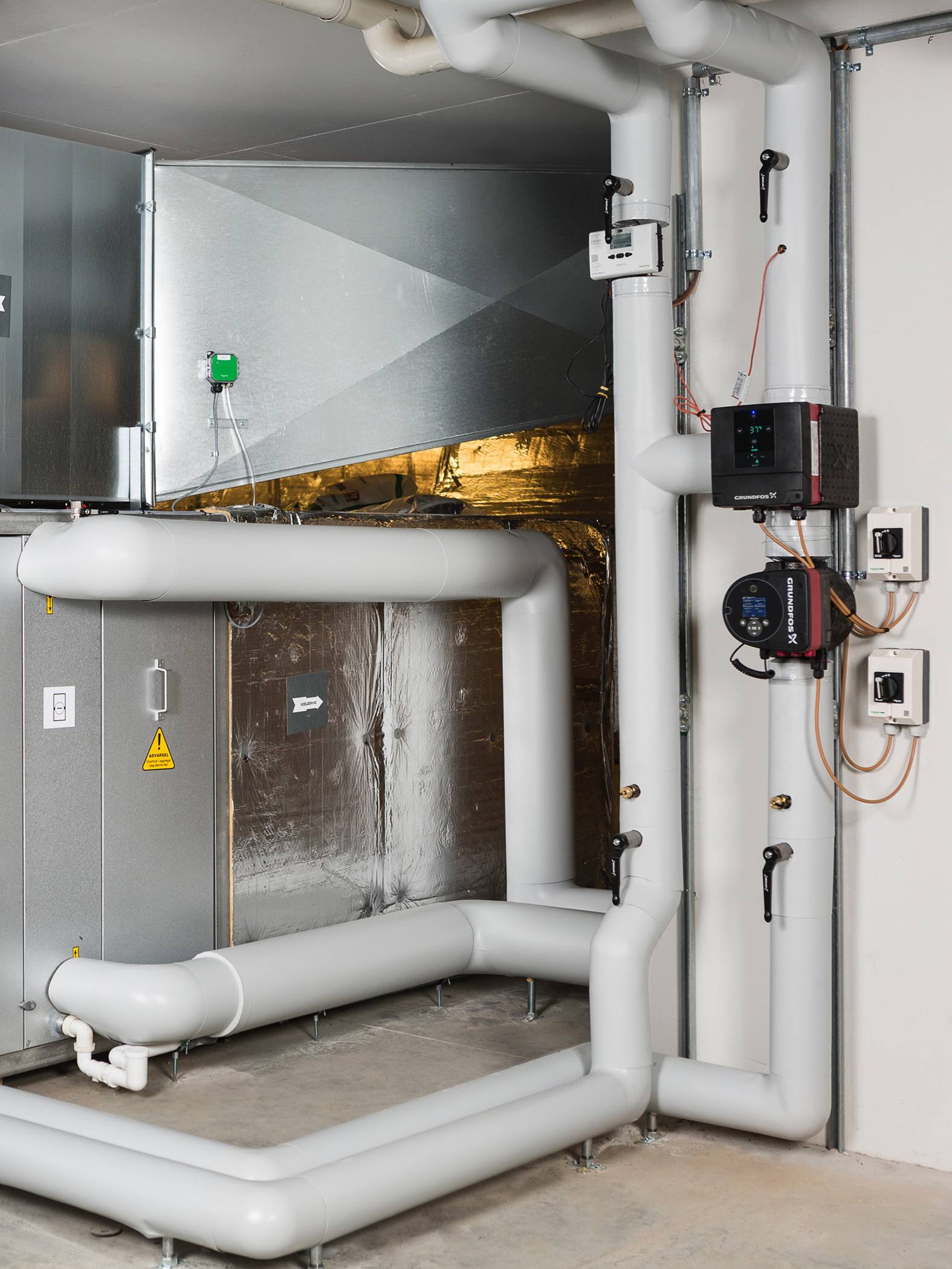

Mixing Box In Ahu
Mixing boxes, also known as air-mixing plenums, play a crucial role in Air Handling Units (AHUs) by blending the return air and fresh outside air before redistributing it into the room.
In practice, the mixing box sits at the AHU's inlet section where two airstreams — return air from the space and outdoor air from the intake — meet. Dampers on each inlet modulate to achieve the desired mixed-air temperature and ventilation rate. A common mistake is undersizing the plenum, which creates stratification and leaves hot or cold pockets that throw off downstream coil performance.
Difference Between Mixing Box And Economizer
While both Mixing Boxes and Economizers serve the same purpose of air blending, the key difference lies in the presence of a Relief Damper. Economizers are typically installed directly into rooftop units, whereas Mixing Boxes are affixed to existing ductwork or air handlers.
Quick comparison: mixing box vs. economizer
| Feature | Mixing Box | Economizer |
|---|---|---|
| Primary location | Ductwork / air handler | Rooftop unit (packaged) |
| Relief damper | Optional / separate | Integrated |
| Typical control | Standalone or BAS-linked | Built-in controller |
| Retrofit friendly | High | Low (requires RTU swap) |
| Best for | Custom AHUs, VAV systems | Packaged rooftop units |
This table helps clarify why a mixing box is often the preferred choice when upgrading an existing air handler rather than replacing the entire rooftop package.
A typical mixing box assembly showing opposed-blade dampers and actuator linkages.
Installation
When it comes to installing a Mixing Box HVAC system, it is essential to consider various factors. Proper installation plays a crucial role in ensuring optimal performance and efficiency of the system. Let's dive into the key aspects of the installation process.
Typical Installation Locations
Roof
Basement
Attic
Outdoor
These are common locations where Mixing Box HVAC systems are installed, based on the requirements of the building and available space.
Controls And Accessories
Thermostats
Dampers
Sensors
Filters
Controls and accessories are integral components of a Mixing Box HVAC system that ensure proper regulation and functioning of the unit.
Sizing and Selection Guidelines
Choosing the right mixing box starts with calculating the design outdoor-air fraction required by ASHRAE Standard 62.1 for the space type and occupancy. Size the box so face velocity through the damper area stays between 800–1,200 fpm; higher velocities cause noise and uneven mixing, while lower velocities waste plenum space. Match the damper actuator torque to the damper area and expected static pressure — typically 5–10 in-lb per sq ft for opposed-blade dampers. If the project uses a building automation system, specify modulating actuators with 0–10 VDC or 4–20 mA feedback for precise position control.
Integration with Building Automation Systems
Modern mixing boxes almost always connect to a BAS via BACnet MS/TP or BACnet/IP. Map the mixed-air temperature sensor, outdoor-air temperature sensor, and damper end switches to the controller so the sequence can enforce minimum outdoor-air setpoints, free-cooling changeover, and demand-controlled ventilation based on CO₂ levels. A common mistake is wiring the damper actuator without end-switch feedback; the BAS then cannot verify actual position, leading to undetected under-ventilation.
Benefits
A mixing box HVAC is used in HVAC systems to combine air, producing an air mixture to supply ventilation. It conserves energy and improves air quality by blending air, while unblended air is released as exhaust. Mixing boxes are typically installed in ductwork or attached to furnaces or air handlers.
The Mixing Box HVAC system offers a range of benefits that can improve the overall functioning and efficiency of your HVAC system, positively impacting both your indoor environment and energy usage. Let’s delve into the specific advantages in the following subheadings.
Energy Efficiency
Utilizing a Mixing Box HVAC can significantly enhance the energy efficiency of your HVAC system. By blending and conditioning outdoor air with the return air, the system reduces the need for excessive heating or cooling, optimizing energy consumption and subsequently lowering utility costs.
Free-cooling hours expand dramatically when the mixed-air temperature falls between 55 °F and 65 °F — the compressor or heating coil can stay off entirely. In climate zones 4A through 6A, this typically adds 800–1,200 hours of mechanical-cooling avoidance per year.
Improved Air Quality
One of the key benefits of a Mixing Box HVAC system is its ability to enhance indoor air quality. The system enables efficient mixing of fresh outdoor air with the return air, helping to dilute indoor pollutants and regulate humidity levels. This results in a healthier and more comfortable indoor environment for occupants.
The EPA notes that indoor pollutant concentrations can be two to five times higher than outdoors; a properly commissioned mixing box delivering the code-required ventilation rate is the first line of defense. For spaces with variable occupancy, pairing the box with CO₂-based demand-controlled ventilation prevents over-ventilation during low-occupancy periods while maintaining IAQ.
In addition to these specific benefits, using a Mixing Box HVAC system can also improve the overall performance and longevity of your HVAC equipment, providing a reliable and cost-effective solution for maintaining optimal indoor air quality and energy efficiency.
Applications
The mixing box HVAC system blends return air with fresh air to efficiently supply ventilation to buildings. It helps to improve energy quality by mixing air, while excess air is expelled as exhaust. This system is commonly used in HVAC duct work and air handling units, providing a cost-effective and energy-efficient solution for indoor air quality.
Commercial Buildings
A mixing box HVAC system plays a crucial role in maintaining the indoor air quality and temperature of commercial buildings. These systems combine fresh air from outside with the return air circulating within the building. By blending these air streams, the mixing box creates a balanced mixture that is then distributed throughout the ventilation system. This process helps to conserve energy and improve the overall air quality within the building.
Commercial buildings, such as office spaces, retail stores, and restaurants, often require efficient and reliable HVAC systems to ensure the comfort of occupants and maintain a healthy working environment. The mixing box HVAC system offers a practical solution for these types of buildings, as it allows for precise control over the air mixture and temperature.
Residential Hvac Systems
In residential settings, HVAC systems with a mixing box are commonly used to regulate the air quality and temperature in houses and apartments. These systems work in a similar way to their commercial counterparts, combining fresh air from outside with the return air from the interior of the property.
By blending these air streams, the mixing box HVAC system ensures that the air distributed throughout the home is clean, fresh, and at the desired temperature. This not only enhances the comfort of the residents but also helps to reduce energy consumption and improve overall energy efficiency.
With a mixing box HVAC system, homeowners can experience the benefits of a well-ventilated living space, free from pollutants and odors. The system allows for greater control over the indoor air quality, leading to a healthier and more enjoyable home environment.
Retrofitting Existing Systems
Retrofitting a mixing box into an older constant-volume air handler is a cost-effective way to add economizer capability without replacing the entire unit. The key steps: verify the fan has sufficient static-pressure margin (typically ≥ 0.5 in. w.g. extra), confirm the duct layout accommodates the added plenum depth (usually 24–36 in.), and upgrade the controller to a DDC module that can execute an economizer sequence. In practice, the ROI on a retrofit often falls in the 3–5 year range when gas heating is displaced by free cooling.
Code Compliance and Standards
Designs must satisfy ASHRAE 62.1 ventilation rates, IECC/ASHRAE 90.1 economizer mandates (climate zones 0A–3B exempt, others require integrated economizers ≥ 54,000 Btu/h), and local mechanical codes for fire/smoke damper linkage. Commissioning reports should document minimum outdoor-air airflow at design and minimum-load conditions, damper leakage rates per AMCA 500-D, and mixed-air temperature sensor calibration.
Field commissioning: verifying outdoor-air fraction with a thermal anemometer traverse.
In conclusion, the mixing box HVAC system offers a versatile solution for both commercial and residential buildings. Its ability to blend fresh air with return air provides precise control over the air mixture and temperature, resulting in improved air quality, energy efficiency, and occupant comfort. Whether you are an owner of a commercial building or a homeowner, considering a mixing box HVAC system can greatly enhance the overall indoor environment.
Maintenance and Troubleshooting
Routine Maintenance Checklist
- Inspect damper blades and linkages quarterly for binding, corrosion, or broken springs.
- Verify actuator stroke and end-switch operation monthly during the first season, then semi-annually.
- Clean mixed-air and outdoor-air temperature sensors annually; recalibrate per manufacturer procedure.
- Replace upstream filters on schedule — loaded filters increase static pressure and skew damper positioning.
- Log outdoor-air fraction readings from the BAS trend data at least twice per year to catch sensor drift early.
Common Issues and Fixes
| Symptom | Likely Cause | Corrective Action |
|---|---|---|
| Mixed-air temp swings > 5 °F | Damper hunting / poor PID tuning | Retune actuator loop; add deadband |
| Insufficient outdoor air at min load | Damper minimum stop set wrong | Recalibrate minimum position per TAB report |
| Condensation on mixed-air plenum | Cold outdoor air + no preheat | Enable preheat coil or raise minimum OA temp setpoint |
| High fan energy | Excessive damper pressure drop | Verify damper sizing; clean blades; check actuator torque |
If the system serves critical spaces (labs, healthcare), consider redundant mixed-air sensors and a fail-safe damper spring-return to minimum outdoor-air position on power loss.
Cost Considerations
Installed cost for a commercial mixing box (including dampers, actuators, sensors, and DDC integration) typically ranges from $4,500–$12,000 for 2,000–10,000 cfm units. Retrofit projects add $1,500–$3,000 for controls rewiring and BAS graphics. Energy savings from free cooling and reduced mechanical cooling usually deliver simple payback of 2–6 years depending on climate zone and utility rates. Always run a bin-hour analysis with local weather data rather than relying on rule-of-thumb percentages.
Frequently Asked Questions On Mixing Box Hvac
What Is A Mixing Box Hvac?
A mixing box HVAC is used in HVAC systems to blend air, supplying ventilation to buildings. It conserves energy by mixing air and rejecting unblended air as exhaust.
What Is The Use Of Mixing Box?
The mixing box in HVAC systems combines and blends air for better ventilation and energy efficiency in buildings.
What Is The Difference Between A Mixing Box And An Economizer?
A mixing box and an economizer serve the same purpose but differ in installation. A mixing box is installed in ductwork or affixed to a furnace, while an economizer is installed directly into a rooftop unit.
What Does Mixing Box Do In Ahu?
A mixing box in AHU (Air Handling Unit) combines return air with fresh air from outside before sending it back into the room. It helps maintain a desirable air mixture for ventilation and energy conservation purposes.
How Often Should Mixing Box Dampers Be Serviced?
Inspect damper linkages and actuator operation at least twice per year — before cooling season and before heating season — to catch binding or calibration drift early.
Can A Mixing Box Be Added To An Existing Furnace?
Yes, a mixing box can be field-installed on the return duct upstream of a furnace or air handler, provided there is sufficient static-pressure margin and physical space for the plenum.
What Controls Are Needed For Demand-Controlled Ventilation?
A CO₂ sensor in the return duct or space, a mixed-air temperature sensor, and a DDC controller capable of modulating the outdoor-air damper between design minimum and maximum positions based on real-time occupancy.
Conclusion
Incorporating a mixing box HVAC system can significantly enhance energy efficiency and indoor air quality. By effectively blending air, the mixing box optimizes ventilation to meet the building's requirements. By considering the differences between mixing boxes and economizers, one can select the most suitable solution for their HVAC system.
Overall, the integration of a mixing box can lead to improved air circulation and energy conservation.
Ready to evaluate a mixing box for your next project? Start by confirming your design outdoor-air requirements and available static pressure — then explore high-efficiency air handling options that integrate seamlessly with mixing-box economizer sequences.
