This guide walks you through the complete process of installing an LG 14000 BTU air conditioner, from preparation to final testing. Whether you’re a DIY enthusiast or a first-time installer, you’ll find clear instructions, safety tips, and expert advice to ensure a smooth and successful setup.
Key Takeaways
- Choose the right location: Select a shaded, sturdy wall with proper clearance and access to power for optimal performance and longevity.
- Gather the right tools: You’ll need a drill, level, screwdrivers, tape measure, wrench, and safety gear to complete the installation safely.
- Follow electrical safety: Always turn off power at the breaker before connecting wires, and consider hiring a licensed electrician if unsure.
- Seal gaps properly: Use weatherstripping and foam insulation to prevent air leaks and improve energy efficiency.
- Test the unit thoroughly: After installation, run the AC and check for leaks, unusual noises, or poor cooling to catch issues early.
- Maintain regularly: Clean filters monthly and inspect seals annually to keep your LG 14000 BTU air conditioner running efficiently.
- Consult the manual: Always refer to the manufacturer’s instructions for model-specific details and warranty requirements.
How to Install LG 14000 BTU Air Conditioner: A Complete Step-by-Step Guide
Installing an LG 14000 BTU air conditioner might seem intimidating at first, but with the right tools, preparation, and guidance, it’s a manageable DIY project. Whether you’re cooling a large bedroom, home office, or living area, this powerful window or through-the-wall unit can make a big difference in comfort—especially during hot summer months. This comprehensive guide will walk you through every step, from choosing the right location to testing your newly installed AC.
By the end of this guide, you’ll know exactly how to install your LG 14000 BTU air conditioner safely and efficiently. We’ll cover everything from tools and safety precautions to troubleshooting common issues. No prior HVAC experience? No problem. We’ve broken it down into simple, easy-to-follow steps so you can get your air conditioner up and running with confidence.
Why Choose an LG 14000 BTU Air Conditioner?

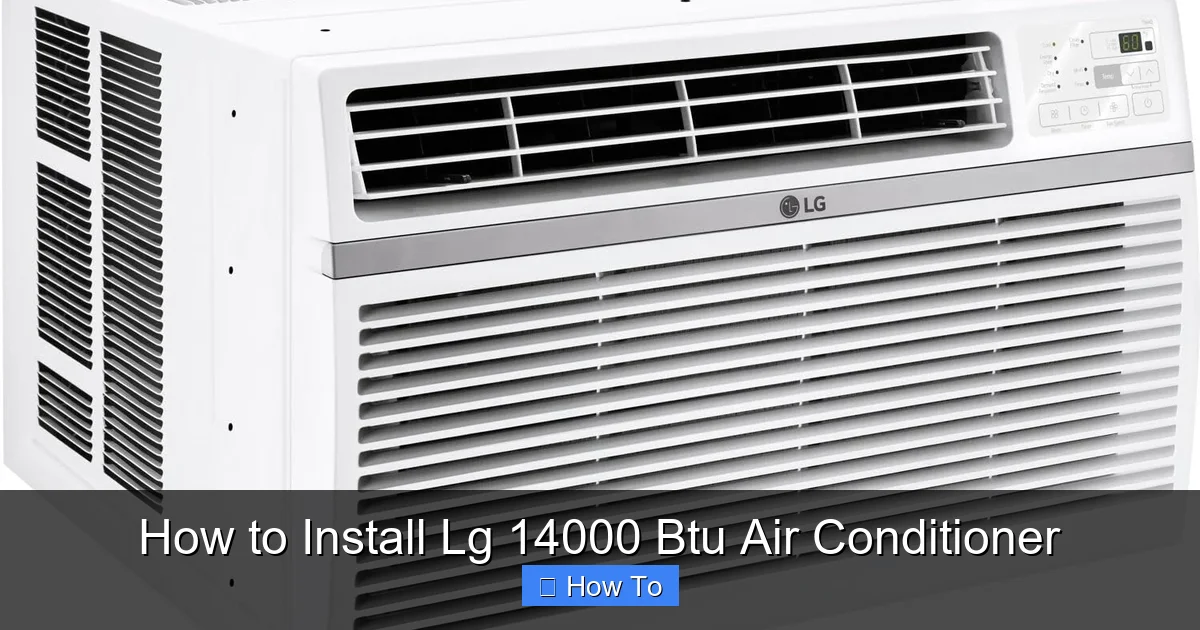

Visual guide about How to Install Lg 14000 Btu Air Conditioner
Image source: m.media-amazon.com
Before diving into the installation, it’s helpful to understand why the LG 14000 BTU model is a popular choice. This unit is ideal for rooms between 550 and 700 square feet, offering powerful cooling without the need for central air. LG is known for energy-efficient designs, quiet operation, and smart features like Wi-Fi connectivity on select models.
Many LG 14000 BTU units come with inverter technology, which adjusts compressor speed to maintain consistent temperatures and reduce energy use. They also often include washable filters, multiple fan speeds, and remote controls for added convenience. Plus, LG’s reputation for reliability means you’re investing in a unit that’s built to last.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration during the installation.
Essential Tools
- Power drill with drill bits
- Screwdrivers (Phillips and flathead)
- Adjustable wrench or socket set
- Tape measure
- Level (a 2-foot level works best)
- Pencil or marker
- Safety goggles and gloves
- Caulking gun
- Utility knife
Materials and Supplies
- Mounting brackets (if required by your model)
- Wood or metal screws (usually included with the unit)
- Weatherstripping or foam insulation tape
- Silicone caulk or exterior-grade sealant
- Support bracket or L-brackets (for window units)
- Extension cord (only if absolutely necessary and rated for AC use)
- Electrical tape and wire nuts (for through-the-wall units)
Optional but Helpful
- Stud finder (for through-the-wall installations)
- Vacuum or brush for cleaning the area
- Helper (to assist with lifting the heavy unit)
Safety First: Important Precautions
Air conditioners are heavy and involve electrical components, so safety should always come first.
Electrical Safety
Never work on electrical connections while the power is on. Always turn off the circuit breaker that supplies power to the area where you’re installing the unit. Use a voltage tester to confirm the power is off before touching any wires.
If your LG 14000 BTU model requires hardwiring (common in through-the-wall units), consider hiring a licensed electrician. Improper wiring can lead to fire hazards or damage the unit.
Physical Safety
The LG 14000 BTU air conditioner can weigh between 70 and 90 pounds. Always lift with your legs, not your back, and get help if needed. Wear gloves to protect your hands and safety goggles to shield your eyes from dust and debris.
Location Safety
Avoid installing the unit near heat sources, flammable materials, or areas with high moisture unless the unit is specifically designed for such environments. Also, ensure the installation site is structurally sound and can support the weight.
Step 1: Choose the Right Location
The success of your installation starts with selecting the best spot for your air conditioner.
Window vs. Through-the-Wall Installation
LG 14000 BTU units are available in both window and through-the-wall models. Window units are easier to install and more common for DIYers. Through-the-wall models are more permanent and may require additional construction work.
For window installations, choose a window that:
- Fits the unit’s dimensions (check the manual for exact size requirements)
- Is on an exterior wall
- Receives minimal direct sunlight (to reduce cooling load)
- Is close to a power outlet (within 6 feet)
- Has enough space for proper airflow (at least 12–18 inches of clearance on all sides)
For through-the-wall installations, ensure the wall is strong enough (preferably wood or concrete block) and not load-bearing. Avoid areas near plumbing or electrical lines.
Check Local Building Codes
Some areas require permits for through-the-wall installations or have restrictions on window units. Check with your local building department to ensure compliance.
Step 2: Prepare the Installation Site
Once you’ve chosen the location, it’s time to prepare the area.
Clean the Area
Remove any debris, dust, or old mounting hardware from the window or wall. For window units, clean the window sill and frame. For through-the-wall, mark the cutout area and remove any obstructions.
Measure and Mark
Use the template provided in your LG manual (if available) to mark the exact dimensions of the opening. For window units, measure the window width and height to ensure a snug fit. For through-the-wall, use a level to draw a straight outline of the cutout.
Install Support Brackets (Window Units)
Most window units require a support bracket to hold the weight. Attach the bracket to the exterior wall or window sill using screws. Make sure it’s level and secure. Some models include adjustable legs that rest on the sill—adjust these so the unit slopes slightly downward (about 1/4 inch) to allow condensation to drain outside.
Step 3: Install the Mounting Frame (Through-the-Wall Only)
If you’re installing a through-the-wall unit, you’ll need to install a metal sleeve or frame into the wall.
Cut the Opening
Using a reciprocating saw or hole saw, carefully cut along the marked lines. Wear safety gear and work slowly to avoid damaging wiring or plumbing inside the wall.
Insert the Sleeve
Slide the metal sleeve (included with the unit) into the opening. Secure it with screws through the flange into the wall framing. Use a level to ensure it’s perfectly horizontal.
Seal the Edges
Apply silicone caulk around the exterior edge of the sleeve to prevent water infiltration. Let it dry completely before proceeding.
Step 4: Prepare the Air Conditioner Unit
Before lifting the unit into place, make sure it’s ready for installation.
Unpack and Inspect
Carefully remove the unit from its packaging. Check for any damage during shipping. Remove all tape, foam, and shipping brackets. Keep the manual and warranty information in a safe place.
Attach the Side Panels (Window Units)
Most LG window units come with extendable side panels. Slide them out to match your window width. Secure them with the provided screws or clips.
Install the Top Rail (If Applicable)
Some models include a top rail that attaches to the window frame. Install this now to provide additional support.
Step 5: Lift and Position the Unit
This is the most physically demanding part of the installation.
Get Help
Never try to lift the unit alone. Ask a friend or family member to assist. Use a dolly or hand truck if available.
Position the Unit
For window units:
- Carefully lift the unit and place it in the window opening.
- Ensure the bottom of the unit rests securely on the support bracket or sill.
- Slide the side panels into the window tracks.
- Lower the window sash onto the top of the unit.
For through-the-wall units:
- Slide the unit into the sleeve from the inside.
- Make sure it’s fully seated and level.
- Secure it with the provided screws through the front flange.
Check the Slope
Use a level to confirm the unit slopes slightly downward (about 1/4 inch). This ensures proper drainage of condensation.
Step 6: Secure the Unit
Once the unit is in place, it’s time to secure it to prevent movement and air leaks.
Attach Brackets and Screws
For window units:
- Use L-brackets to secure the top of the unit to the window frame.
- Attach screws through the side panels into the window sash or frame.
For through-the-wall units:
- Secure the unit to the sleeve using the provided screws.
- Check that all fasteners are tight but not over-tightened.
Seal Gaps
Use weatherstripping or foam tape to seal any gaps between the unit and the window or wall. This prevents hot air from entering and cool air from escaping. Apply silicone caulk around the exterior edges for added protection against moisture.
Step 7: Connect the Power
Now it’s time to connect your LG 14000 BTU air conditioner to power.
Window Units
Most window units plug into a standard 120V or 240V outlet. Ensure the outlet is rated for the unit’s amperage (usually 15–20 amps). Avoid using extension cords unless absolutely necessary, and only use heavy-duty, outdoor-rated cords.
Through-the-Wall Units
These often require hardwiring. Turn off the power at the breaker. Remove the electrical cover on the unit and connect the wires (black to black, white to white, green to ground) using wire nuts. Secure the connections and replace the cover.
Important: If you’re not comfortable with electrical work, hire a licensed electrician. Incorrect wiring can damage the unit or create a fire hazard.
Step 8: Test the Unit
Before celebrating, make sure everything is working properly.
Turn On the Power
Restore power at the breaker. Plug in the unit (if applicable) and turn it on using the remote or control panel.
Check for Cooling
Set the temperature a few degrees below room temperature. Wait 10–15 minutes and feel the air coming from the vents. It should be noticeably cooler.
Listen for Unusual Noises
A properly installed unit should run quietly. If you hear rattling, grinding, or loud humming, turn it off and check for loose parts or obstructions.
Check for Leaks
Look for water dripping inside or outside the unit. A small amount of condensation is normal, but excessive leakage may indicate a clogged drain or improper slope.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to address common issues.
Unit Won’t Turn On
- Check the power source: Is the outlet working? Is the breaker tripped?
- Ensure the unit is properly plugged in or wired.
- Check the remote batteries and try using the manual controls.
Poor Cooling
- Make sure the filter is clean. A dirty filter restricts airflow.
- Check that vents are not blocked by furniture or curtains.
- Verify the unit is sized correctly for the room.
- Ensure there are no gaps allowing hot air to enter.
Water Leaking Inside
- Check the slope: The unit should tilt slightly outward.
- Clear the drain hole if clogged.
- Ensure the unit is level and not sagging.
Excessive Noise
- Tighten any loose screws or brackets.
- Make sure the unit is not vibrating against the window or wall.
- Check for debris in the fan or condenser.
Maintenance Tips for Long-Term Performance
To keep your LG 14000 BTU air conditioner running efficiently, regular maintenance is key.
Clean the Filter Monthly
Remove the front panel and take out the washable filter. Rinse it with warm water and let it dry completely before reinserting. A clean filter improves airflow and indoor air quality.
Inspect Seals Annually
Check the weatherstripping and caulk around the unit. Replace any worn or cracked seals to maintain energy efficiency.
Clean the Exterior Coils
Once a year, turn off the power and gently clean the outdoor coils with a soft brush or vacuum. This helps the unit dissipate heat effectively.
Schedule Professional Service
Consider having a technician inspect the unit every 2–3 years, especially if you notice reduced performance or unusual sounds.
Conclusion
Installing an LG 14000 BTU air conditioner is a rewarding DIY project that can significantly improve your home’s comfort. By following this step-by-step guide, you’ve learned how to choose the right location, prepare the site, safely install the unit, and troubleshoot common issues. Remember to prioritize safety, especially when dealing with electricity and heavy lifting.
With proper installation and regular maintenance, your LG air conditioner will provide reliable, energy-efficient cooling for many summers to come. If at any point you feel unsure—especially with electrical work—don’t hesitate to consult a professional. A little caution goes a long way in ensuring a safe and successful installation.
Now that your unit is up and running, sit back, relax, and enjoy the cool, refreshing air. You’ve earned it!
