Assembling your LG portable air conditioner doesn’t have to be stressful. This guide walks you through every step—from unboxing to final setup—so you can enjoy cool, comfortable air in no time. With clear instructions and helpful tips, you’ll have your unit running smoothly in under an hour.
Key Takeaways
- Unbox carefully: Remove all parts gently and check for damage before starting assembly.
- Install the exhaust hose correctly: A secure, airtight connection prevents hot air from leaking back in.
- Use the window kit properly: Adjust the window bracket to fit your window size and seal gaps to maximize efficiency.
- Level the unit: Place the air conditioner on a flat, stable surface to avoid vibration and drainage issues.
- Connect the drain hose (if needed): Some models require manual drainage during high-humidity use.
- Test before full use: Run a short test cycle to ensure proper cooling and airflow.
- Follow safety guidelines: Always plug into a grounded outlet and avoid overloading circuits.
How to Assemble LG Portable Air Conditioner: A Complete Step-by-Step Guide
So, you’ve just brought home your brand-new LG portable air conditioner—congratulations! These sleek, energy-efficient units are perfect for cooling single rooms without the hassle of permanent installation. But before you can kick back and enjoy that refreshing breeze, you’ll need to assemble and set up your new appliance properly.
Don’t worry—this isn’t rocket science. With the right guidance, assembling your LG portable air conditioner is straightforward, safe, and surprisingly quick. In this comprehensive guide, we’ll walk you through every step, from unboxing to powering on, with practical tips, troubleshooting advice, and expert insights to ensure your unit runs efficiently from day one.
Whether you’re a first-time user or upgrading from an older model, this guide is designed to make the process as smooth as possible. We’ll cover everything you need to know, including how to install the exhaust hose, set up the window kit, level the unit, and even handle drainage. By the end, you’ll be confident in your setup and ready to beat the heat.
Let’s get started!
What You’ll Need Before You Begin

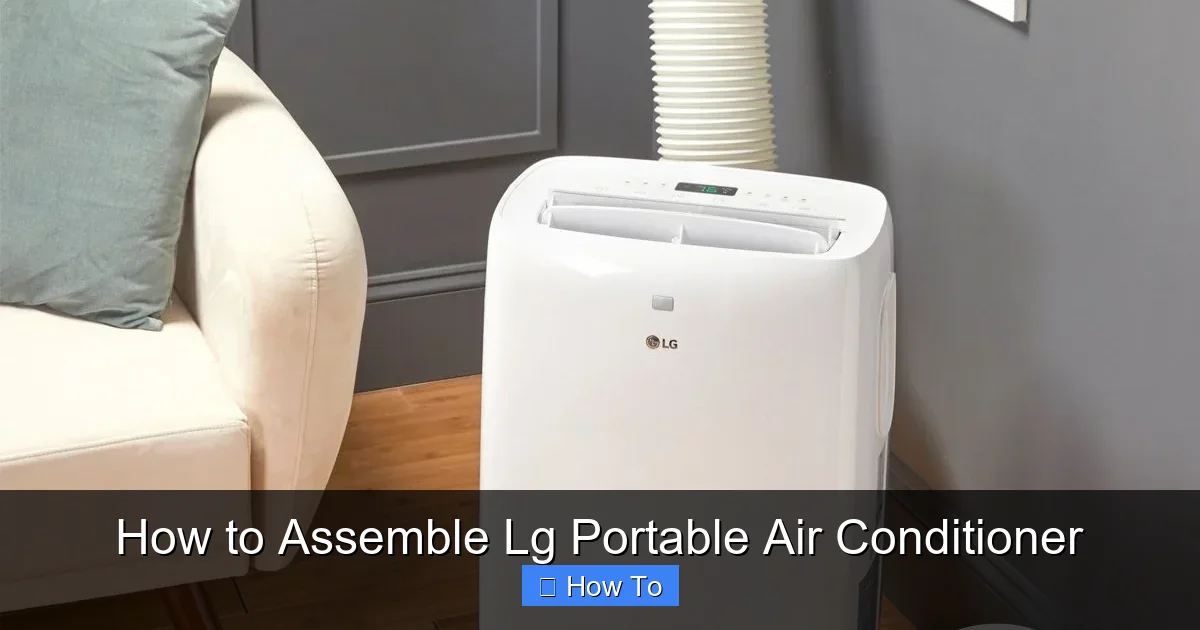

Visual guide about How to Assemble Lg Portable Air Conditioner
Image source: familyhandyman.com
Before diving into assembly, it’s important to gather all the necessary tools and materials. Most LG portable air conditioners come with everything you need in the box, but having a few extras on hand can make the process easier.
Here’s a quick checklist:
- Your LG portable air conditioner unit
- Exhaust hose (usually included)
- Window installation kit (sliding bracket, foam seals, screws)
- Drain hose (if your model requires it)
- User manual (always keep this handy)
- A Phillips-head screwdriver (optional, for tightening brackets)
- Measuring tape (to check window size)
- Scissors or utility knife (for trimming foam seals)
- A helper (optional, but helpful for lifting and positioning)
Make sure you have a clear, flat workspace near the window where you plan to install the unit. Avoid placing the air conditioner on carpets or uneven surfaces, as this can affect drainage and stability.
Also, ensure the room is well-ventilated during setup—especially if you’re working in a small space. And never attempt to assemble the unit while it’s plugged in. Safety first!
Step 1: Unbox Your LG Portable Air Conditioner
The first step in assembling your LG portable air conditioner is carefully unboxing it. These units are heavy and packed tightly to prevent damage during shipping, so take your time.
Remove the Outer Packaging
Start by cutting the tape on the cardboard box. Open the top and lift out the air conditioner unit. You’ll notice it’s wrapped in protective plastic and foam. Remove all outer packaging materials, including the plastic wrap, foam blocks, and any zip ties securing the hose or cords.
Inspect for Damage
Before proceeding, inspect the unit for any visible damage—dents, scratches, or cracks. Check the exhaust hose, power cord, and control panel. If you notice anything unusual, contact LG customer support or the retailer immediately. It’s better to address issues now than after setup.
Identify All Components
Lay out all the parts on a clean, flat surface. Refer to the user manual to confirm you have everything. Typical components include:
- The main air conditioner unit
- Exhaust hose (usually 5–6 feet long)
- Window bracket (adjustable panel)
- Foam seals and gaskets
- Screws and mounting hardware
- Drain hose (if applicable)
- Remote control (with batteries)
- User manual and warranty card
Keep the manual nearby—it contains model-specific instructions and diagrams that can be very helpful.
Step 2: Prepare the Installation Area
A successful setup starts with proper preparation. Choosing the right location and preparing your window are crucial for optimal performance.
Choose the Right Spot
Place your LG portable air conditioner near a window that can accommodate the exhaust hose. Ideal locations include:
- Bedrooms, living rooms, or home offices
- Areas with minimal furniture obstruction
- Rooms with good airflow and access to power
Avoid placing the unit in direct sunlight or near heat sources like ovens or radiators. Also, keep it away from curtains, blinds, or anything that could block airflow.
Measure Your Window
Most LG portable air conditioners are designed for vertical-sliding (single or double-hung) windows. Measure the height of your window opening to ensure the window kit will fit.
If you have a horizontal-sliding window, you may need a special adapter or a different installation method. Check your model’s compatibility in the manual.
Clear the Window Area
Remove any obstacles from the window sill, such as plants, decorations, or screens. You’ll need a clear path for the exhaust hose and window bracket.
If your window has a screen, you can either remove it temporarily or cut a small hole in it to pass the hose through. Just make sure the hole is sealed tightly around the hose to prevent bugs or drafts.
Step 3: Install the Window Kit
The window kit is essential for venting hot air outside. A proper installation ensures maximum cooling efficiency and prevents warm air from re-entering the room.
Assemble the Window Bracket
Most LG models come with an adjustable sliding bracket. Here’s how to set it up:
- Lay the bracket flat on a table.
- Slide the two panels apart to match your window’s height.
- Secure the length using the provided screws or locking mechanism.
- Attach the foam seals to the edges of the bracket. These create an airtight seal when installed.
Some models include a flexible accordion-style panel. If yours does, extend it to fit your window and trim any excess foam with scissors.
Install the Bracket in the Window
- Open your window to the height of the bracket.
- Place the bracket inside the window frame, with the foam side facing outward.
- Close the window firmly onto the bracket to hold it in place.
- Use the included screws to secure the bracket to the window frame (if needed).
Make sure the bracket is level and tightly sealed. Gaps can let hot air back in, reducing cooling efficiency.
Attach the Exhaust Hose Adapter
On one end of the window bracket, you’ll see a round opening for the exhaust hose. Attach the hose adapter (usually a plastic ring or flange) to this opening. Secure it with the provided screws or clips.
Step 4: Connect the Exhaust Hose
The exhaust hose is the lifeline of your portable air conditioner. It removes hot, humid air from the room and vents it outside. A loose or kinked hose can seriously reduce performance.
Attach the Hose to the Unit
- Locate the exhaust port on the back of your LG portable air conditioner.
- Insert one end of the exhaust hose into the port. It should fit snugly.
- Secure it with the included hose clamp or twist-lock mechanism. Tighten it firmly to prevent leaks.
Avoid bending or crushing the hose. Keep it as straight as possible to allow smooth airflow.
Connect the Hose to the Window Bracket
- Take the other end of the hose and connect it to the adapter on the window bracket.
- Push it in until it clicks or feels secure.
- Use a hose clamp if provided to ensure a tight seal.
Double-check both connections. A loose hose can cause hot air to leak back into the room, making your air conditioner work harder and less efficiently.
Seal Any Gaps
If there are small gaps around the hose or bracket, use the included foam tape or weather stripping to seal them. This prevents air leaks and improves energy efficiency.
Step 5: Level and Position the Unit
Proper placement ensures stable operation and prevents drainage issues.
Place the Unit on a Flat Surface
Set your LG portable air conditioner on a level, hard floor. Avoid carpets, rugs, or uneven surfaces. If necessary, use a plywood board or anti-vibration mat to create a stable base.
Ensure Proper Clearance
Leave at least 12–18 inches of clearance around the unit, especially at the front and sides. This allows for proper airflow and prevents overheating.
Do not block the air intake or exhaust vents. Keep furniture, curtains, and other objects away from the unit.
Check the Drainage System
Most LG portable air conditioners are self-evaporating, meaning they automatically expel condensation through the exhaust hose. However, in high-humidity environments, excess water may collect in the internal tank.
If your model has a drain hose, connect it now:
- Locate the drain port on the back or bottom of the unit.
- Attach the drain hose and secure it with a clamp.
- Route the hose to a floor drain, bucket, or outside.
Check the user manual to see if your model requires manual drainage. Some units have an auto-drain feature, while others need occasional emptying.
Step 6: Plug In and Power On
Now that everything is connected, it’s time to power up your air conditioner.
Plug Into a Grounded Outlet
Use a dedicated, grounded electrical outlet. Do not use extension cords or power strips, as they can overheat or cause voltage drops. If you must use an extension cord, choose a heavy-duty, UL-listed cord rated for at least 15 amps.
Turn On the Unit
Press the power button on the control panel or use the remote control. The unit should start up with a beep or light indicator.
Set Your Desired Temperature
Use the remote or control panel to select your preferred temperature and mode (cool, fan, dry, or auto). Start with a moderate setting, like 72°F (22°C), and adjust as needed.
Test the Airflow
Feel the air coming from the front vent. It should be cool and consistent. If the airflow is weak or warm, check the exhaust hose for kinks or leaks.
Step 7: Final Checks and Adjustments
Before settling in, perform a few final checks to ensure everything is working correctly.
Listen for Unusual Noises
A gentle hum is normal, but loud rattling, grinding, or clicking sounds may indicate a problem. Turn off the unit and check for loose parts or obstructions.
Check for Air Leaks
Feel around the window bracket and hose connections. If you feel warm air escaping, tighten the connections or add more sealing foam.
Monitor the Drainage
If your model has a water tank, check it after a few hours of use. Empty it if it’s full. Some units have a “full tank” indicator light.
Adjust the Louvers
Use the remote or manual controls to adjust the air direction. Point the airflow toward the center of the room for even cooling.
Troubleshooting Common Issues
Even with careful assembly, you might run into a few hiccups. Here’s how to fix common problems:
Unit Won’t Turn On
- Check the power cord and outlet.
- Ensure the remote has working batteries.
- Press the power button firmly.
Weak or Warm Airflow
- Inspect the exhaust hose for kinks or blockages.
- Make sure the window bracket is sealed properly.
- Clean the air filter (located behind the front panel).
Loud Noises or Vibrations
- Ensure the unit is level and stable.
- Check for loose screws or panels.
- Move the unit away from walls or furniture.
Water Leaking Inside the Room
- Check if the drain hose is connected and unclogged.
- Empty the internal water tank.
- Ensure the unit is level—tilting can cause water to spill.
Remote Control Not Working
- Replace the batteries.
- Make sure there’s a clear line of sight between the remote and the unit.
- Reset the remote by removing and reinserting the batteries.
If problems persist, consult the user manual or contact LG customer support.
Maintenance Tips for Long-Term Performance
To keep your LG portable air conditioner running efficiently, follow these simple maintenance tips:
- Clean the air filter monthly: Remove the filter, rinse it with water, and let it dry completely before reinstalling.
- Wipe down the exterior: Use a damp cloth to clean the unit’s surface. Avoid harsh chemicals.
- Inspect the exhaust hose: Check for cracks or wear every few months.
- Store properly in winter: If not using the unit year-round, clean it thoroughly, drain all water, and store in a dry place.
- Schedule professional service: Have a technician inspect the unit every 2–3 years for optimal performance.
Conclusion
Assembling your LG portable air conditioner might seem daunting at first, but with this step-by-step guide, you’ve got it covered. From unboxing and installing the window kit to connecting the exhaust hose and powering on, each step is designed to ensure a safe, efficient, and hassle-free setup.
Remember, proper installation is key to maximizing cooling performance and energy efficiency. Take your time, follow the instructions, and don’t hesitate to refer back to this guide or the user manual if you need help.
Once your unit is up and running, you’ll enjoy cool, comfortable air whenever you need it—no ductwork or permanent installation required. So go ahead, relax, and enjoy the refreshing breeze from your new LG portable air conditioner.
Stay cool!
