Key Takeaways

• Read the manual first: Always review safety guidelines before operating the unit.
• Proper ventilation is key: Ensure the exhaust hose is correctly installed for optimal cooling.
• Set your ideal temperature: Use the remote to adjust settings effortlessly.
• Clean filters monthly: Maintain airflow and efficiency with regular filter checks.
• Drain water regularly: Empty the tank to prevent overflow in humid conditions.
• Use timer settings: Schedule on/off times to save energy and enhance comfort.

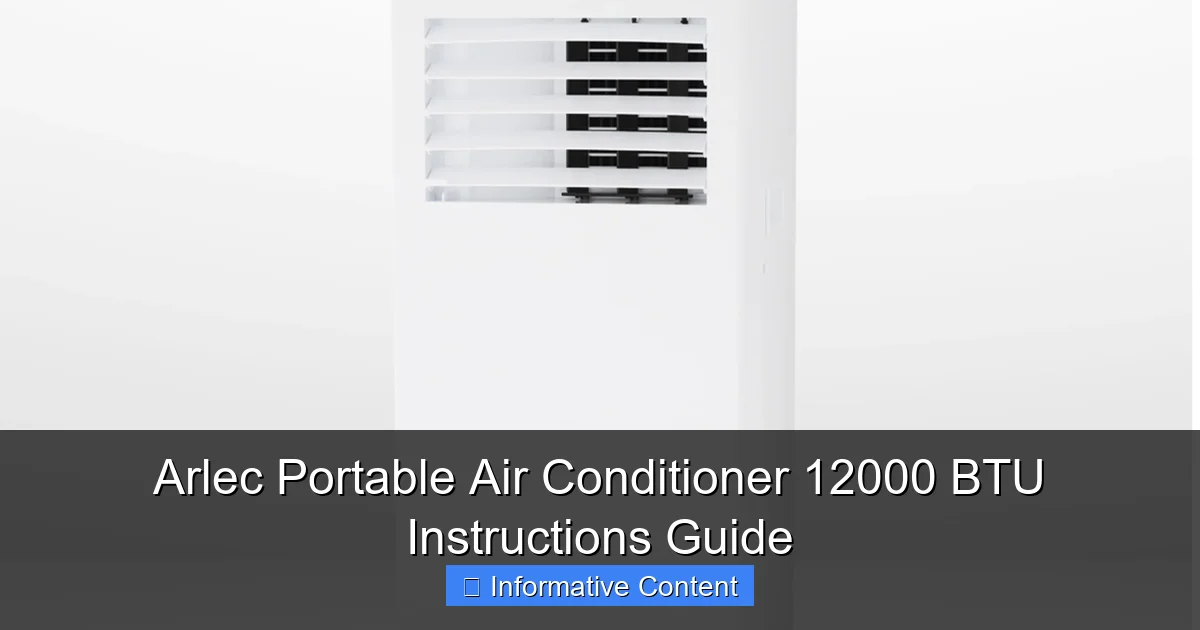

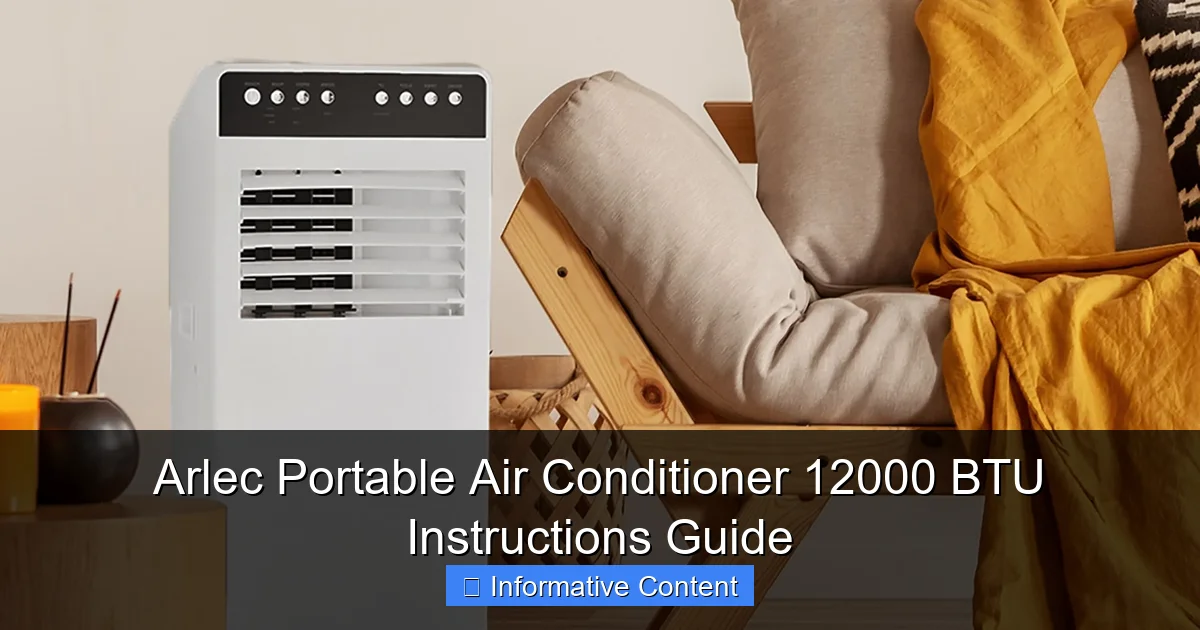

Arlec Portable Air Conditioner 12000 BTU Instructions Guide

It’s one of those sweltering summer afternoons—your ceiling fan is spinning like mad, but the air in your living room still feels like a warm blanket. You’ve tried opening windows, but the outside heat just rolls in. That’s when you remember: you’ve got an Arlec Portable Air Conditioner 12000 BTU tucked in the corner. Relief is just a few steps away… if you know how to set it up properly.

If you’re new to portable air conditioners or just unpacked your Arlec unit for the first time, you’re not alone. These compact cooling machines are lifesavers during heatwaves, but they come with a learning curve. From installation quirks to maintenance tips, getting the most out of your Arlec 12000 BTU model means understanding its features, setup process, and daily operation. This guide walks you through everything you need to know—step by step—so you can stay cool, comfortable, and confident all summer long.

Understanding Your Arlec Portable Air Conditioner 12000 BTU

Before you even plug it in, it helps to know what you’re working with. The Arlec Portable Air Conditioner 12000 BTU is a self-contained cooling unit designed to cool spaces up to approximately 40–50 square meters (around 430–540 square feet), depending on insulation, ceiling height, and ambient temperature. That makes it ideal for medium to large bedrooms, living rooms, or home offices.

What Does 12000 BTU Mean?

BTU stands for British Thermal Unit—a measure of cooling power. In simple terms, the higher the BTU, the more heat the unit can remove from a room per hour. A 12000 BTU portable air conditioner is considered mid-to-high capacity, capable of cooling a typical Australian living space efficiently. For context, a small bedroom might only need 5000–7000 BTU, while larger open-plan areas benefit from 10,000–14,000 BTU models like this one.

Key Features of the Arlec 12000 BTU Model

• Three-in-one functionality: Cooling, dehumidifying, and fan-only modes
• Remote control: Adjust settings from across the room
• Digital display: Easy-to-read temperature and mode indicators
• Timer function: Set it to turn on or off automatically
• Auto-restart: Resumes previous settings after a power outage
• Washable air filter: Helps maintain air quality and efficiency

One thing to note: unlike split-system air conditioners, portable units expel hot air through a hose that must vent outside. This means you’ll need a window or wall opening nearby—more on that in the installation section.

Unboxing and Initial Setup

When your Arlec Portable Air Conditioner arrives, the first thing you’ll notice is its compact, upright design—usually on wheels for easy mobility. Unboxing is straightforward, but taking a few minutes to inspect and prepare can save headaches later.

What’s in the Box?

Typically, you’ll find:

• The main air conditioning unit
• Exhaust hose (usually 1.5–2 meters long)
• Window venting kit (sliding panel or adjustable bracket)
• Remote control (with batteries)
• User manual and warranty card
• Drain hose (for dehumidifier mode, if applicable)

Pro tip: Keep all packaging materials for at least a week. If something’s missing or damaged, you’ll want to return or exchange it quickly.

Choosing the Right Location

Placement matters. For optimal performance, place your Arlec unit:

• On a flat, stable surface (avoid carpets that block airflow)
• At least 30–50 cm away from walls or furniture to allow proper air circulation
• Close to a window or sliding door for venting the exhaust hose
• Away from direct sunlight or heat sources (like ovens or radiators)

A common mistake? Placing the unit in a corner with no airflow. This can cause the unit to overheat or reduce cooling efficiency by up to 20%. Think of it like a person trying to breathe with a pillow over their face—it just won’t work well.

Step-by-Step Installation Instructions

Now for the part everyone dreads: installation. But don’t worry—setting up your Arlec Portable Air Conditioner 12000 BTU is simpler than it looks. Follow these steps, and you’ll be cooling your space in under 30 minutes.

Step 1: Prepare the Window Venting Kit

Most Arlec models come with a universal window kit that fits standard windows (sliding or double-hung). Here’s how to install it:

1. Measure your window opening to ensure the kit fits.
2. Slide the adjustable panel into the window track.
3. Secure it in place using the included screws or locking mechanism.
4. Cut a small notch in the panel (if needed) to allow the exhaust hose to pass through.

If you have a sliding glass door, you may need a specialized door kit (sold separately). Some users tape a plastic sheet over the gap, but this is less effective and not recommended for long-term use.

Step 2: Attach the Exhaust Hose

The exhaust hose removes hot air from the unit and vents it outside. It’s crucial to install this correctly to avoid warm air cycling back into the room.

1. Connect one end of the hose to the back of the Arlec unit (usually labeled “Exhaust”).
2. Secure it with the provided clamp or twist-lock mechanism.
3. Run the other end through the window venting kit.
4. Seal any gaps around the hose with foam tape or weather stripping.

Important: Keep the hose as straight as possible. Sharp bends or kinks can restrict airflow and reduce efficiency. If the hose is too long, don’t coil it—trim it to size using a utility knife.

Step 3: Plug In and Power On

Once everything is connected, plug the unit into a dedicated power outlet. Avoid using extension cords or power boards, as portable ACs draw significant current. If you must use an extension cord, ensure it’s heavy-duty (at least 14-gauge wire) and rated for the unit’s power consumption.

Turn on the unit using the power button on the control panel or remote. You should hear the fan start and see the digital display light up.

Step 4: Set Your Desired Temperature

Use the remote or control panel to select your preferred mode (Cool, Fan, or Dry) and set the temperature. The Arlec 12000 BTU typically cools between 16°C and 30°C. Start with a moderate setting—say, 22°C—and adjust based on comfort.

Tip: Don’t set the temperature too low (like 16°C) in extreme heat. The unit may struggle to reach that level, running continuously and increasing energy use. A difference of 8–10°C between indoor and outdoor temperatures is usually sufficient.

Operating Modes and Daily Use Tips

Your Arlec Portable Air Conditioner isn’t just a one-trick pony. It offers multiple modes to suit different needs. Understanding how and when to use each can improve comfort and save energy.

Cooling Mode

This is the default mode for hot days. The unit pulls in warm air, cools it using refrigerant, and blows chilled air back into the room. The exhaust hose releases the extracted heat outside.

Best for: Hot, sunny afternoons when you need rapid cooling.

Fan Mode

In this mode, the compressor turns off, and only the internal fan runs. It circulates air without cooling—great for mild days or when you just need a breeze.

Best for: Spring or autumn days, or as a nighttime option to save power.

Dehumidifier (Dry) Mode

This mode removes moisture from the air without significantly lowering the temperature. It’s useful in humid climates or during rainy seasons when dampness makes the air feel heavier.

Note: In dehumidifier mode, you may need to drain water periodically. Some models have an auto-drain feature, while others require manual emptying of a collection tank.

Using the Timer and Sleep Functions

The timer lets you schedule when the unit turns on or off—perfect for cooling your room before you get home or turning it off after you fall asleep. The sleep mode gradually adjusts the temperature over time to match your body’s natural cooling cycle, reducing energy use while maintaining comfort.

Example: Set the timer to turn on 30 minutes before you arrive home from work. Your living room will be cool and welcoming without running the AC all day.

Remote Control Tips

The remote is handy, but it’s easy to misplace. Store it in a designated spot—like a drawer or remote caddy. If the remote stops working, check the batteries first. Also, ensure there’s a clear line of sight between the remote and the unit’s sensor (usually on the front panel).

Maintenance and Troubleshooting

Like any appliance, your Arlec Portable Air Conditioner needs regular care to perform well and last longer. Neglecting maintenance can lead to reduced cooling, strange noises, or even breakdowns.

Cleaning the Air Filter

The air filter captures dust, pet hair, and allergens. A clogged filter restricts airflow and forces the unit to work harder.

• Turn off and unplug the unit.
• Remove the filter (usually behind a front or side panel).
• Rinse it under lukewarm water. Avoid soap or harsh cleaners.
• Let it dry completely before reinstalling.

Do this every 2–4 weeks during heavy use. If you have pets or allergies, clean it more often.

Checking the Exhaust Hose

Over time, dust and debris can build up inside the hose. Every few months, disconnect it and vacuum the interior. Also, inspect for cracks or wear—replace the hose if damaged.

Draining Water (If Applicable)

In dehumidifier or high-humidity conditions, water may collect in an internal tank. Most Arlec models have a drain port or auto-shutoff when the tank is full. Check the manual for your specific model.

If your unit doesn’t auto-drain, you’ll need to empty the tank manually. Place a shallow pan underneath the drain port and attach the provided hose. Run the unit in dehumidifier mode until the tank is empty.

Common Issues and Fixes

Here are a few problems you might encounter and how to solve them:

Issue	Possible Cause	Solution
Unit won’t turn on	Power issue, remote batteries dead	Check outlet, replace remote batteries, try manual button
Not cooling effectively	Dirty filter, blocked hose, incorrect mode	Clean filter, straighten hose, ensure Cool mode is selected
Loud noises or vibrations	Unit not level, loose parts	Place on flat surface, check for loose panels or hoses
Water leaking	Clogged drain, overfilled tank	Clear drain hose, empty water tank
Remote not responding	Weak batteries, blocked sensor	Replace batteries, clean sensor on unit

If problems persist after troubleshooting, contact Arlec customer support or a qualified technician. Avoid opening the unit yourself—this can void the warranty and pose safety risks.

Energy Efficiency and Cost-Saving Tips

Portable air conditioners are convenient, but they’re not the most energy-efficient cooling option. However, with smart usage, you can keep your electricity bills in check.

How Much Power Does It Use?

The Arlec 12000 BTU model typically consumes between 1.2 and 1.5 kilowatts per hour (kWh). That’s about $0.30–$0.45 per hour at average Australian electricity rates (around $0.25–$0.30 per kWh).

For comparison, a similarly sized split-system AC might use 0.8–1.0 kWh, making it more efficient. But portables win on flexibility and no-installation costs.

Tips to Reduce Energy Use

• Seal windows and doors: Prevent cool air from escaping and hot air from entering.
• Use curtains or blinds: Block sunlight during the hottest part of the day.
• Run it during off-peak hours: Some energy plans offer lower rates at night.
• Don’t overcool: Set the thermostat to 24–26°C for comfort and efficiency.
• Turn it off when not needed: Use the timer or manually switch it off when leaving the room.

Bonus tip: Pair your portable AC with a ceiling or pedestal fan. The fan helps circulate cool air, allowing you to raise the thermostat setting by a few degrees without sacrificing comfort.

Final Thoughts: Is the Arlec 12000 BTU Right for You?

After using the Arlec Portable Air Conditioner 12000 BTU for several summers, I can say it’s a solid choice for renters, small apartments, or homes without ducted cooling. It’s easy to move, simple to install, and effective at cooling medium to large rooms. The remote control and timer add convenience, and the washable filter helps keep maintenance low.

That said, it’s not perfect. The exhaust hose setup can be a hassle, especially in apartments with tricky windows. And while it cools well, it’s noisier than a split system—expect a constant hum, especially on high settings. If you’re a light sleeper, consider running it on low or using it only during the day.

But for the price and flexibility, the Arlec 12000 BTU delivers reliable performance. Just follow the instructions, keep up with maintenance, and use it wisely. With the right setup, you’ll stay cool all summer—without breaking the bank or your sanity.

So the next time the heat hits, don’t sweat it. Your Arlec Portable Air Conditioner is ready to go. Just plug it in, set your temperature, and breathe easy.

“`

Frequently Asked Questions

How do I set up the Arlec Portable Air Conditioner 12000 BTU for the first time?

Begin by placing the unit near a window to allow for proper exhaust hose installation. Follow the included instructions to attach the window kit and secure the hose, ensuring a tight seal to prevent warm air from re-entering the room.

What size room can the Arlec 12000 BTU portable air conditioner cool effectively?

The Arlec Portable Air Conditioner 12000 BTU is ideal for cooling rooms up to 40 square metres, such as large bedrooms or small living areas. For best results, ensure the space is well-insulated and minimize heat sources.

Do I need to drain the water from the Arlec 12000 BTU portable air conditioner?

This model features an auto-evaporation system that reduces the need for manual draining. However, in high-humidity conditions, you may need to empty the internal water tank periodically as indicated by the full-tank alert.

How do I use the remote control with my Arlec portable air conditioner?

Insert the provided batteries into the remote and point it toward the unit’s receiver. You can adjust temperature, fan speed, mode (cool, fan, dry), and timer settings directly from the remote for convenient operation.

Can the Arlec 12000 BTU portable air conditioner heat as well as cool?

No, this model is designed for cooling only and does not include a heating function. It operates in cool, fan, and dehumidify modes, making it suitable for warm weather use.

What maintenance is required for the Arlec portable air conditioner 12000 BTU?

Regularly clean or replace the washable air filter every two weeks to maintain efficiency. Also, check the exhaust hose and water tank periodically to ensure proper airflow and prevent blockages.
