How to Use HVAC Manifold Gauges PDF: Mastering the Art of A/C System Maintenance
To use HVAC manifold gauges PDF, connect high-pressure side to red port and low-pressure side to blue port. Then, connect waste pipe to center of manifold for additional gauges and meters.
Understanding how to use HVAC manifold gauges is crucial for effectively diagnosing and servicing air conditioning and refrigeration systems. By following the proper procedures and making accurate readings with the gauges, technicians can ensure optimal performance and efficiency of HVAC systems.
It is essential to learn how to interpret the readings on the gauges and effectively utilize them to make informed decisions on maintenance and repair tasks, ultimately leading to improved system functionality and customer satisfaction. With the right knowledge and skills in using HVAC manifold gauges, technicians can troubleshoot issues, monitor system pressures, and maintain the overall health of HVAC systems. Familiarity with the manifold gauges' functions and proper usage can enhance the quality of HVAC services provided.

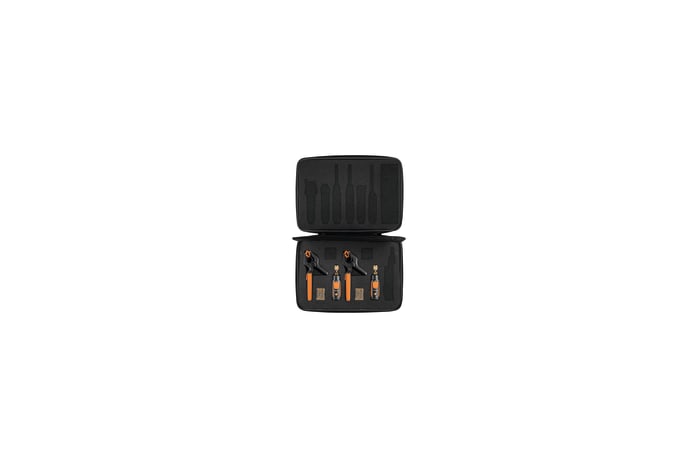

Testo manifold gauge kit used for A/C pressure testing
Credit: www.testo.com
Assembling The Manifold
Learn how to use HVAC manifold gauges with this step-by-step guide on assembling the manifold. Connect the high-pressure side to the red port and the low-pressure side to the blue port. Perfect for beginners looking to understand how to read gauges and troubleshoot pressure issues.
Components Of Manifold Gauge Set
Assembling the manifold gauge set requires understanding its components. The set typically includes high and low-pressure gauges, hoses, and valves.
Component details: The high‑pressure gauge (red) reads discharge pressure, the low‑pressure gauge (blue) reads suction pressure. Hoses are color‑coded (red, blue, yellow) for high, low, and service ports. Valves on the manifold body control refrigerant flow to each gauge. A sight glass on some models lets you visually confirm refrigerant condition. In practice, always verify that the hose fittings match your system’s service ports before starting.
Calibrating The Gauges
For accurate readings, calibrating the gauges is crucial . Ensure each gauge is properly zeroed before proceeding with any HVAC tasks.
Calibration procedure: With the manifold disconnected from any system, open both hand valves to atmosphere. The needles should rest at zero; if not, use the calibration screw on the gauge face to adjust. Then connect a known‑pressure reference (such as a calibrated nitrogen cylinder) to confirm accuracy across the scale. A common mistake is skipping this step after a gauge has been dropped or exposed to extreme temperature swings.
Steps To Assemble The Manifold Gauge Set:
Inspect each component for damage or defects .
Attach the hoses to the corresponding ports on the manifold.
Securely tighten the hose connections to prevent leaks.
Check the valve controls for proper functionality.
Once the manifold gauge set is assembled correctly, you are ready to use it for pressure testing and diagnostics .
Leak‑test after assembly: Pressurize the manifold with dry nitrogen to 150 psi and watch for pressure drop over five minutes. Any loss indicates a loose fitting or damaged O‑ring — fix it before connecting to a live system.
Safety Precautions When Using Manifold Gauges
- Wear safety glasses and gloves; refrigerant can cause frostbite and eye injury.
- Never exceed the manifold’s rated working pressure (typically 800 psi for R‑410A sets).
- Ensure the work area is well‑ventilated; refrigerant vapors displace oxygen.
- Close both hand valves before disconnecting hoses to prevent sudden refrigerant release.
- Follow EPA Section 608 guidelines for refrigerant handling and recovery (EPA Section 608).
Using The Gauges
To effectively utilize HVAC manifold gauges, it is essential to understand the proper techniques. By following the steps below, you can efficiently measure and monitor pressure levels in HVAC systems.
Connecting The Hoses
Connect the high-pressure side of the cooling line to the red port on the gauge.
Attach the low-pressure side of the gauge to the blue port.
Connect a waste or vent pipe to the center of the manifold.
Additional gauges such as micron meters can be linked to the extra connections.
Hose‑handling tips: Use a light coat of refrigerant‑compatible lubricant on the flare threads to avoid cross‑threading. Never force a connection — if it resists, realign the fitting. In practice, label each hose at the manifold end to prevent accidental reversal on multi‑system jobs.
Reading The Gauges
High-pressure readings are displayed on the red gauge.
Low-pressure data is indicated on the blue gauge.
Utilize the valves on the side to regulate gas flow to the low and high-pressure valves.
The manifold serves as the central point for all connections, allowing for accurate pressure measurement.
Interpreting superheat and subcool: After stabilizing the system, convert the low‑side pressure to saturated temperature using a PT chart for the specific refrigerant. Subtract the actual suction line temperature to get superheat. For subcool, convert high‑side pressure to saturated temperature and subtract the liquid line temperature. These values reveal charge condition more reliably than pressure alone.
Troubleshooting And Maintenance
When troubleshooting and maintaining HVAC systems, it's essential to use HVAC manifold gauges properly to measure pressures and temperatures. The PDF guide provides clear instructions on assembling the gauges, calibrating, testing, and connecting hoses. Understanding how to use these gauges is crucial for accurate diagnosis and efficient maintenance of HVAC systems.
Troubleshooting and Maintenance of HVAC Manifold Gauges
Saturated Temperatures
The saturated temperature is a vital indicator in HVAC troubleshooting. By referring to a pressure-temperature chart, you can find the temperature at which a refrigerant will change from liquid to vapor and vice versa. This foundational knowledge can help identify issues within the system by comparing actual temperatures to the expected saturated temperatures for specific pressures.
Modern refrigerant PT charts: For R‑410A and R‑32 systems, use updated charts that reflect the higher operating pressures. Many digital manifolds now embed these charts, but a printed laminated chart remains a reliable backup. ASHRAE publishes current refrigerant property data (ASHRAE).
Dealing With Low Refrigerant Pressure
Low refrigerant pressure can indicate a variety of potential issues within an HVAC system. Proper troubleshooting of low refrigerant pressure involves checking for leaks, ensuring proper insulation on refrigerant lines, and verifying that the system is not overcharged or undercharged. Regular maintenance to address these potential issues ensures an efficient and properly functioning HVAC system.
In addition, always look for any visible signs of oil around A/C components, as this can indicate a potential refrigerant leak. Identifying and rectifying these issues promptly can prevent further damage to the system and maintain optimal performance.
Leak detection methods: Beyond visual oil stains, use an electronic leak detector for pinpoint accuracy, or inject UV dye and inspect with a UV lamp. For micro‑leaks, a nitrogen pressure test at 300 psi held for 15 minutes can reveal pressure decay. If you’re diagnosing warm airflow, our guide on diagnosing warm airflow walks through the full workflow.
Refrigerant Identification and Compatibility
Before connecting gauges, confirm the refrigerant type on the system nameplate. Mixing refrigerants (e.g., R‑22 with R‑410A) contaminates the charge and damages components. Use a refrigerant identifier if the label is missing. Note that as of 2026, R‑410A is being phased down in favor of lower‑GWP alternatives like R‑32 and R‑454B; ensure your gauge set is rated for the refrigerant you’re working with.
Advanced Techniques
Unlock the full potential of HVAC manifold gauges with advanced techniques found in PDF guides. Learn precise calibration methods and efficient hose connections for optimal performance and accurate readings. Master the art of utilizing manifold gauge sets effectively for HVAC systems.
In order to fully utilize HVAC manifold gauges and maximize their potential, it's important to explore some advanced techniques. From understanding the difference between charging and recovery tanks to installing additional gauges, these techniques will provide you with a deeper understanding and better control over your HVAC system.
When it comes to working with HVAC manifold gauges, it's crucial to understand the distinction between charging and recovery tanks. Charging tanks are used to add refrigerant to the system, while recovery tanks are used to collect and store refrigerant that is being removed from the system. By using the appropriate tank for each process, you can ensure a smooth and efficient operation.
If you want to take your HVAC system management to the next level, consider installing additional gauges to your manifold setup. These gauges can provide you with more specific and detailed information, allowing you to monitor and adjust various aspects of the system. Some examples of additional gauges include temperature gauges, compound gauges, and vacuum gauges.
By expanding your manifold gauge setup, you can gain better control over your HVAC system's performance and make more informed decisions on maintenance and troubleshooting. Whether you choose to add one gauge or several, it's important to follow the manufacturer's instructions for installation and calibration.
Digital Manifold Gauges vs. Analog
Digital manifolds display pressure, temperature, superheat, and subcool simultaneously, and many log data for reports. Analog gauges are rugged, battery‑free, and preferred by technicians who value tactile feedback. In practice, a digital set speeds up commissioning on new installs, while an analog backup is wise for harsh field conditions.
Data Logging and Reporting
High‑end digital manifolds can export CSV files via Bluetooth. Use this to document system performance for warranty claims or preventive maintenance contracts. Pair the data with a seasonal upkeep checklist to show customers year‑over‑year trends.
Sample preventive maintenance timeline for commercial HVAC
Credit: atc.ca
Common Mistakes to Avoid
- Reversing hoses: Connecting high‑side to the blue port gives false low readings and can damage the gauge.
- Skipping zero‑check: An uncalibrated gauge leads to misdiagnosis of charge level.
- Over‑tightening flare nuts: This cracks the flare and creates leaks.
- Venting refrigerant: Always recover to a certified cylinder; venting violates EPA regulations.
- Ignoring temperature compensation: Pressure readings must be corrected for ambient temperature when using PT charts.
Maintaining Your Manifold Gauge Set
- Clean gauge faces with a soft cloth; avoid solvents that cloud the lens.
- Inspect hose gaskets and O‑rings quarterly; replace at first sign of wear.
- Store the set in a padded case to protect the bourdon tubes from shock.
- Re‑calibrate annually or after any impact, using a certified pressure standard.
- For a complete condenser‑focused maintenance routine, see our condenser issue guide.
Choosing the Right Manifold Gauge Set for Your Needs
Consider the refrigerants you service most. A 4‑valve digital manifold rated for R‑410A/R‑32 covers most residential and light‑commercial work. If you handle large commercial chillers, look for a 6‑valve set with higher pressure rating (up to 1,200 psi). Budget‑friendly analog sets remain viable for basic service calls. When selecting a new home system, our article on selecting the best unit includes gauge‑set recommendations for installers.
Recovery cylinders for safe refrigerant handling
Credit: www.cpsproducts.com
Current Refrigerant Regulations (2026 Update)
As of 2026, the EPA’s AIM Act continues the phasedown of HFCs. R‑410A production allowances are reduced annually; R‑32 and R‑454B are becoming standard in new equipment. Technicians must hold current Section 608 certification and use recovery equipment certified to AHRI 740. Stay updated via the EPA’s SNAP program and manufacturer bulletins. For energy‑saving thermostat settings that complement modern refrigerants, review our tips on energy‑saving thermostat settings.
Frequently Asked Questions On How To Use Hvac Manifold Gauges Pdf
How Do You Use An Ac Manifold Gauge?
To use an AC manifold gauge, assemble it, calibrate the pressure, connect hoses, and interpret readings cautiously.
How Do You Read Hvac Pressure Gauges?
To read HVAC pressure gauges, connect low-pressure side to blue port and high to red. Use valves to control gas flow. Manifold is the central hub.
Where Do You Hook Up The Yellow Hose From Your Gauges?
To hook up the yellow hose from your gauges, connect it to the low-pressure port on your AC system.
How Do You Use Analog Gauges For Hvac?
To use analog gauges for HVAC, follow these steps:
Connect the high-pressure side of the cooling line to the red port. 2. Connect the low-pressure side of the gauge to the blue port. 3. Connect a waste or vent pipe to the center of the manifold.
You can also connect additional gauges to other ports. 5. Ensure the service valves are closed and crack open the tank valve.
Conclusion
Understanding how to use HVAC manifold gauges is essential for HVAC technicians and professionals. Proper use of these gauges enables accurate monitoring and control of refrigeration systems. By following the correct steps and techniques mentioned in this guide, users can effectively utilize HVAC manifold gauges to diagnose, troubleshoot, and maintain HVAC systems.
Next step: Download our printable quick‑reference card for manifold gauge hook‑up and superheat/subcool calculations, and pair it with the split system setup steps for a complete field kit.
