Installing an LG 15000 BTU air conditioner can be a straightforward DIY project with the right tools and guidance. This guide walks you through every step—from choosing the right location to testing your unit—ensuring safe, efficient cooling all summer long.
Key Takeaways
- Choose the right location: Pick a shaded, level spot near a power source and away from heat sources for optimal performance.
- Gather essential tools: You’ll need a drill, level, screwdriver, measuring tape, and possibly a helper for heavy lifting.
- Follow safety first: Always turn off power at the breaker and wear protective gear like gloves and safety glasses.
- Secure the mounting bracket properly: A level and sturdy bracket prevents leaks, noise, and damage over time.
- Seal all gaps: Use foam tape and caulk to seal around the unit to prevent air leaks and improve energy efficiency.
- Test before finalizing: Run the AC briefly before sealing everything to ensure it’s working correctly.
- Maintain regularly: Clean filters monthly and inspect seals annually to keep your unit running efficiently.
How to Install LG 15000 BTU Air Conditioner
Summer heat can be brutal, but a reliable air conditioner makes all the difference. If you’ve recently purchased an LG 15000 BTU window or portable air conditioner, you’re probably eager to get it up and running. The good news? Installing an LG 15000 BTU air conditioner is totally doable as a DIY project—even if you’re not a seasoned handyman.
This comprehensive guide will walk you through every step of the installation process, whether you’re installing a window unit or a portable model. We’ll cover everything from choosing the perfect spot to testing your system and troubleshooting common issues. By the end, you’ll have a cool, comfortable space and the satisfaction of doing it yourself.
Before we dive in, a quick note: always refer to your specific LG model’s user manual. While this guide covers general best practices, your unit may have unique requirements. Safety is our top priority, so we’ll emphasize precautions throughout.
Let’s get started!
What You’ll Need

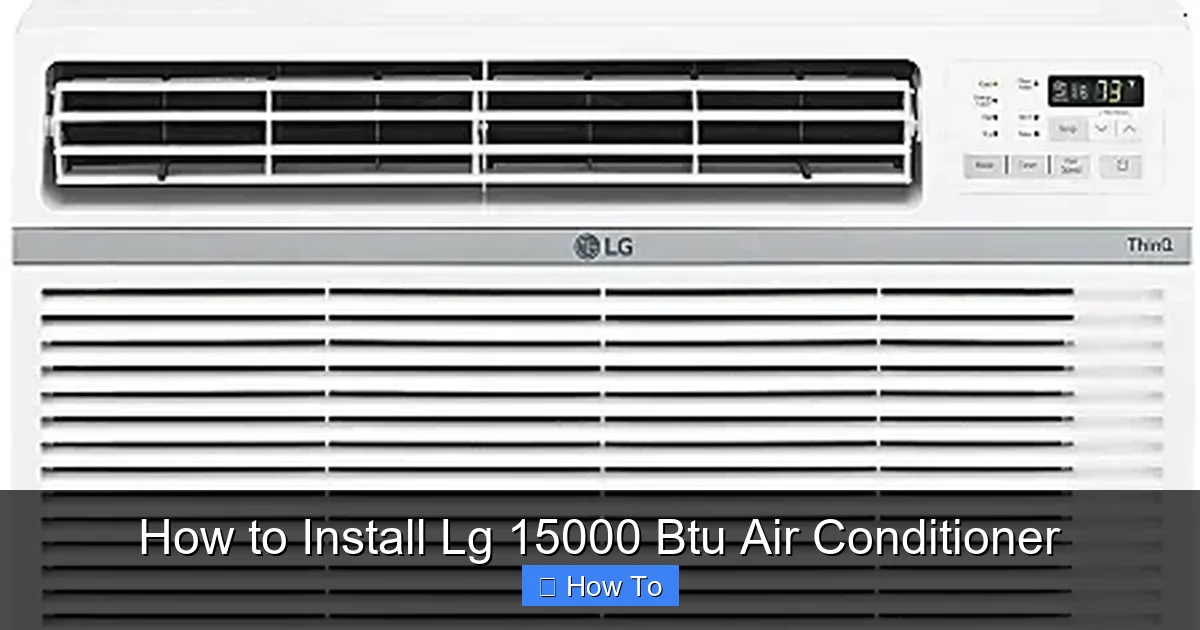

Visual guide about How to Install Lg 15000 Btu Air Conditioner
Image source: media.officedepot.com
Before you begin, make sure you have all the necessary tools and materials. Having everything ready will save time and prevent mid-installation trips to the hardware store.
Basic Tools
- Measuring tape
- Level
- Drill with drill bits
- Screwdriver (Phillips and flathead)
- Adjustable wrench
- Pencil or marker
Safety Gear
- Safety glasses
- Work gloves
- Sturdy shoes
Installation Materials
- Mounting brackets (if required by your model)
- Foam weatherstripping or sealant tape
- Silicone caulk
- Screws and wall anchors (usually included)
- Support bracket or L-brackets (for window units)
- Extension cord (only if absolutely necessary and rated for AC use)
Optional but Helpful
- A helper (window units can be heavy)
- Vacuum with hose attachment (for cleaning the area)
- Step ladder (for high windows)
Step 1: Choose the Right Location
The success of your LG 15000 BTU air conditioner installation starts with picking the right spot. A poor location can lead to inefficiency, noise, and even damage to your unit.
For Window Units
Choose a window that:
- Faces north or east (to avoid direct afternoon sun)
- Is structurally sound and can support the weight (LG 15000 BTU units typically weigh 60–80 lbs)
- Has easy access to a grounded electrical outlet
- Is away from heat sources like grills, dryers, or direct sunlight
- Allows for proper airflow (at least 12 inches of clearance on sides and top)
Avoid installing in a window that opens downward or has a weak frame. Double-hung or sliding windows work best.
For Portable Units
Portable ACs are more flexible but still need thoughtful placement:
- Place near a window for the exhaust hose
- Keep the unit on a flat, stable surface
- Ensure the exhaust hose has a short, straight path to the window
- Leave at least 20 inches of clearance around the unit for airflow
Pro tip: Avoid placing the portable unit in high-traffic areas where the hose could be tripped over.
Step 2: Prepare the Installation Area
A clean, level, and secure setup ensures your air conditioner runs smoothly and lasts longer.
Clean the Window or Wall
Remove dirt, dust, and debris from the window frame or wall where the unit will sit. Use a damp cloth and let it dry completely. This helps adhesives and seals stick better.
Check the Window Size
Measure the width and height of your window opening. Compare it to the dimensions in your LG air conditioner’s manual. Most LG 15000 BTU window units fit windows between 24 and 42 inches wide and 14 to 18 inches tall.
If your window is too wide, you may need to install side panels or extenders (often included). If it’s too narrow, you might need to build a wooden frame to fill the gap—never force the unit into a tight space.
Inspect the Electrical Outlet
Your LG 15000 BTU air conditioner requires a dedicated 20-amp, 230-volt circuit for window units or a 15-amp, 120-volt outlet for portable models. Never plug into an extension cord unless it’s a heavy-duty, grounded type rated for air conditioners.
Check the outlet with a voltage tester to ensure it’s live and properly grounded. If you’re unsure, consult an electrician.
Step 3: Install the Mounting Bracket (Window Units Only)
Most LG window air conditioners come with a mounting bracket or support frame. This is critical for stability and preventing water leakage.
Position the Bracket
1. Open the window and place the bracket on the windowsill.
2. Use a level to ensure it’s perfectly horizontal.
3. Mark the screw holes with a pencil.
Secure the Bracket
1. Drill pilot holes into the sill (use a masonry bit if drilling into brick or concrete).
2. Insert wall anchors if needed.
3. Screw the bracket into place using the provided screws.
4. Double-check that it’s level and tight.
Pro tip: Apply a thin bead of silicone caulk under the bracket before screwing it down to prevent water seepage.
Step 4: Install the Air Conditioner
Now comes the main event—placing your LG 15000 BTU air conditioner into position.
For Window Units
1. With a helper, lift the unit and slide it into the window opening.
2. Lower it onto the mounting bracket.
3. Close the window sash firmly against the top of the unit.
4. Extend the side panels (if included) to fill gaps on the sides.
5. Secure the panels with screws through the pre-drilled holes.
For Portable Units
1. Place the unit near the window.
2. Attach the exhaust hose to the back of the AC using the provided clamp.
3. Connect the other end to the window kit (usually a sliding panel or foam insert).
4. Secure the hose with tape or clamps to prevent leaks.
Level the Unit
Use a level to check that the unit is slightly tilted backward (about 1/4 inch). This allows condensation to drain properly. Adjust the feet or use shims if necessary.
Step 5: Seal All Gaps
Air leaks reduce efficiency and let in humidity. Sealing properly is one of the most important steps.
Apply Foam Weatherstripping
Cut foam tape to fit around the edges where the unit meets the window frame. Press it firmly into place. This creates an airtight seal.
Use Silicone Caulk
Apply a thin, continuous bead of silicone caulk along the outside edges of the unit where it meets the wall or window frame. Smooth it with your finger or a caulk tool.
Avoid caulking the drainage holes—these need to stay open for condensation to escape.
Check for Gaps
Once sealed, inspect all sides. If you see light coming through, add more foam or caulk. A well-sealed unit can improve energy efficiency by up to 20%.
Step 6: Connect Power and Test the Unit
Safety first—always turn off the power at the breaker before plugging in your air conditioner.
Plug In the Unit
Plug the LG 15000 BTU air conditioner directly into the wall outlet. Avoid power strips or extension cords unless absolutely necessary.
Turn On the Power
Flip the breaker back on and press the power button on the unit.
Test the Functions
Set the thermostat to a low temperature and select “Cool” mode. Listen for the compressor to start (a low hum). Feel for cool air coming from the vents.
Check that:
- The fan is running smoothly
- There are no unusual noises or vibrations
- Water is draining properly (look for a drip from the back)
- The remote control (if included) works
Let it run for 10–15 minutes to ensure everything is working correctly.
Step 7: Final Adjustments and Maintenance Tips
Your installation is almost complete! A few final touches will keep your LG 15000 BTU air conditioner running efficiently for years.
Secure Loose Cords
Use zip ties or cord clips to keep power cords tidy and out of the way.
Install a Window Lock
For security, install a window lock or pin to prevent the window from being opened from the outside.
Set a Maintenance Schedule
- Clean or replace the air filter every 30–60 days
- Wipe down the exterior with a damp cloth monthly
- Check seals and caulk annually for cracks or gaps
- Vacuum the condenser coils (if accessible) once a year
Use a Timer or Smart Plug
Save energy by setting your AC to turn on 30 minutes before you get home or using a smart plug to control it remotely.
Troubleshooting Common Installation Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Unit Won’t Turn On
- Check the power outlet with another device
- Ensure the breaker hasn’t tripped
- Verify the thermostat is set below room temperature
- Make sure the air filter isn’t clogged
Not Cooling Enough
- Check for air leaks around the unit
- Ensure the filter is clean
- Verify the unit is the right size for the room (15000 BTU cools about 875 sq ft)
- Close curtains or blinds to block sunlight
Water Leaking Inside
- Make sure the unit is tilted slightly backward
- Check that drainage holes aren’t blocked
- Ensure the window seal is tight
Loud Noises or Vibrations
- Tighten all screws and brackets
- Ensure the unit is level and secure
- Check that nothing is touching the fan blades
If problems persist, consult your LG manual or contact customer support.
Conclusion
Installing an LG 15000 BTU air conditioner doesn’t have to be intimidating. With the right preparation, tools, and attention to detail, you can complete the job safely and effectively in just a few hours.
Remember: choosing the right location, securing the unit properly, and sealing all gaps are the keys to long-term performance and energy efficiency. Regular maintenance will keep your AC running smoothly season after season.
Now that you’re all set, kick back, relax, and enjoy the cool, refreshing air. You’ve earned it!
