Building HVAC System Diagram: The Ultimate Guide for Efficient Cooling and Heating

Building a HVAC system diagram involves calculating heat loss, selecting equipment, and designing duct runs. Understanding the different types of HVAC systems, from split to duct-free, can guide decision-making for building owners.

HVAC works by absorbing heat for cooling and utilizing heat pumps for warmth. Diagrams typically depict heaters, air conditioners, and a network of air ducts, breaking down components and connections. Exploring HVAC system diagrams can provide insights into how heating and cooling systems function within a building.

This guide delves into the essential parts and components of an HVAC system, offering a comprehensive overview for those seeking a deeper understanding of their building's HVAC infrastructure.

Understanding Hvac Systems

Basic Principles Of Hvac

HVAC system design involves calculating heat loss and gain, selecting equipment, and designing duct runs. The Air Conditioning Contractors of America (ACCA) provides technical manuals for each step in the design process.

In practice, designers rely on ACCA Manual J for load calculations, Manual D for duct design, and Manual S for equipment selection. These standards ensure the system matches the building's specific requirements. For a deeper dive into equipment selection, see our guide on choosing the right air conditioner.

Types Of Hvac Systems

There are four main types of HVAC systems: split systems, hybrid systems, duct-free systems, and packaged heating and air systems. Understanding the pros and cons of each type can help in deciding which system best suits your needs.

HVAC System Diagram Symbols and Legend

HVAC diagrams use standardized symbols to represent equipment, ductwork, controls, and piping. Familiarity with these symbols — such as circles for supply diffusers, squares for return grilles, and specific shapes for coils, fans, and dampers — is essential for accurate interpretation. A legend typically accompanies the diagram, defining each symbol and line type (e.g., solid for supply ducts, dashed for return). Referencing the legend before analyzing the layout prevents misreading the system's airflow paths and control sequences.

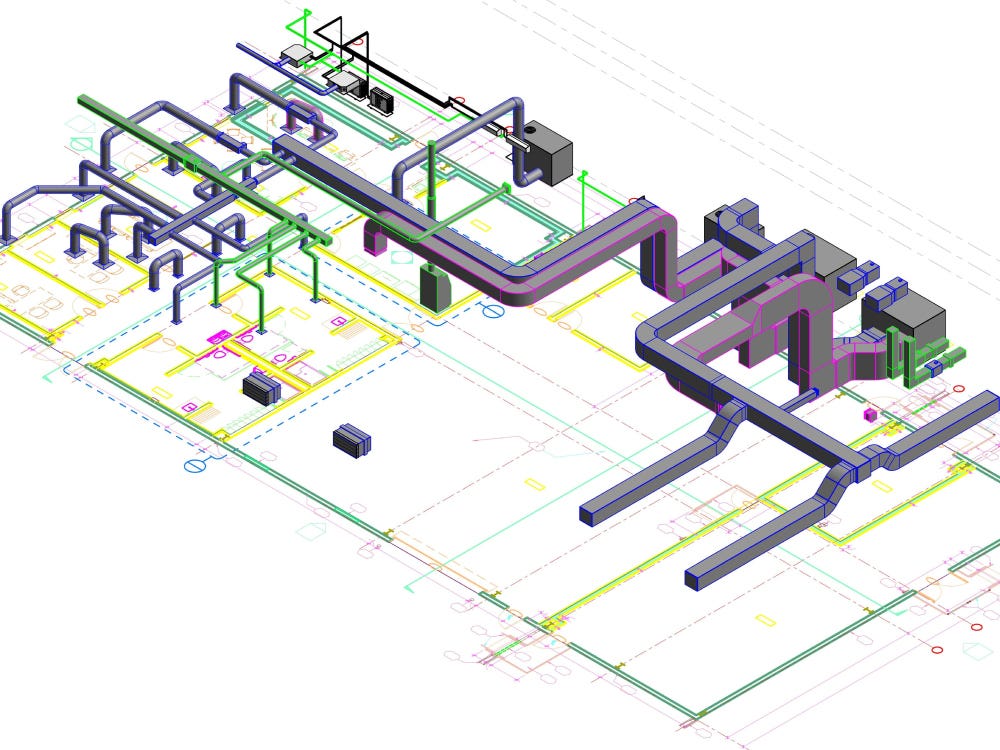

Schematic diagram of a building HVAC system showing components and airflow

Diagram illustrating typical HVAC system components and airflow paths.

Credit: medium.com

Designing An Efficient Hvac System

Calculating Heat Loss And Gain

One crucial step in designing an HVAC system is calculating heat loss and gain. This process involves determining how much heat the building gains or loses based on factors like insulation and size.

Accurate load calculations follow ACCA Manual J, accounting for climate zone, orientation, window performance, infiltration, and internal gains. Oversizing leads to short-cycling and humidity issues; undersizing fails to maintain comfort. Many contractors now use software that automates Manual J while allowing manual verification of key inputs.

Selecting Equipment

Choosing the right equipment is essential for an efficient HVAC system. Factors such as the size of the building, climate, and energy efficiency ratings play a role in selecting the appropriate equipment.

Look for SEER2 and HSPF2 ratings that meet or exceed current ENERGY STAR thresholds. In 2026, the minimum SEER2 for split systems in the northern U.S. is 13.4 and 14.3 in the south. Heat pumps with high HSPF2 provide efficient heating down to low ambient temperatures. Pairing equipment with a smart thermostat can further optimize runtime and energy use.

Designing Duct Runs

Efficient duct runs are vital for optimal airflow in an HVAC system. Properly designed ductwork ensures that air is distributed evenly throughout the building, minimizing energy waste.

Follow ACCA Manual D for sizing, layout, and balancing. Seal all joints with mastic or UL‑listed tape, insulate ducts in unconditioned spaces to R‑8 minimum, and keep runs as short and straight as possible. Pressure testing (duct leakage test) should be part of commissioning. For installation best practices, review our split system installation basics.

Components Of A Building Hvac System

When it comes to understanding the workings of a building HVAC system, it’s essential to have a clear grasp of its components. The HVAC system is a complex network of heating, ventilation, and air conditioning units designed to keep building occupants comfortable throughout the year. Each component plays a crucial role in regulating the indoor climate, making it essential to comprehend their functions individually.

Heater

The heater is an integral part of the HVAC system, responsible for generating warmth during colder months. It utilizes various methods such as gas, electric, or oil to produce heat. The distribution of heated air is managed through a network of ducts, ensuring even coverage throughout the building.

Air Conditioner

An air conditioner is designed to cool the air within the building. It works by absorbing heat from the indoor air and releasing it outside, resulting in a cooler indoor environment. The refrigerant in the system plays a vital role in the heat exchange process, facilitating the transformation of warm air into a more comfortable temperature.

HVAC Air Ducts

HVAC air ducts form the pathways for distributing conditioned air throughout the building. These ducts are essential for maintaining consistent airflow, ensuring that heated or cooled air reaches all areas of the building. Proper maintenance and insulation of these ducts are crucial in preserving energy efficiency and indoor air quality.

Ventilation and Indoor Air Quality Components

Modern HVAC systems often include dedicated ventilation equipment such as energy recovery ventilators (ERVs) or heat recovery ventilators (HRVs) to provide fresh air while recovering energy from exhaust. High‑efficiency filters (MERV 13+), UV‑C lights, and humidity control modules further enhance indoor air quality. These components are shown on the diagram with distinct symbols and should be integrated into the control sequence for balanced operation.

HVAC plan layout with ductwork, equipment, and zoning details

HVAC plan showing zoning, duct routing, and equipment placement.

Credit: www.edrawsoft.com

Working Mechanism Of Hvac System

The building HVAC system diagram showcases its intricate network of components such as heaters, air conditioners, and HVAC air ducts. A heat pump extracts heat from outside air to warm indoor spaces while refrigerant absorbs and expels heat for cooling.

Understanding these parts and their connections is vital for system maintenance and efficiency.

Cooling Process

The cooling process is an essential component of the HVAC system. It works by absorbing heat from the indoor air and expelling it outside, resulting in cooler air inside the building. Here's a breakdown of how the cooling process works:

  1. Air handler: The air handler is responsible for circulating the air throughout the building. It draws in warm air from the space through return ducts and passes it over the evaporator coil.

  2. Evaporator coil: The evaporator coil contains a refrigerant that absorbs heat from the air. As the warm air passes over the coil, the refrigerant evaporates, cooling the air in the process.

  3. Thermal expansion valve: The thermal expansion valve regulates the flow of refrigerant into the evaporator coil. It ensures that the right amount of refrigerant enters the coil for optimal cooling efficiency.

  4. Ducts: Once the air is cooled, it is distributed back into the space through a system of ducts. These ducts carry the cooled air to different areas of the building, providing a comfortable indoor environment.

Heating Process

In addition to cooling, the HVAC system also includes a heating process to keep the building warm during colder months. Here's how the heating process works:

  1. Heat exchanger: The heat exchanger is a crucial component for heating. It transfers heat from a fuel source, such as natural gas or electricity, to the air that will be circulated throughout the building.

  2. Condenser: The condenser is responsible for releasing the heat created from the combustion process. It helps convert the heated refrigerant from a high-pressure gas to a liquid form.

  3. Ducts: Similar to the cooling process, the heated air is distributed throughout the building using a system of ducts. These ducts carry the warm air from the heat exchanger to different areas, ensuring a comfortable and cozy indoor environment.

By understanding the working mechanism of the HVAC system, you can better appreciate how it maintains a comfortable indoor climate throughout the year.

Refrigerant Types and Environmental Considerations

Most residential systems today use R‑410A, but the industry is transitioning to lower‑GWP refrigerants like R‑32 and R‑454B to comply with AIM Act phasedown schedules. When reading a diagram, note the refrigerant type listed on the equipment nameplate; it affects service procedures, charge amounts, and leak detection requirements. Always follow EPA Section 608 guidelines for handling and recovery.

Analyzing Hvac System Diagram

Analyzing HVAC System Diagram

When it comes to understanding the complex workings of a building HVAC system, analyzing the HVAC system diagram is crucial. The diagram provides a visual representation of how all the components of the system are connected and work together to ensure optimal heating and cooling. In this section, we will break down the heating and cooling units and examine the connections of the various parts.

Breakdown Of Heating And Cooling Units

In a typical HVAC system diagram, you will find a heater and an air conditioner as the main heating and cooling units. These units play a critical role in maintaining comfortable indoor temperatures throughout the year.

The heater is responsible for producing warm air during colder months. It draws in cold outside air, which passes over colder refrigerant, absorbing heat and increasing the temperature. This warm air is then circulated throughout the building to provide a cozy environment.

On the other hand, the air conditioner is used to cool the air during warmer months. It absorbs heat from the indoor air, transferring it to the refrigerant, which is then expelled out of the building. This process creates a cooling effect, ensuring a comfortable indoor temperature.

Connection Of Parts

An HVAC system diagram includes a complete breakdown of various parts and their connections. Understanding the connections is crucial to comprehend how the system operates as a whole.

A detailed diagram will highlight the individual components of the heating and cooling units, such as the air handler, evaporator, heat exchanger, thermal expansion valve, condenser, and ducts. These parts work in harmony to ensure efficient heating and cooling throughout the building.

For example, the air handler is responsible for circulating the heated or cooled air, while the evaporator plays a vital role in absorbing heat from the surrounding air. The thermal expansion valve regulates the flow of refrigerant, ensuring optimum cooling. The heat exchanger transfers heat between two mediums, and the condenser expels heat out of the system.

All these parts are interconnected through a complex system of HVAC air ducts. These ducts distribute the heated or cooled air throughout the building, ensuring that every room receives the desired temperature.

By analyzing the HVAC system diagram and understanding the connections between the parts, you can gain valuable insights into the overall functionality of the system. This knowledge can be useful for troubleshooting any issues that may arise and ensuring the proper maintenance of the HVAC system.

Step-by-Step Guide to Reading an HVAC Diagram

  1. Locate the legend – Identify symbols for equipment, duct types, dampers, sensors, and control wiring.
  2. Trace the airflow – Follow supply ducts from the air handler to diffusers, then return ducts back to the unit.
  3. Identify control sequences – Look for thermostat locations, zone damper actuators, and safety switches (high‑pressure, low‑pressure, freeze stat).
  4. Note refrigerant piping – Distinguish liquid line, suction line, and any hot‑gas bypass or heat‑reclaim lines.
  5. Verify equipment tags – Match each unit tag to the schedule for model, capacity, and electrical data.

Common Mistakes When Interpreting Diagrams

  • Confusing supply and return duct symbols (often differentiated by line weight or arrow direction).
  • Overlooking balancing dampers and assuming all branches deliver design airflow.
  • Missing auxiliary heat strips or reheat coils shown in a separate detail.
  • Ignoring control wiring diagrams that dictate staging, defrost, and economizer logic.

Exploded view of HVAC system components including heater, air conditioner, and duct connections

Exploded view showing component relationships and refrigerant/airflow paths.

Credit: www.amazon.com

Comparison of HVAC System Types

System Type Typical Application Pros Cons
Split System Single‑family homes, small commercial Widely available, separate indoor/outdoor units, flexible placement Requires ductwork, outdoor unit noise
Hybrid (Dual‑Fuel) Cold climates with gas availability Optimizes cost by switching between heat pump and furnace Higher upfront cost, complex controls
Duct‑Free (Mini‑Split) Retrofits, additions, zoning No ducts, individual zone control, high efficiency Visible indoor heads, higher per‑ton cost
Packaged Unit Light commercial, rooftop installations All components in one cabinet, easy maintenance Limited capacity range, roof penetration required

Choosing among these types depends on building layout, climate, budget, and whether existing ductwork can be reused. For a detailed comparison of residential options, see our article on the best HVAC systems for residential use.

Frequently Asked Questions For Building Hvac System Diagram

How To Design A Hvac System For A Building?

To design a HVAC system for a building, follow these steps: calculate heat loss and gain, select equipment, and design duct runs. Refer to technical manuals provided by the ACCA for guidance. Choose from split, hybrid, duct-free, or packaged HVAC systems based on your needs.

What Are The Four 4 Main Types Of Hvac Systems?

The four main types of HVAC systems are split systems, hybrid systems, duct-free systems, and packaged heating and air systems. Each type has its benefits and drawbacks, so understanding these factors can help you choose the best option.

How Does A Building Hvac System Work?

A building HVAC system works by circulating air through heating and cooling units, like an air conditioner and heater. The refrigerant absorbs heat to cool the air and expels it outside. To warm the air, a heat pump draws cold outside air over refrigerant, which then heats coils.

What Are The Parts Of An Hvac System Diagram?

An HVAC system diagram typically includes a heater, an air conditioner, and a network of HVAC air ducts. It breaks down each heating and cooling unit into its important components and explains how these parts are interconnected.

What Is The Difference Between A Heat Pump And A Furnace In An HVAC Diagram?

A heat pump provides both heating and cooling by reversing refrigerant flow, while a furnace only generates heat (usually via combustion). On diagrams, a heat pump shows a reversing valve and outdoor coil; a furnace shows a heat exchanger, burner assembly, and flue.

How Often Should HVAC Diagrams Be Updated?

Update diagrams whenever equipment is replaced, ductwork is modified, zoning changes, or control sequences are revised. As‑built drawings should be maintained for the life of the building to aid future service and renovations.

Conclusion

In today's blog post, we have explored the essential aspects of building an HVAC system diagram, from its components to the design process. Understanding the types of HVAC units and how the system functions is crucial for efficient heating and cooling.

With this knowledge, you can make informed decisions about your building's HVAC system. Consider reaching out to professionals for detailed guidance and support in creating the most suitable system for your needs. Ready to optimize your system? Explore our central air installation overview for next steps.
