Master your Fujitsu air conditioner with ease using these simplified remote instructions. From setting precise temperatures to activating energy-saving modes, every button and function is clearly explained for instant, frustration-free control. No tech expertise needed—just straightforward guidance to keep your space perfectly cool.

Key Takeaways

• Master the power button: Press once to toggle the unit on or off instantly.
• Set temperature easily: Use up/down arrows to adjust cooling or heating levels.
• Switch modes effortlessly: Tap the mode button to toggle between cool, heat, dry, or fan.
• Optimize airflow direction: Press swing to adjust louvers for even air distribution.
• Use timer for efficiency: Schedule on/off times to save energy and maintain comfort.
• Check eco mode: Enable it to reduce power consumption without sacrificing performance.
• Replace batteries promptly: Weak batteries cause unresponsive controls—swap them monthly.

Getting Started with Your Fujitsu Air Conditioner Remote

So, you’ve just brought home a Fujitsu air conditioner—great choice! These units are known for their reliability, energy efficiency, and quiet operation. But when it comes to the remote control, things can get a little confusing at first. Maybe you’re staring at a dozen buttons, wondering what half of them do, or you’ve accidentally switched to a mode that feels like a sauna instead of a cool breeze.

Trust me, you’re not alone. I remember the first time I used a Fujitsu remote. I thought I was setting it to “cool,” but instead, it started blowing warm air—turns out, I had accidentally hit “heat” mode. (Yes, Fujitsu ACs often double as heaters, which is handy in winter but confusing in summer!) The good news? Once you understand the basics, the Fujitsu air conditioner remote becomes your best friend in climate control. It’s like having a personal weather station right in your living room. In this guide, I’ll walk you through everything step by step—no tech degree required.

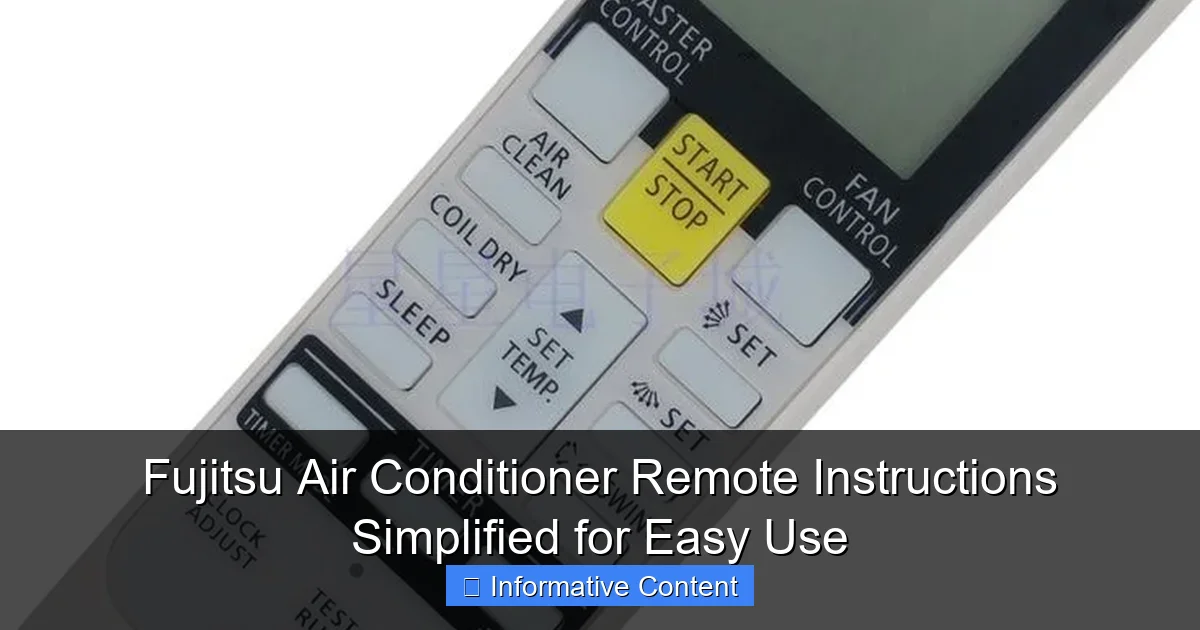

Understanding the Fujitsu Remote Layout and Buttons

The Fujitsu air conditioner remote might look complex at first glance, but once you break it down, it’s actually quite intuitive. Most models—like the AR-FA1U, AR-RC1U, or AR-BC1U—follow a similar design. Let’s take a closer look at the key buttons and what they do.

Main Control Buttons

• Power (ON/OFF): Simple enough. Press once to turn the unit on, again to turn it off. A red light usually indicates it’s on.
• Mode: Cycles through operating modes: Auto, Cool, Dry, Fan, and Heat. Press repeatedly until you reach your desired setting.
• Temperature Up/Down (±): Adjusts the target temperature in 1°C increments. Most units range from 16°C to 30°C (60°F–86°F).
• Fan Speed: Lets you choose between Auto, Low, Medium, High, and sometimes Quiet or Turbo.
• Swing: Controls the vertical or horizontal louvers. Great for directing airflow where you want it.

Advanced Features and Hidden Gems

• Timer: Set the AC to turn on or off automatically. Useful for pre-cooling your room before you get home or shutting it off after you fall asleep.
• Sleep Mode: Gradually adjusts temperature over a few hours to save energy and keep you comfortable while sleeping.
• i-see Sensor (on select models): Detects room occupancy and adjusts airflow and temperature accordingly. It’s like the AC “knows” where you are.
• Economy (Eco) Mode: Reduces power consumption by slightly adjusting performance. Ideal for long-term use.
• Filter Reset: A reminder to clean or replace the air filter. Usually a small icon lights up after 2,500 hours of use.

Pro Tip: If you’re using a model with an LCD screen, the display will often show the current mode, temperature, and fan speed. If it’s blank, try replacing the batteries—sometimes that’s all it needs!

Remote Placement and Signal Tips

Even the best remote won’t work if it can’t “talk” to your unit. Here’s how to ensure reliable communication:

• Point the remote directly at the indoor unit’s sensor (usually on the front panel).
• Keep the remote within 5–7 meters (16–23 feet) of the AC. Thick walls or metal objects can block the signal.
• Avoid using the remote near strong light sources (like direct sunlight or fluorescent lamps), which can interfere with the infrared signal.

I once had a remote that wouldn’t work unless I stood in a specific spot in the room. Turns out, there was a large mirror reflecting the infrared signal. Once I moved the mirror, problem solved!

Step-by-Step Guide to Setting Up and Using the Remote

Let’s walk through a real-life scenario: you want to cool your living room down to 22°C with a gentle breeze, and you’d like the AC to turn off automatically in 4 hours. Here’s how to do it using your Fujitsu air conditioner remote.

Step 1: Power On and Select Mode

Press the Power button. The unit will beep and the display will light up. Now, press the Mode button until “Cool” appears on the screen. If you’re in a hot climate and want maximum cooling, “Cool” is your go-to. For slightly humid days, “Dry” mode removes moisture without overcooling.

Step 2: Set Your Desired Temperature

Use the Temperature Up/Down buttons to set the temperature to 22°C. The unit will start cooling once the room temperature is above 22°C. If it’s already cooler, the compressor may not kick in immediately—that’s normal.

Step 3: Adjust Fan Speed and Airflow

Press the Fan Speed button to select “Medium” or “Low” for a quiet, steady breeze. If you want faster cooling, go for “High” or “Turbo.” Then, press the Swing button to enable horizontal or vertical airflow. I like to set it to “Auto Swing” so the air circulates evenly across the room.

Step 4: Set the Timer (Optional)

Press the Timer button. Use the Up/Down buttons to set the number of hours (e.g., 4). The AC will automatically shut off after that time. To set a delayed start, hold the Timer button for a few seconds until the “On” timer appears.

Example: You’re going out for dinner at 6 PM but want the room cool by 8 PM. Set the “On” timer for 7:30 PM, and the AC will turn on half an hour before you return.

Step 5: Enable Sleep or Eco Mode (Optional)

For nighttime use, press the Sleep button. The AC will raise the temperature by 1°C after one hour and another 1°C after two hours—perfect for staying comfortable without freezing. If energy savings are a priority, press the Eco button to reduce power usage.

Bonus: Using the i-see Sensor (If Available)

On models with the i-see sensor, press the “i-see” button to activate it. The AC will scan the room and adjust airflow based on where you’re sitting. It’s especially helpful in large rooms where one area might be warmer than another.

I used this feature during a heatwave when my cat kept blocking the airflow. The AC automatically shifted the louver direction—problem solved!

Troubleshooting Common Remote Issues

Even the best remotes can act up. Here are the most common problems and how to fix them—without calling a technician.

Remote Not Responding

• Check the batteries: Weak batteries are the #1 culprit. Replace them with fresh AAA batteries.
• Clean the sensor: Dust or grime on the infrared sensor (on the front of the remote) can block signals. Wipe it gently with a soft cloth.
• Reset the remote: Remove the batteries, press and hold the Power button for 10 seconds, then reinsert the batteries. This often clears glitches.

AC Turns On But Doesn’t Cool

• Make sure you’re in Cool mode, not Fan or Dry.
• Check the temperature setting—it might be higher than the room temperature.
• Ensure the outdoor unit is running. If it’s silent, the compressor may be in a delay cycle (common after power outages).

Buttons Feel Stiff or Unresponsive

This usually means the remote is dirty. Open the battery cover and use a cotton swab with a tiny bit of isopropyl alcohol to clean around the buttons. Avoid water—it can damage internal circuits.

Display Shows Error Codes

Some Fujitsu models display error codes (like “E1,” “E5,” or “P1”) on the remote. These indicate issues like refrigerant leaks, sensor faults, or drainage problems. While minor codes (e.g., “F1” for dirty filter) can be resolved at home, others require professional help.

Tip: Take a photo of the code and check the user manual or Fujitsu’s website for specific solutions.

Remote Lost or Damaged

If your remote goes missing, don’t panic. You can:

• Use the manual control panel on the indoor unit (usually hidden behind the front cover).
• Download the Fujitsu Smart App (available for iOS and Android) if your model supports Wi-Fi.
• Order a replacement remote from Fujitsu’s official website or authorized dealers. Make sure it matches your model number.

Optimizing Comfort and Energy Efficiency

Using your Fujitsu air conditioner remote isn’t just about turning it on and off. With a few smart settings, you can stay comfortable while saving energy and money.

Smart Temperature Settings

• Summer: Set to 24–26°C (75–78°F). Every degree below 24°C increases energy use by about 6–8%.
• Winter (Heat mode): Aim for 20–22°C (68–72°F). Lower settings with a blanket are more efficient than cranking the heat.
• Sleep mode: Use it nightly. It reduces energy use by up to 20% compared to running the AC at a fixed temperature.

Fan Speed and Airflow Tips

• Use “Auto” fan speed for balanced comfort and efficiency.
• In “Dry” mode, set fan speed to “Low” or “Auto” to maximize dehumidification.
• Enable louver swing to prevent hot or cold spots in the room.

Using Timers Strategically

Timers are your secret weapon for efficiency:

• Set the “On” timer to start 30 minutes before you wake up or return home.
• Use the “Off” timer to shut down the AC after a few hours—especially useful if you tend to forget to turn it off.
• For vacations, set the AC to “Dry” mode at 26°C with a timer. This prevents mold without wasting energy.

Maintenance Reminders

• Clean the air filter every 2 weeks during heavy use. A dirty filter forces the AC to work harder, increasing energy use and wear.
• Check the filter reset indicator on the remote. When it lights up, clean the filter and press the “Filter Reset” button (usually near the timer).
• Schedule a professional check-up once a year to ensure refrigerant levels and electrical connections are safe.

Fujitsu Remote Models Compared: A Quick Reference

Not all Fujitsu remotes are the same. Here’s a comparison of the most common models to help you understand which features you have—or might want to upgrade to.

Model	Display	Wi-Fi/App Support	i-see Sensor	Timer	Sleep Mode	Eco Mode
AR-FA1U	LCD	No	Yes	On/Off	Yes	Yes
AR-RC1U	LED	No	No	On/Off	Yes	Yes
AR-BC1U	LCD	Yes (with gateway)	Yes	On/Off	Yes	Yes
AR-RE1U	OLED	Yes (Wi-Fi built-in)	Yes	On/Off + Weekly	Yes	Yes

Note: Wi-Fi-enabled remotes (like the AR-BC1U and AR-RE1U) let you control your AC from your phone. The AR-RE1U is the most advanced, with weekly scheduling and voice assistant compatibility.

Which one do I recommend? If you’re tech-savvy or want remote access, go for the AR-RE1U. For basic use, the AR-FA1U offers great value with the i-see sensor. If you’re on a budget, the AR-RC1U still covers all essential functions.

Final Thoughts: Mastering Your Fujitsu Remote

Using a Fujitsu air conditioner remote doesn’t have to be a guessing game. Once you understand the buttons, modes, and smart features, it becomes a powerful tool for comfort and efficiency. Whether you’re cooling a bedroom, heating a home office, or just trying to survive a humid summer night, the right settings make all the difference.

Remember: small adjustments lead to big savings. A 1°C change in temperature, a well-placed timer, or a clean filter can reduce your energy bill and extend your AC’s lifespan. And if you ever feel overwhelmed, just refer back to this guide. Think of it as your personal cheat sheet for Fujitsu air conditioner remote instructions.

Over time, you’ll develop your own routines—like setting the AC to 23°C with “Auto” fan and “Sleep” mode every night, or using the i-see sensor to follow you from couch to kitchen. These habits aren’t just about comfort; they’re about living smarter.

So go ahead—grab your remote, press a few buttons, and take control of your indoor climate. You’ve got this. And if you ever hit a snag? You now have the knowledge to fix it—no tech support needed.

Frequently Asked Questions

How do I turn on my Fujitsu air conditioner using the remote?

Press the “Power” button (usually marked with a circle) on your Fujitsu air conditioner remote to turn the unit on or off. Ensure you’re within 20 feet of the indoor unit for the signal to work properly.

What do the mode symbols (Cool, Heat, Dry, Fan) mean in the Fujitsu remote instructions?

The mode symbols determine the function: Cool lowers temperature, Heat warms the room, Dry reduces humidity, and Fan circulates air without cooling. Select your desired mode using the “Mode” button on the remote.

How do I set the timer on my Fujitsu air conditioner remote?

Press the “Timer” button and use the arrow keys to set the desired start or stop time. The timer helps automate operation, saving energy when you’re away or asleep.

Why isn’t my Fujitsu air conditioner responding to the remote?

Check if the remote has fresh batteries and is pointed at the indoor unit. Also, ensure no obstructions block the signal and that the remote is within the 20-foot range specified in the Fujitsu air conditioner remote instructions.

How do I adjust the fan speed using the Fujitsu remote?

Press the “Fan Speed” button to cycle through Low, Medium, High, or Auto settings. Auto mode automatically adjusts speed based on the room’s temperature for optimal comfort.

Can I control my Fujitsu air conditioner remotely when I’m not home?

Yes, if your model supports Wi-Fi and is connected to the Fujitsu Smart App. Download the app, pair your AC, and follow the Fujitsu air conditioner remote instructions to adjust settings from anywhere.
